HP3523 Cold Water Pressure Cleaner (Electric Motor) - 23LPM

SKU: SCW86

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

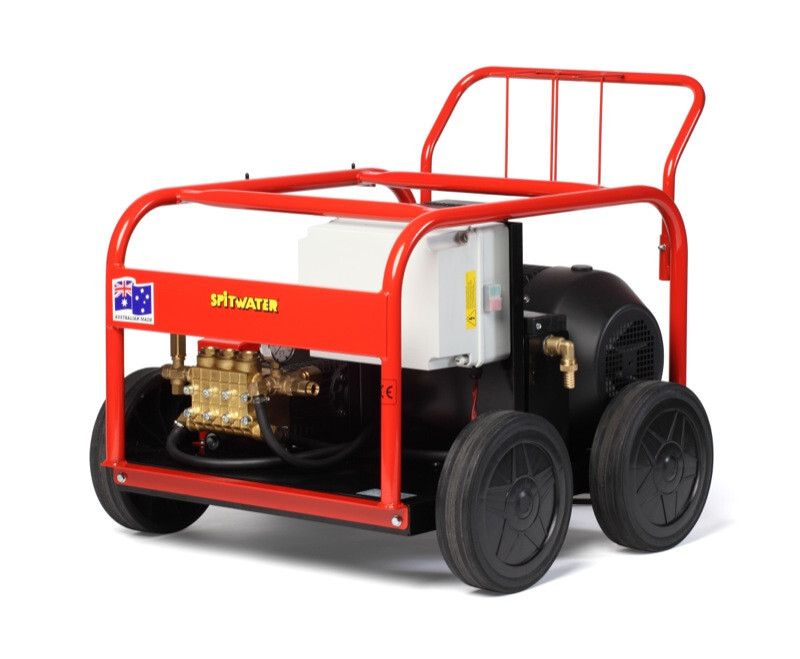

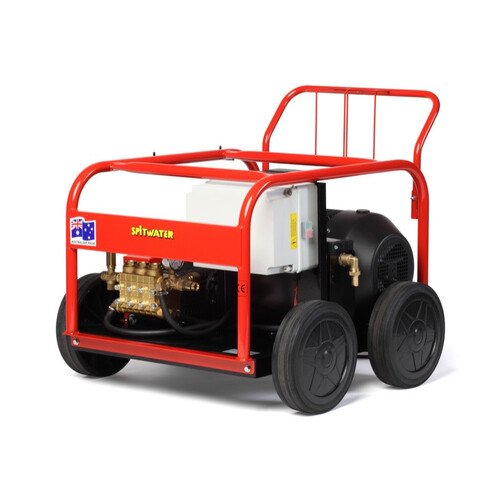

HP3523 PRESSURE CLEANER



Description:

  • The SPITWATER HP3523 is a heavy-duty Industrial Electric cold water pressure cleaner which has a diverse range of applications in several industries including mining, earthmoving, heavy vehicle cleaning, and transport depots.
  • Frequently used in the mining industry, the 20HP, 415V electric motor has an operating pump pressure of 5000PSI400BAR and a flow rate of 23 litres per minute.
  • The low-speed W3523 Interpump pump has a speed of 1450RPM and a non-corrosive brass pump head with stainless steel valves and ceramic pistons for a longer pump life.
  • The added feature of a 100% bypass into cooling tank reduces potential damage to the pump from overheating. Other features include a star delta switch gear, a pressure gauge which easily monitors pump performance, a washable inlet filter which stops debris from scoring pistons and seals and a low level water cut off which prevents the pump from running dry.
  • Included accessories are a 10m 3/8” dual wire braided high pressure hose rated to 400 BAR and a Heavy Duty Gun & Back Part Lance
  • Please note: This machine requires a 3 Phase 32 AMP Plug.

Features:

  • Fully Serviceable
  • Genuine Italian-made Interpump Pump
  • Non-corrosive Brass Head Pump with Stainless Steel Valves and Ceramic Pistons
  • Pressure Gauge
  • Belt Drive
  • Low Speed 1450 RPM Pump
  • Powder Coated Zinc Annealed Chassis with Roll Frame
  • Never-flat Solid Wheels
  • Electric Start
  • Low Level Water Cut Off
  • Washable Inset Water Filter
  • Safety Overload Valve
  • Star Delta Switch Gear
  • Australian Made

Technical Specifications:

 Model:   HP3523
 Item Code:   SCW86
 Power Type:  30+ AMP (3 Phase)
 Temperature:   Cold Water
 Pump Pressure:  5000 PSI (350 BAR)
 Interpump Pump:        W3523
 Pump Speed:  1450
 Flow Rate:  23 L/Min
 Motor:  Electric Motor / 20.00 HP / 415 V
 Dimensions:  1030x850x880 mm
 Weight:   201.00 KG

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(SCW86)

SKU SCW86
Brand Spitwater
Shipping Weight 258.0000kg
Shipping Width 0.900m
Shipping Height 0.900m
Shipping Length 0.900m
Shipping Cubic 0.728000000m3
