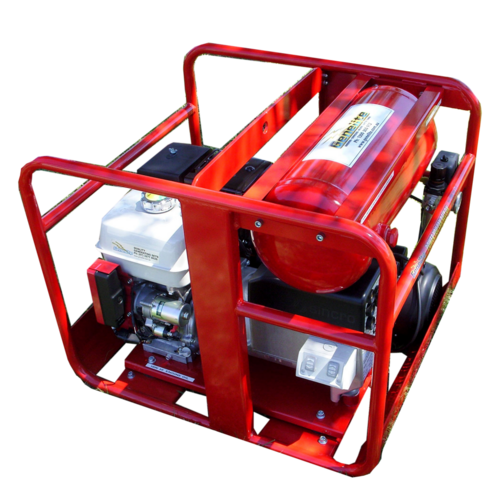

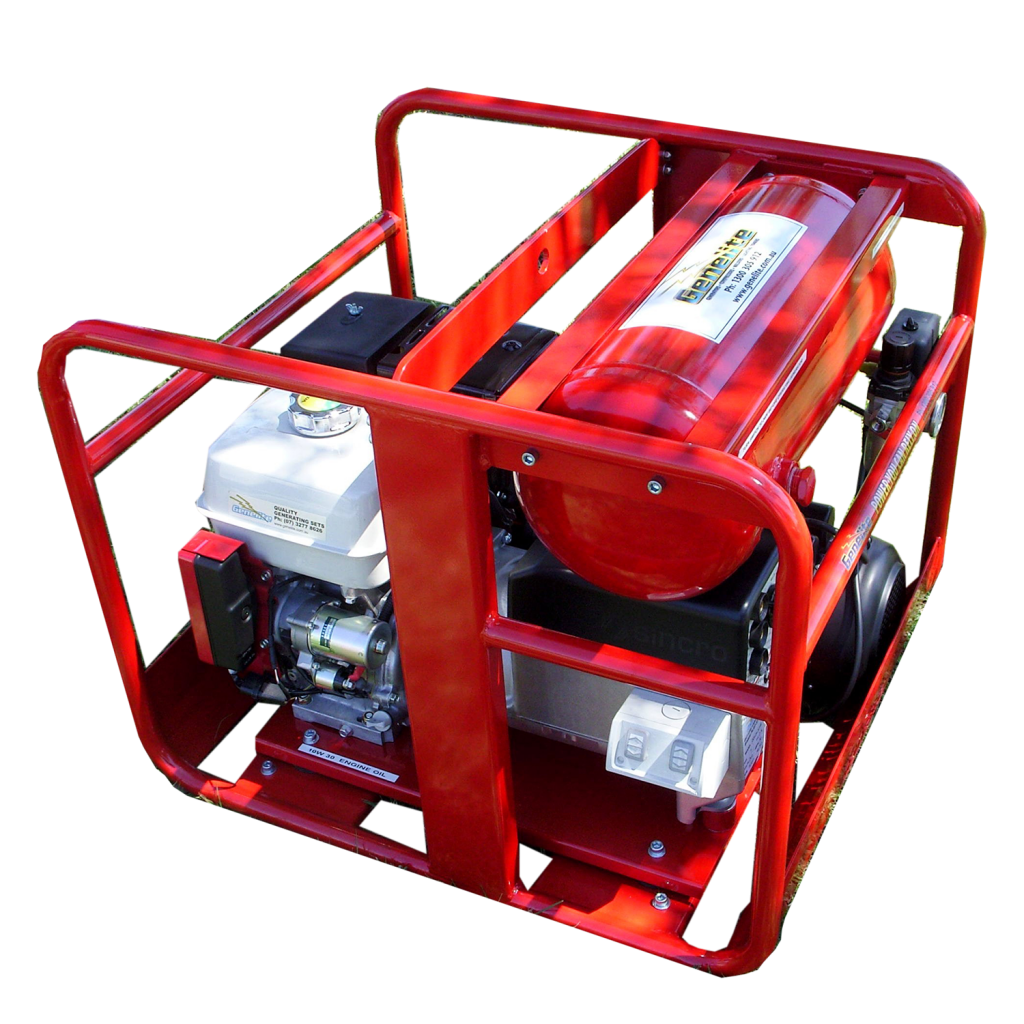

Yanmar 4 in 1 Workstation (Diesel) - 7.0kVA/5.6kw

SKU: GYDWS180E-HD

POA

Share:
  • Dispatch in: 1-2 days


Calculate Shipping

Product Description

Yanmar Diesel Workstation

Features:

  • 180amp Welder
  • 6.5kVA Generator
  • 7CFM Compressor
  • 10amp Battery Charger

Model: GYDWS180EHD

  • Type: Portable
  • Speed: 3000 RPM
  • Phase/Voltage: 1/240
  • Frequency: 50 Hz
  • Power kVA / kW: 6.5kVA / 5.2kW
  • Welder Duty Cycle 60%: 180 amp AC
  • Strike Voltage: 75 V
  • Compressor: 218 LPM / 3 Hp
  • Compressor Tank Size: 27-29 litres
  • Battery Charger: 12 VDC 10 amp

Engine:

  • Manufacturer: Yanmar
  • Engine Model: L100
  • Starting: Electric and Recoil start
  • Fuel: Diesel
  • Run Time: 3.3 hrs
  • Consumption: 1.75 L/h
  • Tank Capacity: 5.5 L
  • HP 3000 rpm: 8.8
  • Cubic Capacity: 406 cm3
  • Oil Capacity 1.65 L

Alternator:

  • Alternator Brand: Sincro
  • Type: Brushless
  • Harmonic Distortion: Less than 5%
  • Protection Class  IP 23
  • Insulation Class: Class H

Dimensions and Weight:

  • Length: 96 m
  • Width: 70 cm
  • Height: 70 Cm
  • Weight: 130 Kg

Accessories:

  • Outlet: 10amp + 15amp switched with thermal overload
  • Leads: 5m welding leads with hand piece & earth clamp

Options:

  • Outlets: Weather protected IP33 & Weatherproof IP66
  • Protection: RCD/ELCB IP30 or IP66
  • Wheel kits: Four-wheel
  • Long Range Tank: 15 Litre Capacity
  • Welding Leads: Extra Length
  • VRD: Welding Protection

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(GYDWS180E-HD)

SKU GYDWS180E-HD
Brand Yanmar
Shipping Weight 130.0000kg
Shipping Width 1.000m
Shipping Height 0.700m
Shipping Length 0.700m
Shipping Cubic 0.470400000m3
