Wide Load Pallet Hook (1.5t WLL) - 125 x 35 x 1200mm

SKU: CHM200

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

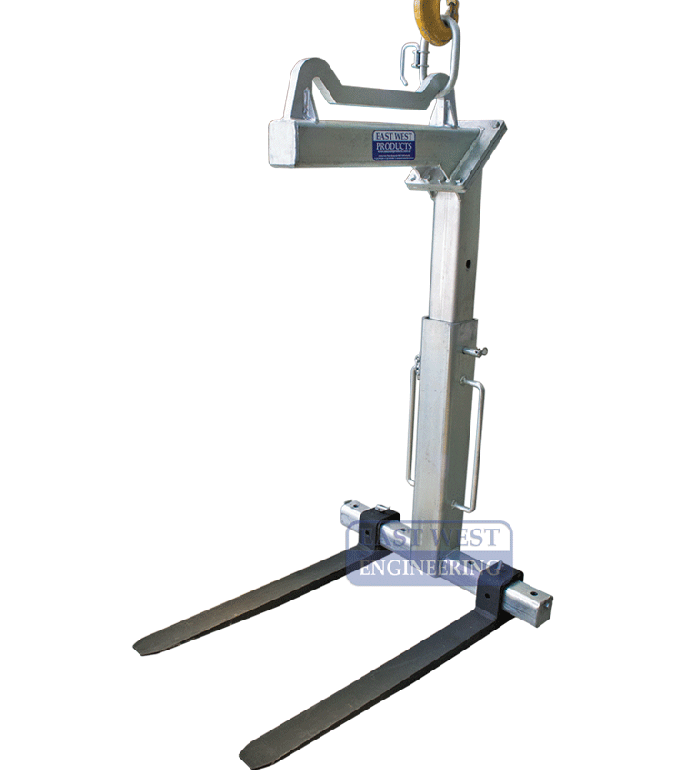

The CHM200 Adjustable Pallet Hook is designed and certified in accordance with Australian Standard AS 1418.1 to safely handle palletised goods when being lifted by overhead crane.

FEATURES:

  • Adjustable body height and fork tine width
  • Load is balanced by moving the lifting ring between the loaded or unloaded positions
  • Made with high tensile steel for maximum strength
  • Ideal for the transport and construction industry
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)     2000kg
 Load Centre  600mm
 Inside Clearance  1245 to 1845mm
 Clear Length Fork Tines  100 x 45 x 1055mm
 Unit Weight  242kg
 Fork Centre Spread  345, 625, 905mm

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CHM200)

SKU CHM200
Brand East West Engineering
Shipping Weight 300.0000kg
Shipping Width 1.250m
Shipping Height 0.600m
Shipping Length 1.200m
