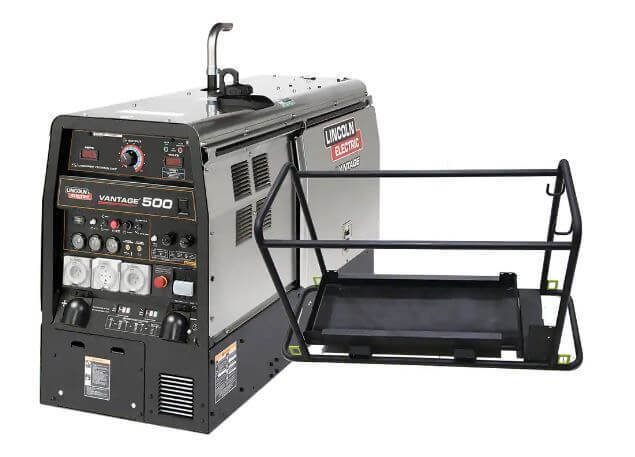

Lincoln Electric Vantage 500 Engine Driven Welder w/ Roll Frame & Spill Tray

SKU: K3615-1V-0001

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Lincoln Electric Vantage 500 Engine Driven Welder w/ Roll Frame & Spill Tray



Get a 500 amp welder in a compact case; it;s the same size as the Vantage® 300 and 400. The use of a turbo-charged diesel engine with Lincoln Electric Chopper Technology® makes this possible. Also, the low weight makes the Vantage 500 Compact a great choice for truck bed installation where space and weight capacity are limited.

  • Compact Case with Stainless Steel Enclosure
    • One of the most compact 500 amp machines available. Suitable for many pickup and service trucks (subject to vehicle capacity limits).
    • Standard stainless steel roof, side panels and engine-access door deliver added protection and durability.
  • Multi-Process Welding - Separate Arc Gouge Mode
    • Select one of five process modes, including CC-stick, downhill pipe (for stick), DC Touch Start TIG®, CV-wire or new arc gouging mode which maximizes output with up to 3/8 in. (9.5 mm) carbon rods.
  • Plenty of AC Generator Power
    • 22 kW peak (20 kW continuous) 3-phase 240V AC generator power. Will power industrial equipment such as a plasma cutter, pump or inverter welder.
    • 13 kW peak (12 kW continuous) 1-phase AC generator power for common construction tools.
  • Engine: 4 Cylinder 1800 RPM Turbo-Charged Perkins®
    • 4 cylinder 1800 RPM Perkins® turbo-charged diesel engine runs smooth and quiet. Standard engine gauges allow you to monitor performance at a glance.
    • More HP for output at high alititude than a naturally-aspirated engine.
  • Innovative Service Access
    • Lockable, removable sliding engine access door provides ample space for engine and oil filter work without requiring a large clearance space on your truck.
    • Battery drawer on front of machine and top-mounted radiator cover provide convenient access to these systems.
    • Patented tilt down control panel for easy servicing of internal components.
    • Patented radiator cap cover is latched for easy access and is lockable.

 ---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to you as soon as possible (often within the same day), with the best prices and shipping solutions available.

 Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(K3615-1V-0001)

SKU K3615-1V-0001
Brand Lincoln Electric
Shipping Weight 595.0000kg
Shipping Width 1.000m
Shipping Height 1.750m
Shipping Length 1.000m
