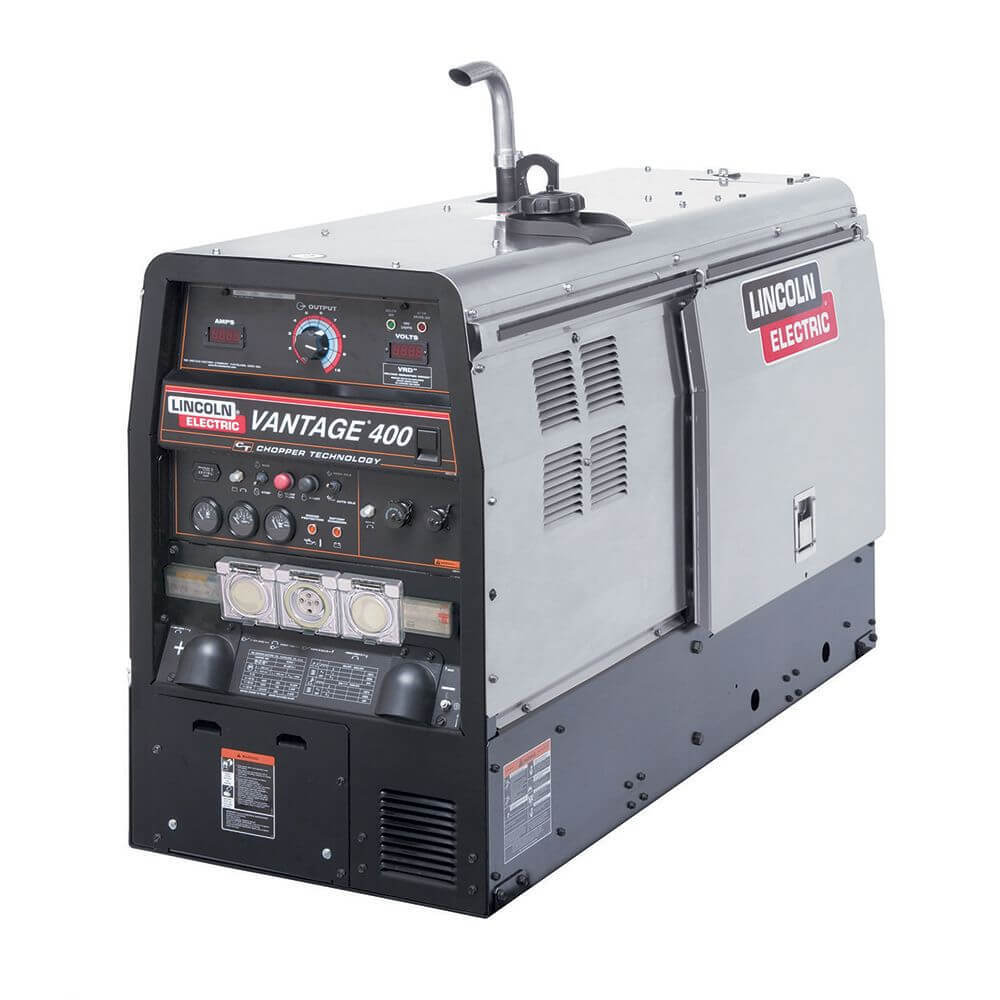

Lincoln Electric Vantage 400 Engine Driven Welder w/ Roll Frame & Spill Tray

Lincoln Electric Vantage 400 Engine Driven Welder w/ Roll Frame & Spill Tray


Top Features:

• Compact Case with Stainless Steel Enclosure
• Multi-Process Welding, Separate Arc Gouge Mode
• Plenty of AC Generator Power
• Industrial Diesel Engine - 4 cylinder 1500 RPM Perkins®
• Innovative Service Access

Processes

• Stick, TIG, MIG, Flux-Cored, Gouging


Compact, Multi-Process, Excellent Value

• The quiet, compact Vantage® 400 is an ideal choice for construction teams, pipe rig owners, and rental fleet managers Utilising a smooth running 4 cylinder Perkins® diesel engine.

Compact Case with Stainless Steel Enclosure

• One of the most compact 400 amp machines available. Suitable for many pickup and service trucks.

• Standard stainless steel roof, side panels, and engine-access door deliver added protection and durability.

Multi-Process Welding, Separate Arc Gouge Mode

• Select one of five Process Modes, including CC-Stick (up to 6mm.), Downhill Pipe (for stick), DC Touch Start TIG®, CV-Wire (up to 2.4mm), or Arc Gouging mode which maximizes output with up to 8mm carbon rods.

VRD Voltage Reduction Device

• Reduced OCV in CC and CV weld modes for added safety.

Plenty of AC Generator Power

• 13.2 kW continuous 3-Phase 415/240V AC generator power. Will power industrial equipment such as a plasma cutter, pump, or inverter welder.

• 1 x 415V 20A and 2 x 240V 15A receptacles for generator power for common construction tools.

Reliable Engine

• 4 cylinder 1500 RPM Perkins® diesel engines run smooth and quiet. Standard engine gauges allow you to monitor performance at a glance.

• 76 litre fuel tank for long run time.

Innovative Service Access

• Lockable, removable sliding engine access door provides ample space for engine and oil filter work without requiring a large clearance space on your truck.

• Battery drawer in front of the machine and top-mounted radiator cover provides convenient access to these systems.

• Patented tilt-down control panel for easy servicing of internal components.

• Patented radiator cap cover is latched for easy access and is lockable.

Low Noise

• 96 dBA Lwa sound power (71 dB at 7 m) – one of the quietest 400 amp engine-driven welders available

---
