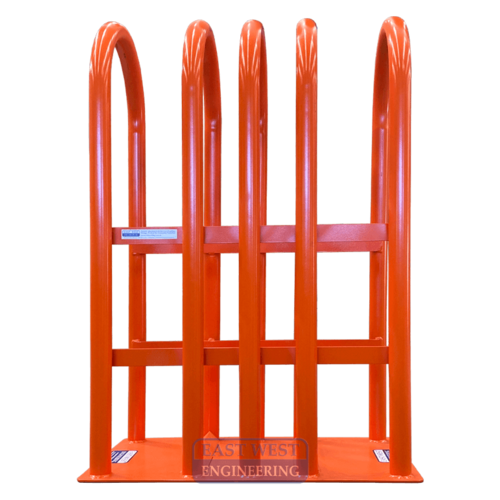

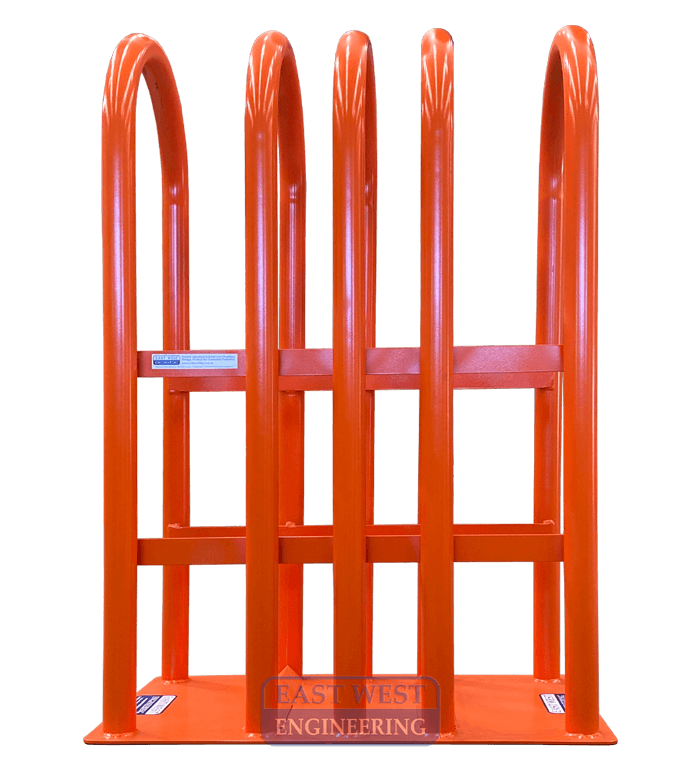

Tyre Inflation Enclosure - 950 x 580 x 1350mm

Current lead time is 2-3 weeks

SKU: STBC12

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The STBC12 Tyre Inflation Enclosure is designed for the safe inflation of tyres.  Working with tyres, particularly truck and machinery tyres, is dangerous because of their compressed air or gas, size and weight. The uncontrolled release of stored energy can have serious, even fatal consequences. When a tyre bursts or assemblies release, they can be propelled long distance at great speed. This 5-bar heavy duty enclosure is constructed to provide protection against the risk of injury to workers and damage to plant and structures caused by a tyre blast.

FEATURES:

  • Provides protection for personnel when inflating tyres
  • Prevents risk of injury and damage caused by tyre blast
  • Suits tyres sizes up to 1150mm diameter by 400mm wide
  • Heavy duty construction designed to withstand impact and force
  • Locating guides on base hold wheel in position
  • Five 60mm tube bars with reduced spacing in impact zone for strength
  • Finite Element Analysis confirms design is engineered to withstand the most severe blast
  • Designed and certified to relevant Australian standards
  • Enamel paint finish

Supplied as a fully assembled unit

SPECIFICATIONS:

 Maximum Tyre Size  1150(dia) x 400(w) mm
 Internal  Dimensions  404(w) x 1290(h) mm
 Overall Dimensions  950(l) x 580(w) x 1350(h) mm
 Unit Weight  85kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(STBC12)

SKU STBC12
Brand East West Engineering
Shipping Weight 250.0000kg
Shipping Width 1.200m
Shipping Height 1.650m
Shipping Length 0.800m
Shipping Cubic 1.584000000m3
