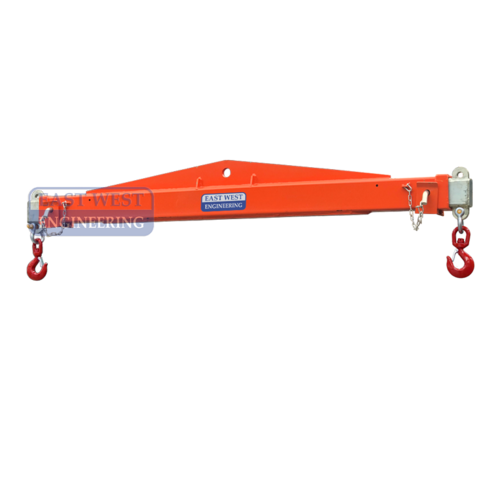

Truck Crane Spreader Beam (Med) - 10t

SKU: CEM2439

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The CEM2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.

FEATURES:

  • Multi-tasking spreader beam
  • Used as a 'Lifting Beam' by using the centre hook point
  • Used as a 'Spreader Beam' when using the end hooks with a 2 leg chain sling
  • Retaining saddle brackets supplied for storage on truck trays
  • Load connection points are adjustable to 3 positions
  • Safety pins used to securely lock extendable arm in position
  • Fitted with 2 safety swivel hooks
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

SPECIFICATIONS:

Rated Capacity (RC) Unit
              Weight
 When used as         Fully Retracted               Middle Position              Fully Extended       (kg)
    (LC@2380mm) (LC@3140mm) (LC@3900mm)
Length 2500mm  3260mm 4020mm
Lifting Beam 6000kg 4500kg  2400kg  218
        Spreader Beam        10,000kg 10,000kg 10,000kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CEM2439)

SKU CEM2439
Brand East West Engineering
Shipping Weight 218.0000kg
Shipping Width 0.280m
Shipping Height 0.390m
Shipping Length 2.500m
