Truck Crane Spreader Beam (Light) - 9t

SKU: CEL2439

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

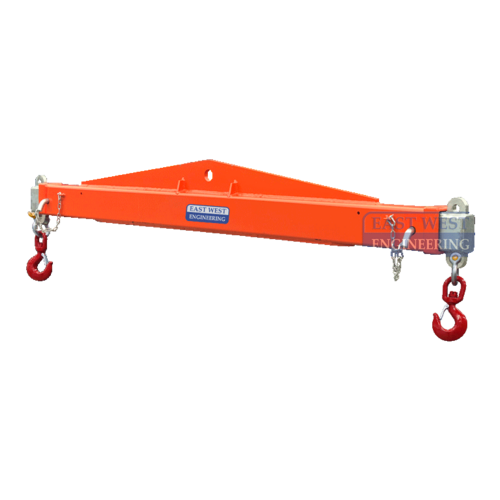

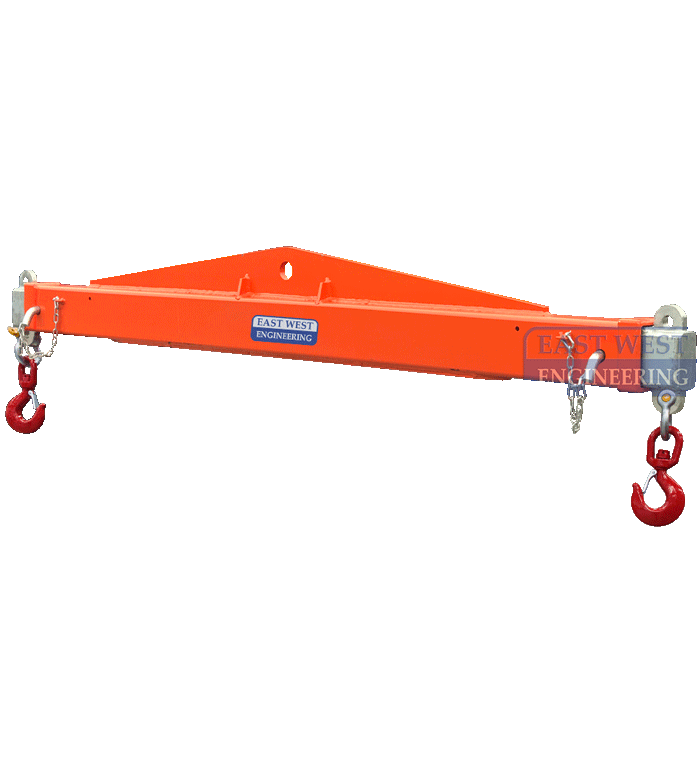

The CEL2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.

FEATURES:

  • Multi-tasking spreader beam
  • Used as a 'Lifting Beam' by using the centre hook point
  • Used as a 'Spreader Beam' when using the end hooks with a 2 leg chain sling
  • Retaining saddle brackets supplied for storage on truck trays
  • Load connection points are adjustable to 3 positions
  • Safety pins used to securely lock extendable arm in position
  • Fitted with 2 safety swivel hooks
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

SPECIFICATIONS:

        Model      Rated Capacity (RC)     Unit Weight (kg)
      CEL2439     when used as    Fully Retracted      Middle Position      Fully Extended
       (LC@2405mm)   (LC@3165mm)   (LC@3925mm)
           Length          2500mm        3260mm        4020mm                140
           Lifting Beam                4500kg        2500kg        1300kg
                               Spreader Beam             9000kg                  7200kg                 5600kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CEL2439)

SKU CEL2439
Brand East West Engineering
Shipping Weight 140.0000kg
Shipping Width 0.210m
Shipping Height 0.350m
Shipping Length 2.500m
