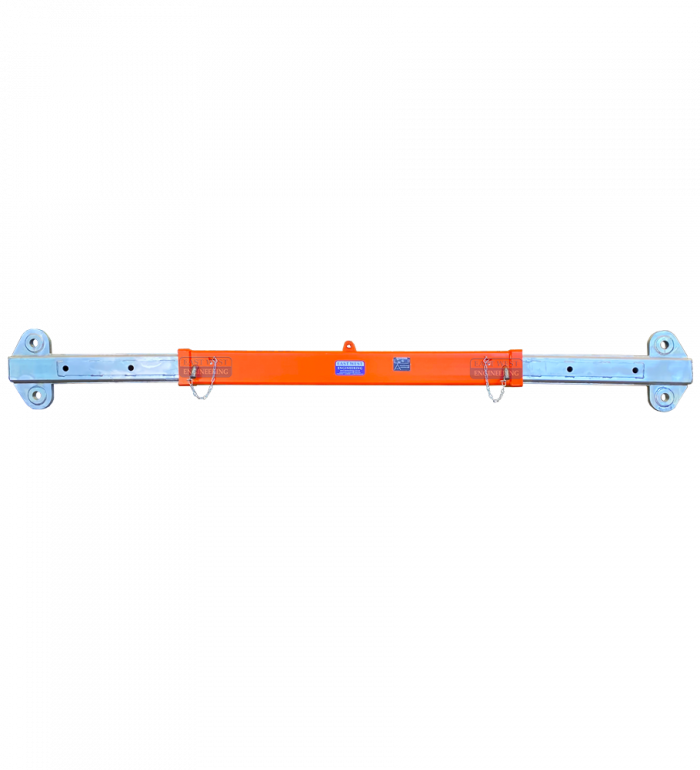

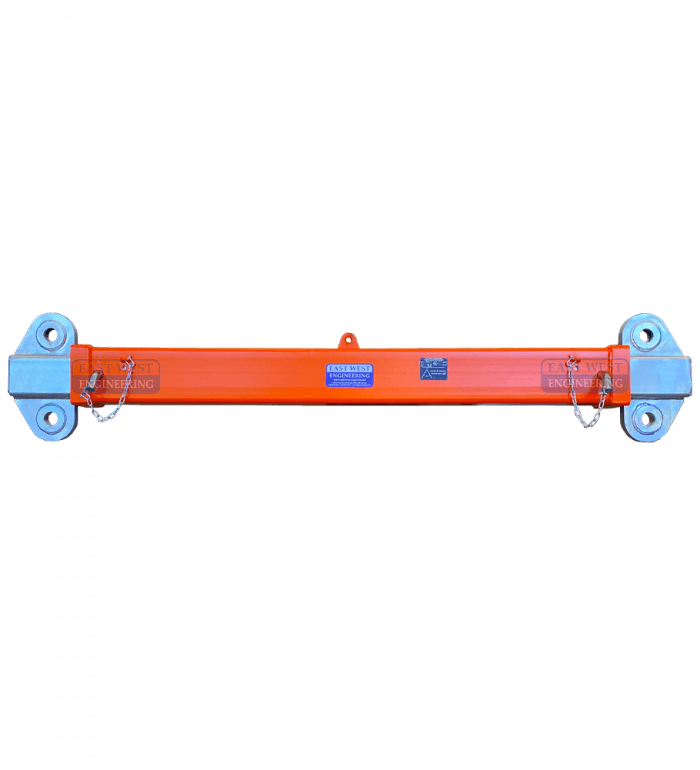

Truck Crane Spreader Beam (Heavy) - 40t

SKU: CEH2439

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The CEH2439 Crane Spreader Beam is designed to end lift long, heavy loads using a 2 leg chain sling as a ‘Spreader Beam’ by overhead crane.

FEATURES:

  • Used to lift long heavy loads up to 40T
  • End lift as a spreader beam via the end hooks and 2 leg chain sling
  • Load connection points are adjustable to 3 positions

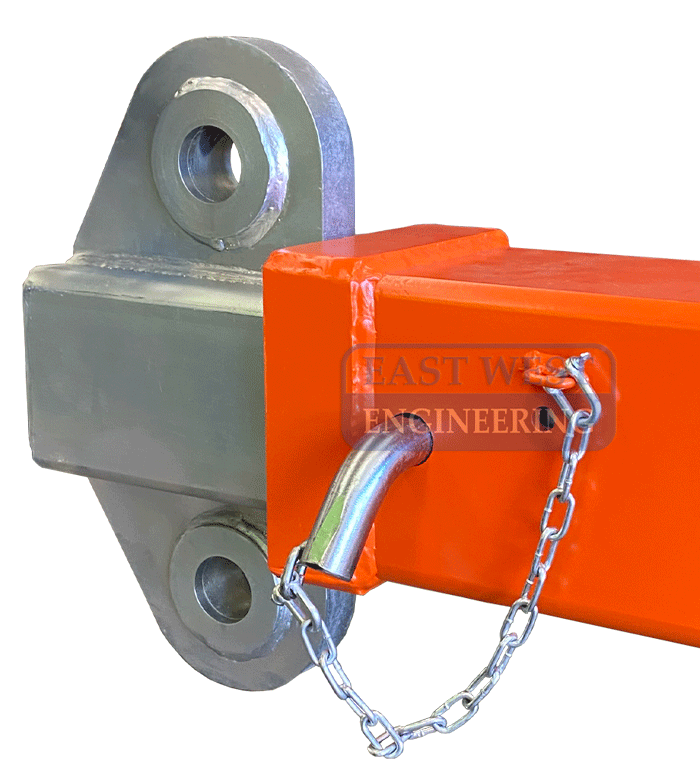

  • Safety pins used to securely lock extendable arm in position
  • Centre lifting point provided for moving spreader beam
  • 2 leg chain sling distributes the load weight making it more stable
  • Sling angle can be controlled allowing you to reduce the risk of load damage
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

SPECIFICATIONS:

      Model



                                               Rated Capacity (RC)     Unit
  Weight
    (kg)
     when used as          Fully Retracted
   (LC@2210mm)
    Middle Position
    (LC@2970mm)
      Fully Extended
      (LC@3730mm)
             Length         2500mm          3260mm           4020mm
    CEH2439    Spreader Beam         40,000kg         40,000kg           40,000kg      308



* Not for use with a forklift.
* Strictly for use as a spreader beam. Centre lifting point is provided for moving the spreader beam only, not for load lifting.
* Lifting hooks and shackles NOT supplied.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CEH2439)

SKU CEH2439
Brand East West Engineering
Shipping Weight 308.0000kg
Shipping Width 0.280m
Shipping Height 0.480m
Shipping Length 2.500m
