TradeQuip Hydraulic Telescopic Transmission Lifter - 500kg

SKU: 2052

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

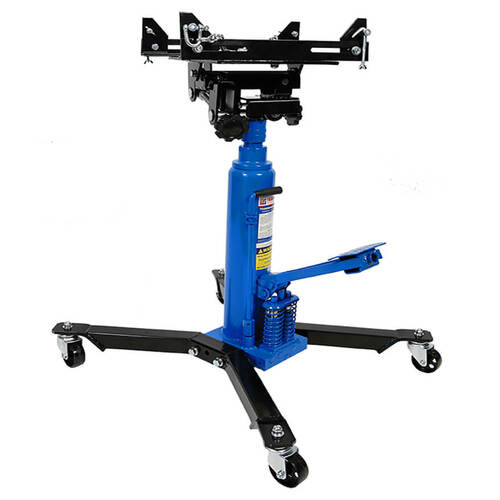

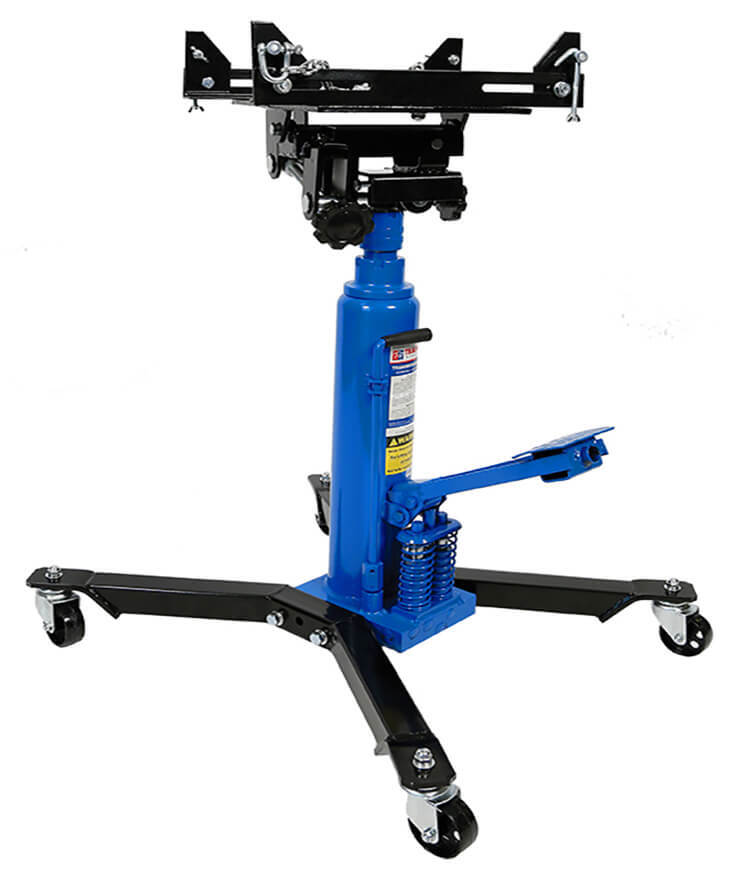

This 500kg capacity "Made for the Trade" TradeQuip hydraulic Telescopic Transmission Lifter has a 4 way tilt transmission mounting cradle with adjustable load support arms to fit most passenger vehicle transmission pan flanges. The foot-operated quicklift pump frees up operator's hands when positioning for lift and the hand operated lower lever provides safety with its extra slow lower control.

Features:

  • Designed for lifting & lowering passenger car transmissions
  • 2 Stage hydraulic ram
  • Rugged steel wheels and full swivel ball bearing castors for easy movement
  • Wide base for stability and balance
  • Adjustable ratchet saddle for quick adjustment for most pan configurations
  • 4way tilt working head and transmission mounting plate/cradle
  • High polished chrome-plated rams provides smooth operation
  • Convenient foot pedal allows use of both hands on transmission during lift
  • Unique hand release lever provides extra slow control safety when lowering
  • Foot operated fast action pump & release valve
  • Fully adjustable cradle with corner brackets
  • Includes safety chains

Specifications:

  • Safe Working Capacity: 500kg
  • Minimum Height: 855mm
  • Maximum Height: 1760mm
  • Cradle: 360x276mm
  • Forward Tilt: 23°
  • Backward Tilt: 16°
  • Lateral Tilt: 7°
  • Base Dimensions: 690 x 780mm
  • Nett Weight: 61kg
  • Carton: 550 x 270 x 780mm
  • Gross Weight: 68kg

Intended Use:

  • Designed for the removal, installation and transportation (in the lowered position) of passenger vehicle transmissions that are raised by an in-ground or above-ground lift.

NOTE: This Transmission Lifter must only be used on hard level surfaces and be free to roll during lifting and lowering.

WARNING:  This Transmission Lifter is a lifting and lowering device only and is designed for removing and installing transmissions.

---
