Weldclass MAXFLAME LPG Burner Torch Kit

SKU: WC-02989

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

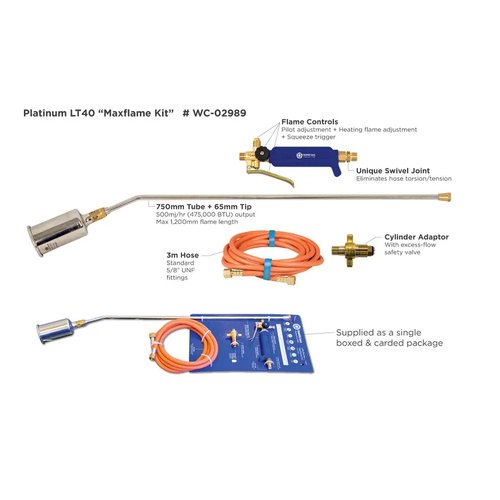

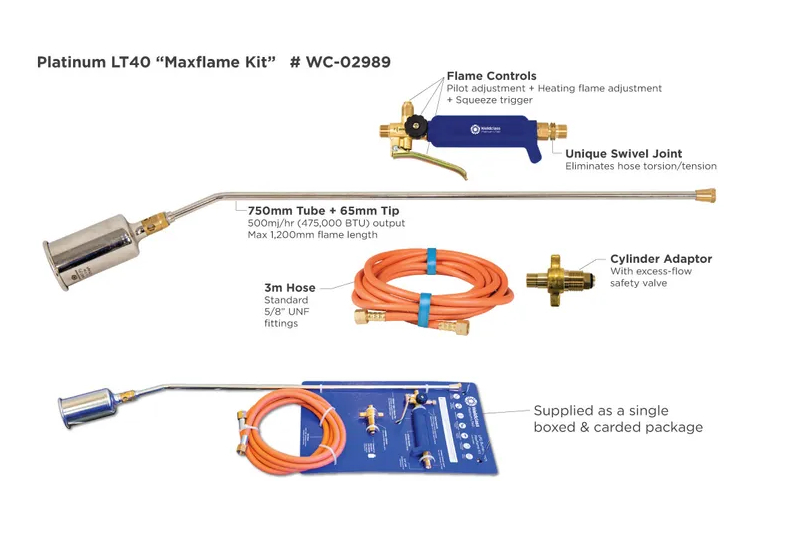

MAXFLAME KIT: Handle + 750mm Tube + Ø65mm Tip + 3m Hose + Cylinder Adaptor - Output up to 500mj/hr, torch length 1m, ideal where maximum flame size/power is required, operates on full bottle pressure

Contents
> Cylinder adaptor with safety valve
> 3m hose with fittings
> Torch handle
> 750mm tube (total torch length 1,000mm)
> 65mm tip - closed-bell style for resistance to flame-out, ideal for outdoor use

Features
> Operates off full cylinder pressure (no regulator) for maximum heat output & flame size
> Very high heat output: Up to 500mj/h (475,000 BTU) & max flame length 1,200mm
> For applications such as weed burning, bitumen heating, etc where "full-force" flame is desired
> NOT recommended where Flashback Arrestors are required by work site WHS (full bottle pressure exceeds the max LPG pressure rating for most flashback arrestors)

Key Features
> Made in Europe, industrial quality & robust heavy-duty design
> Unique hose/handle swivel connection, eliminates hose torsion/twisting & improves operator comfort
> Air/LPG operation requires LPG gas only (no oxygen required)
> Use with 4/9/45kg LPG bottles with standard POL connection
> On/off/control needle valve
> Lever / trigger - Hold forfull heating flame, Release for small pilot flame
> Pilot flame adjustment
> 5/8" UNF LH "welding industry standard" connections on handle inlet, hose & regulator outlet - for ease of repair & interchangability

Application Info
> Metal and pre-weld heating (applications that do not require the higher temperatures of an oxy/fuel torch)
> Drying, thawing
> Heating bitument/ashphelt, line marking, curing concrete
> Vegetation burn-off, weed burning
> Shrink-wrapping
> Roofing & water-proofing, etc

(WC-02989)

SKU WC-02989
Barcode # 9.34156E+12
Brand Weldclass
Shipping Weight 2.8000kg
Shipping Width 0.245m
Shipping Height 0.080m
Shipping Length 1.000m
