Weldclass 200A TIG Torch with Valve (26FV Series) - 8m

SKU: WC-01049

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

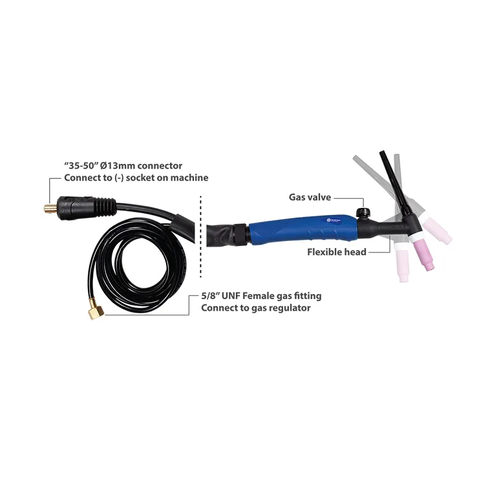

TIG Torch 26FV 8m with large 35-50/13mm connector & 5/8" UNF gas fitting - Made in Europe

KEY FEATURES
> Made in Europe
> Modern ergonomic Handle with Ball Joint to allow easy handling of the torch
> Fitted with large "35-50" connectors, ready to fit to most standard inverters with output of 200A-250A or more

WHAT ELSE ?
> Flexible torch head
> Valved style heads for use with most standard inverter welders
> 2-piece style cable with protective cable sheath fitted
> Includes parts kits & tungsten electrodes "ready to weld"

APPLICATION INFO:
> 200 amp max capacity
> Suitable for use with tungsten electrodes up to 3.2mm, and for welding materials up to approx' 4-5mm thickness
> Designed for fitting to standard inverter welding machines which do NOT have special control-plug or gas hose connections. The gas hose on the TIG torch is connected directly to the gas regulator (on the gas cylinder) and gas flow is controlled via the valve on the TIG torch head.

PARTS FITTED TO THE TORCH:
1 x 57Y02 Long Back Cap
1 x 10N23 1.6mm Collet
1 x 10N31 1.6mm Collet Body
1 x 10N47 'Alumina' Cup
1 x Tungsten Electrode 1.6mm - DC type, Thoriated Red-Tip

ADDITIONAL PARTS SUPPLIED WITH THE TORCH:
1 x 10N24 2.4mm Collet
1 x 10N32 2.4mm Collet Body
1 x Tungsten Electrode 2.4mm - DC type, Thoriated Red-Tip

(WC-01049)

SKU WC-01049
Barcode # 9.34156E+12
Brand Weldclass
Shipping Weight 1.0000kg
Shipping Width 0.200m
Shipping Height 0.050m
Shipping Length 0.100m
