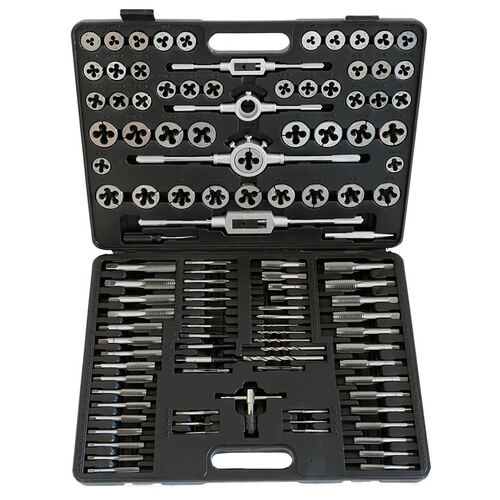

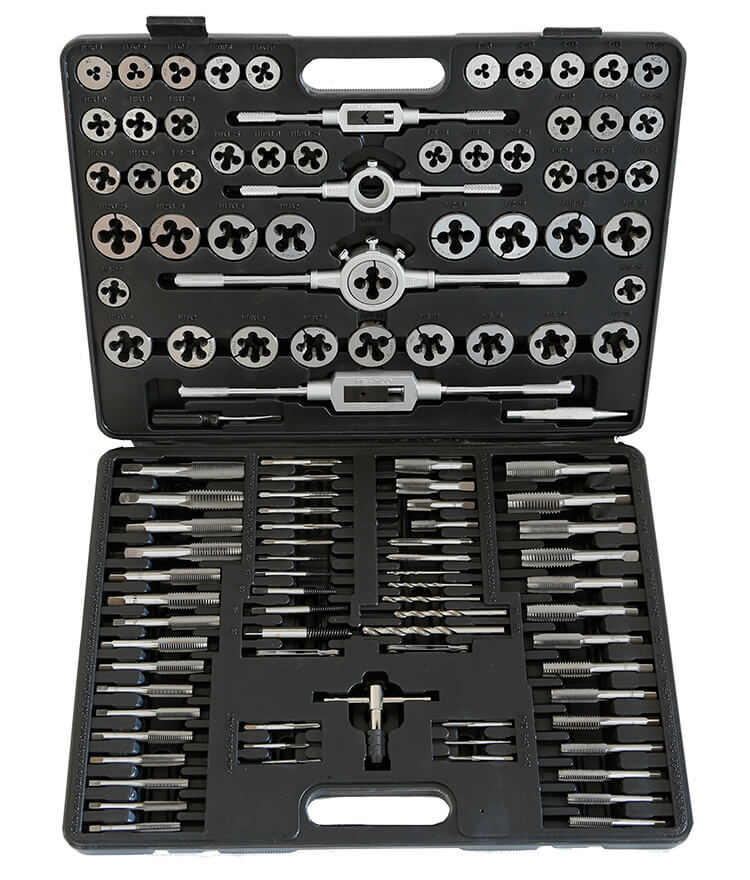

TradeQuip Tap & Die Set (115 Piece) - Metric & Imperial

SKU: 7117

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping
This TradeQuip Tap and Die Set is "Made for the Trade" quality that contains a combinations of popular metric and SAE taps and dies. Manufactured from premium quality heat treated, rust resistant tungsten steel and packaged in tough, compact, blow moulded case, the precision machined taps and dies feature a Rockwell hardness of 58-61 HRC. This set Includes die handles and tap wrenches, drill bits, screw extractors, a centre punch, a screw driver and thread pitch gauges which all fit in a blow mould storage case.
This handy tap and die set includes a compartmentalised carrying case for easy identification and organisation and two thread pitch gauges to quickly identify the right thread. The trade quality set will cover most (if not all) your tap and die needs and is sure to become your go-to tool for creating and repairing studs and bolts when you really need them!

Features:
  • Cuts and renews external and internal threads to exacting standards
  • Contains most popular sizes
  • Heat treated and hardened
  • Precision ground
  • Tungsten steel construction
  • Compartmentalised storage case

Specifications:
  • 115 Piece Set
  • Die Sizes (48pce):
  • 4-40, 5-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4 -20, 1/4 -28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20,
  • 1/2-13, 1/2-20, 9/16-,12, 9/16-18, 5/8-11, 5/8-18, 3/4-16, 2x0.4, 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0,
  • 8x1.8, 8x1.25, 9x1.25, 10x1.0, 10x1.25, 10x1.5, 11x1.5, 12x1.75, 12x1.25,14x2.0, 14x1.5 16x2.0, 16x1.5
  • 18x1.25, 18x1.5, 1/8NPT27, 1/8BSP, 1/4NP18, 1/4BSP19
  • Tap Sizes (48pce):
  • 4-40, 5-40, 6-32, 8-32, 10-24, 10-32, 12-24, 1/4 -20, 1/4 -28, 5/16-18, 5/16-24, 3/8-16, 3/8-24, 7/16-14, 7/16-20,
  • 1/2-13, 1/2-20, 9/16-,12, 9/16-18, 5/8-11, 5/8-18, 3/4-16, 2x0.4, 3x0.5, 4x0.7, 5x0.8, 6x1.0, 7x1.0,
  • 8x1.8, 8x1.25, 9x1.25, 10x1.0, 10x1.25, 10x1.5, 11x1.5, 12x1.75, 12x1.25,14x2.0, 14x1.5 16x2.0, 16x1.5
  • 18x1.25, 18x1.5, 1/8NPT27, 1/8BSP, 1/4NP18, 1/4BSP19
  • 2x Die Handles, 2x Tap Wrenches, 1x T-Type Tap Wrench
  • 2x Screw Pitch Gauges, 1x Centre Punch, 1x Screwdriver
  • Drill Bits 5pce: 2.5, 3.3, 4.2, 5, 6.8mm.
  • Screw Extractors 5pce: 1#, 2#, 3#, 4#, 5#
  • Weight: 7kg
  • Carton 460 x 350 x 50mm

(7117)

SKU 7117
Barcode # 9332105017173
Brand TradeQuip
Shipping Weight 7.0000kg
Shipping Width 0.400m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.008050000m3
