Lincoln Electric Statiflex 400-M Wall Mounted Single Arm Self Cleaning Filter

SKU: 7445000700

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Statiflex 400-Ms Wall Mounted Self Cleaning Filter Only 7445000700

Specifications

 INPUT V

 415/3/50-60

 RATED OUTPUT

 Suitable For 1 Extraction Arm

 WEIGHT

 40 KG

 DIMENSIONS ( H x W x D)

 1050 x 810 x 710

This unit requires the following items to buy separately. They are not included in the unit:

1- EXTENSION ARM

 DESCRIPTION

 PART NUMBERS

 LTA 2.0 Telescopic Fume Arm DB

 7925260180

 LFA 2.0 Ultraflexiable Fume Arm 2m

 7925270180

 LFA 3.1 Ultraflexiable Fume Arm 3m

 7925170180A

 LFA 3.1 Ultraflexiable Fume Arm 4m

 7925220180A

2- FAN

 DESCRIPTION

 PART NUMBER

  SF2400 Fan

 7905220740

  SF4200 RD Fan

 7906010010

  SF4200 LG Fan

 7906020010

3- WALL BRACKET

 DESCRIPTION

 PART NUMBER

 LMB Wall Bracket (LFA3.1 & LFA4.1 LC)

 7915301700

 TMB Wall Bracket (LTA2.0 & LFA4.1LC)

 7915302000

4- CONTROL BOX

PART NO. - 7900020300

5- NCW CONNECTION WIRE 11 M

PART NO. - 9850031050

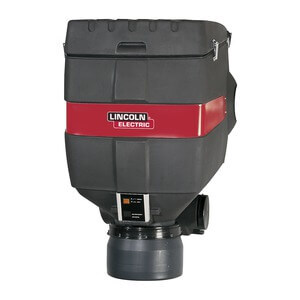

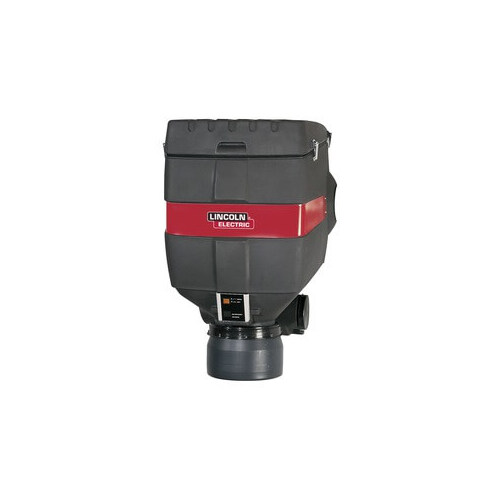

The Statiflex 400-MS stationary, wall-mounted low vacuum system is intended for light to medium duty extraction and filtration of welding fume. The Statiflex is designed for facilities with fixed workstations and little available floor space. A self-cleaning filter is standard on the Statiflex 400-MS.

  • Generous Airflow - 735 CFM with LFA 3.1 or 4.1 extraction arms and SF2400 fan

  • Spark Arrestor - Also functions as a pre-filter for larger-sized particulate.

  • Filter size and wedged shape filter pattern results in high filter efficiency, longer filter life, and lower operational costs

  • RotaPulse® automatic cleaning system simplifies filter maintenance

  • Large Filter capacity 30 m2

  • Ideal for use in job shops welding schools, and maintenance departments.

  • Cleaner Work Environment - Reduce dust and dirt in operator and surrounding work area

  • Filter Size - Generously sized filters help to lower operational costs

  • Flexible Configuration - Ability to choose a single or dual-arm unit to meet application requirements.

(7445000700)

SKU 7445000700
Brand Lincoln Electric
Shipping Weight 60.0000kg
Shipping Width 1.000m
Shipping Height 0.850m
Shipping Length 1.200m
