Stainless Steel/Copper Tube Cutting/Prep Machine (230V)

SKU: 96362

POA

Share:
  • Dispatch in: 5-7 days

Minimum Order Quantity 1

Calculate Shipping

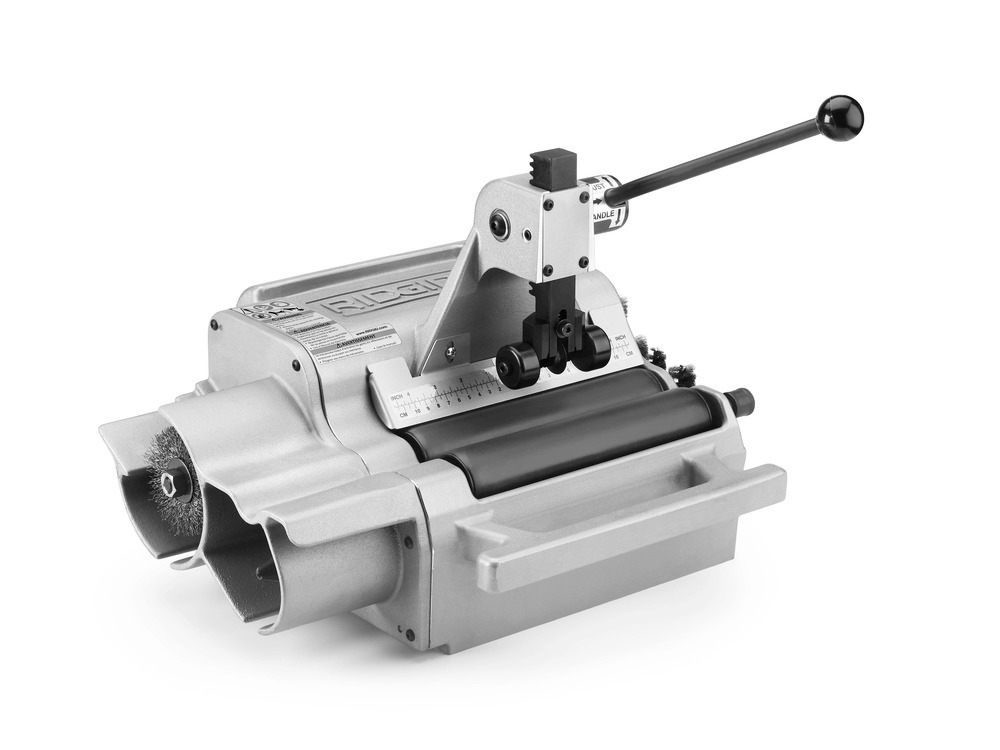

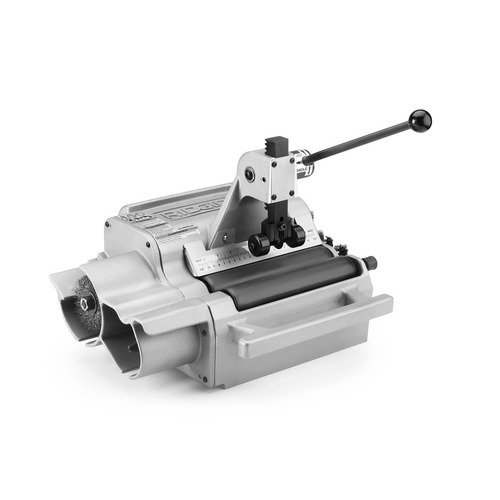

122 Cutting and Prep Machine

This machine is designed to cut, clean, ream and deburr copper and stainless steel tubing and fittings quickly and professionally. Weighing only 50 lbs (23kg) and possessing a conveniently located carrying handle, the 122 is ideal for transport directly to the job site. Rugged cast aluminum housing and powerful 1/3 HP induction motor assure long life.

Features

  • Tube and fitting capacity: 1/2" - 2" (12 mm-54 mm).
  • Powerful 1/3 HP induction motor drives rollers at 450 RPM.
  • Rugged O.D. cleaning brush cleans tubing quickly with minimal effort.
  • Core reamer easily removes turbulence-causing burrs.
  • Cutting handle adjusts to accommodate different tubing sizes.
  • Large carrying handle for easy transport to the job site.
  • Guide rollers ensure a straight cut with no tracking.
  • Built-in 1/2" (12 mm) incremental scale for quick, easy measuring.
  • Copper cutter wheel tested to over 10,000 cuts.
  • Fitting brush Kit includes six brushes, storage rack and collet.
  • Approved by CSA to CSA and UL standards.

Specifications

  • 122 Stainless Steel / Copper Tube Cutting Machine Only
  • Voltage: 230V
  • Copper and stainless steel tube and fitting capacity: 1/2" - 2" (12 mm-54 mm)
    • For ASTM B88 types K, L, M copper
    • For stainless steel wall thickness up to .065" (1.65 mm)
  • Switch: Toggle on/off
  • Cutter wheel: Model 2191 HD wheel
  • Roller Speed: 450 RPM
  • Reamer: Single flute cone, RH, 1/2" to 2"
  • Motor: 1/3 HP, 115V, 60Hz induction motor or 1/3 HP, 230V induction motor
  • Weight: 50lb (22.68kg)



(96362)

SKU 96362
Barcode # 95691963628
Brand Ridgid
Shipping Weight 29.9800kg
Shipping Width 0.508m
Shipping Height 0.394m
Shipping Length 0.457m
