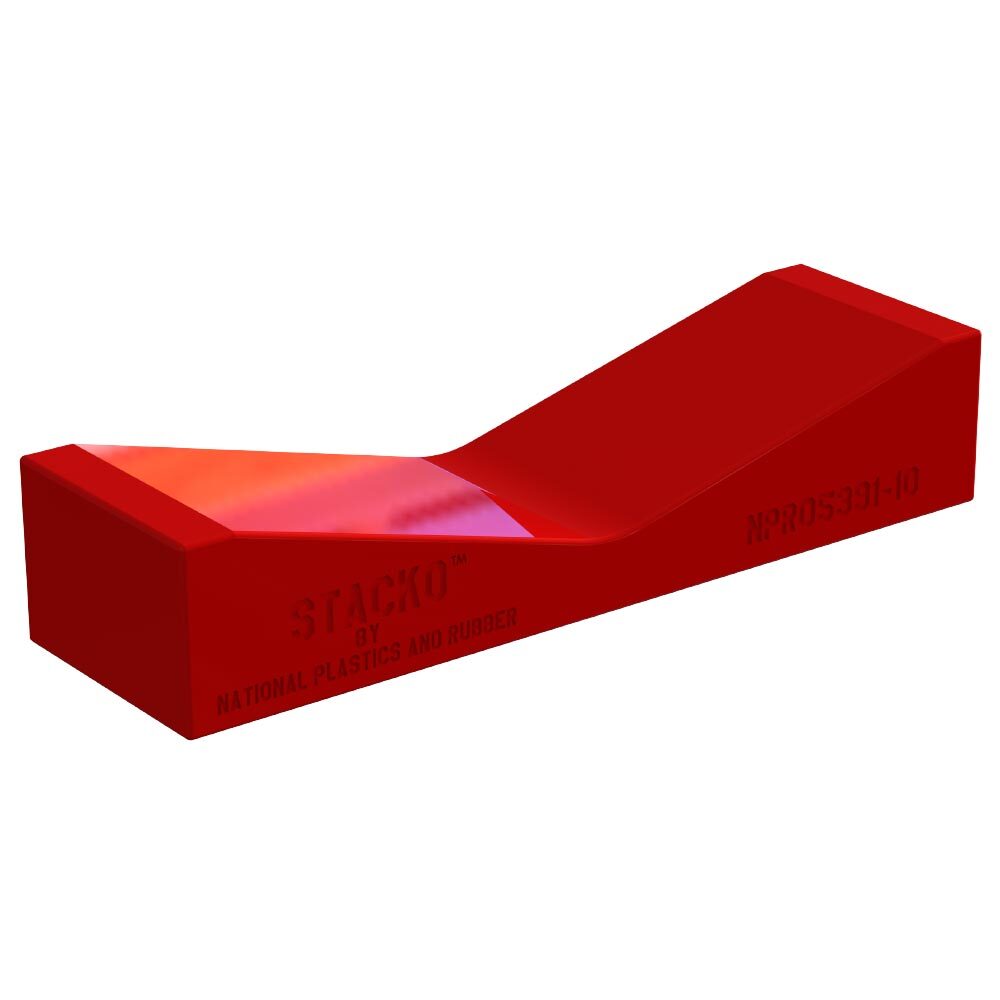

Stacko V Block - 510 x 150 x 100mm

SKU: NPR05391-10

POA

Share:
  • Dispatch in: 1-2 days


Calculate Shipping

Stack and stabilise your stock with the range of Stacko Blocks from National Plastics and Rubber.

Stacko Blocks are a unique and excellent solution for load support.  They are a superior alternative to traditional wood blocks used for stacking and stabilising large amounts of stock. They are configurable with components that can suit different types of load weight, sizes and shapes.

V-Blocks allow support for loads with a curved base. Custom shaped support blocks can be manufactured upon request. Higher loads may be possible for diameters above 15cm, however you would need to perform your own Risk Assessment.

Manufactured from high quality UV stabilised polyurethane materials, Stacko products will perform to expectations for the long term.

Additional Information:

  • *Higher load certification can be provided upon request
  • Tested to AS1170.0 2002 with 3:1 Load safety factor at temperature range of -50C (-58F) to 40C (104F)
  • Up to 150cm (60″) high at maximum load rating. (3 blocks per layer)
  • Higher stacks and stacks with 2 blocks per layer can be built for lighter loads but is not recommended

Technical Specifications:

Minimum Load Diameter

ø15cm x 15cm long (ø6inch x 6inch long)

Maximum Diameter

120cm (48inch)

Maximum Load

13,000kg (30,500lb)*



Suggested Stacko Configurations:

Configuration 1

Single Stacko Block

Used as a single block/s

Configuration 2

Stack + Top Plate

Multi-purpose stack to be used where load area fits within the Top Plate edge

Configuration 3

Stack + Top Plate + Jack Plate

Suitable to be used as a high load jacking base

Configuration 4

Stack + Top Pad

Multi-Purpose stack suitable for larger load areas with no point loading

Configuration 5

Stack + Top Plate + Top Pad

Suitable for load areas larger than the top plate

Configuration 6

Stack + Top Plate + V-Blocks

Ideal for supporting high load with a curved load face

Configuration 7

Stack + V-Blocks

V-Blocks allow support for loads with a curved base



Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.

(NPR05391-10)

SKU NPR05391-10
Brand National Plastics
Shipping Weight 6.6000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.500m
Shipping Cubic 0.008000000m3
