Spreader Beam (10t WLL) - 2405mm

SKU: CFM2439

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

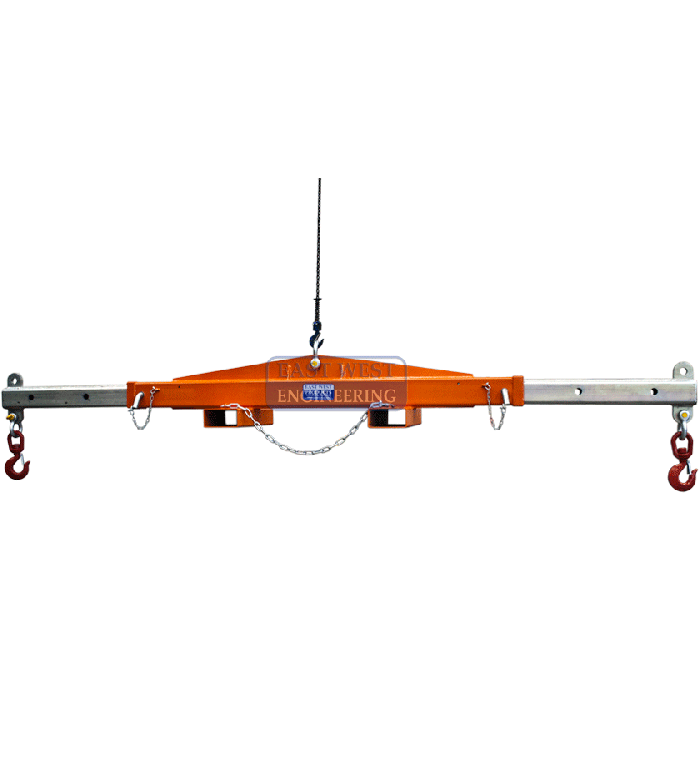

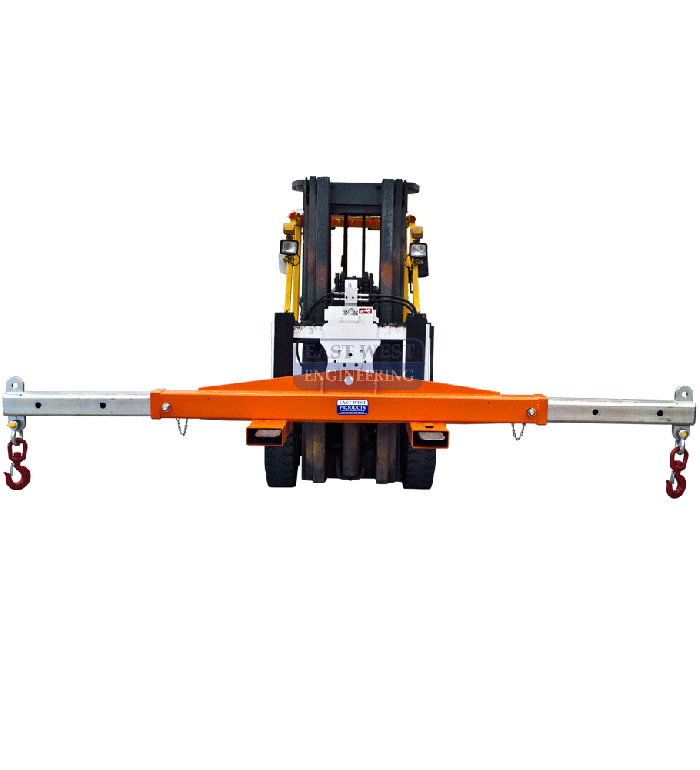

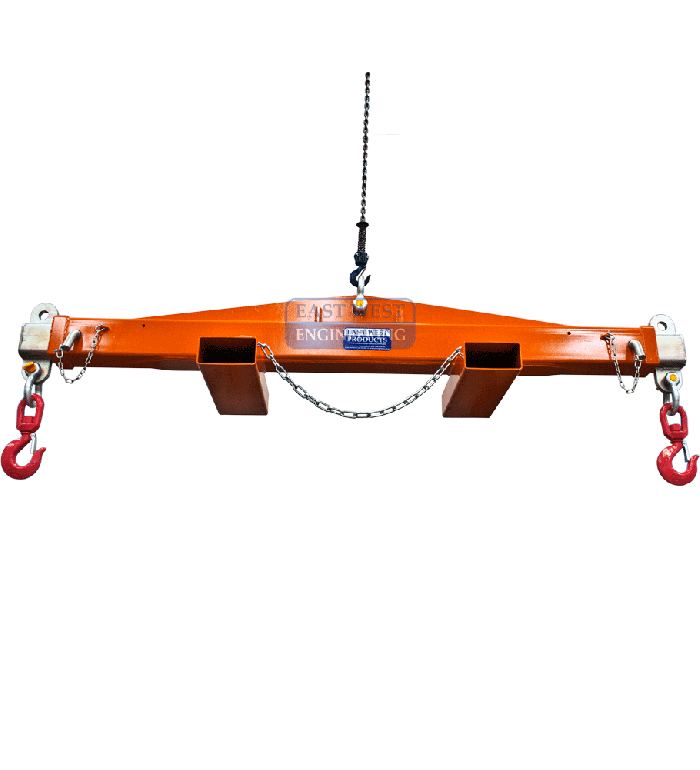

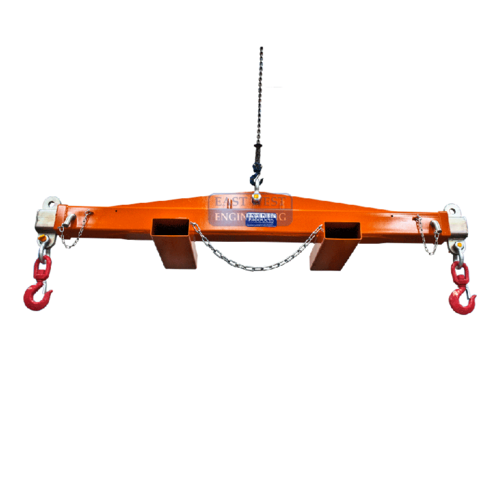

The CFM2439 Spreader Beam is a unique multitasking Beam which can be used by overhead crane or forklift to lift long loads. When used by crane, loads can be lifted via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’. If lifting by forklift, the 600mm long slipper pockets allow fast and safe connection to the truck.

FEATURES:

  • Multi-tasking spreader beam
  • Load connection points are adjustable to 3 positions by moving the extendable arm in position
  • Safety pins used to securely lock extendable arm in position
  • Fitted with 2 safety swivel hooks
  • Certified to the relevant Australian Standards
  • Zinc finish on extendable arms, enamel paint finish on main body

SPECIFICATIONS:

        Model           Rated Capacity (RC) Fork Pockets     Unit Weight (kg)
      when used as    Fully Retracted      Middle Position      Fully Extended   Size (mm) Centre (mm)
       (LC@2405mm)   (LC@3165mm)   (LC@3925mm)
 CFM2439  Forlift Attachment          5600kg   2900kg 1400kg 185x85 900                260
       Lifting Beam                6000kg             4500kg            2400kg
                               Spreader Beam            10000kg                       10000kg                     10000kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CFM2439)

SKU CFM2439
Brand East West Engineering
Shipping Weight 260.0000kg
Shipping Width 0.600m
Shipping Height 0.400m
Shipping Length 2.500m
