Sideways Wheelie Bin Tipper - 185 x 65 x 635mm

SKU: FHB24

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

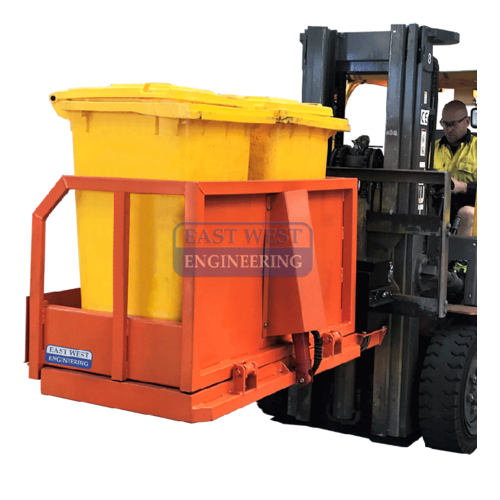

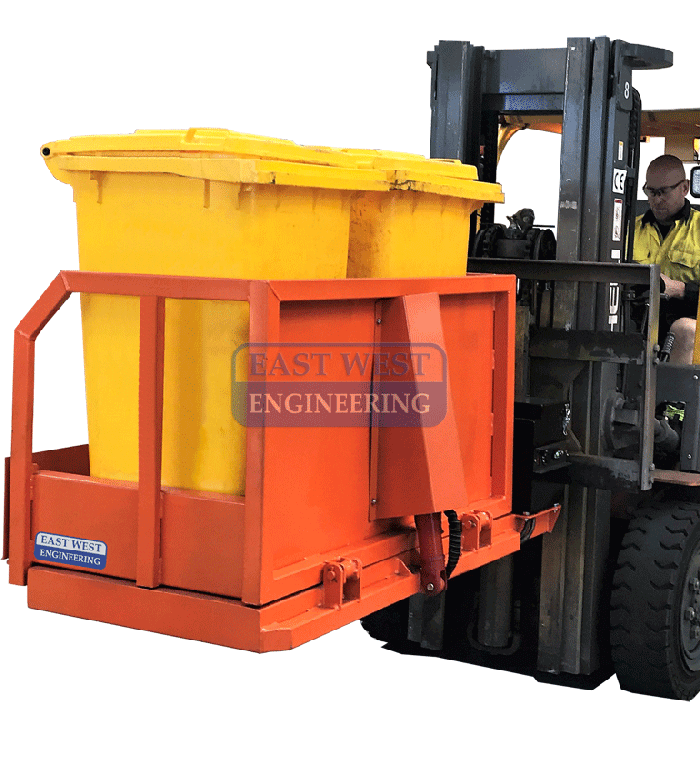

The FHB24 Sideways Wheelie Bin Tipper with fitted Hydraulic Power Pack is designed to safely lift, transport and empty wheelie bins of most sizes with a forklift.

FEATURES:

  • Suits 80,120, 240 or 660 litre wheelie bins
  • Allows one or two wheelie bins to be rotated 120° for sideways emptying
  • Ramp fitted for wheeling bin into position
  • Ratchet tensioners for simple and secure fastening of 660L bin to attachment
  • Wheel guide used to position 80/120/240L bin in place
  • Slip-on attachment and safety chain allows quick connection to a forklift
  • Enamel paint finish

HYDRAULIC POWER PACK FEATURES:

  • Remotely controlled pendant (50m distance range) with spare pendant supplied
  • 12-Volt DC Hydraulic Pump
  • Battery & battery charger
  • Robust cabinet box protects all components
  • Quality hydraulic components
  • Incorporated safety features include a two-button opening function and emergency stop
  • 180 AMP main fuse protects the full electrical circuit whilst a secondary 10AMP fuse adds further protection to the remote system and solenoid coils

SPECIFICATIONS:

 Working Load Limit (WLL)      500kg
 Rotation Angle  120°
 Unit Weight  285kg
 Fork Pocket Size  185 x 65mm
 Fork Pocket Centres  635mm

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(FHB24)

SKU FHB24
Brand East West Engineering
Shipping Weight 435.0000kg
Shipping Width 1.000m
Shipping Height 0.850m
Shipping Length 1.540m
