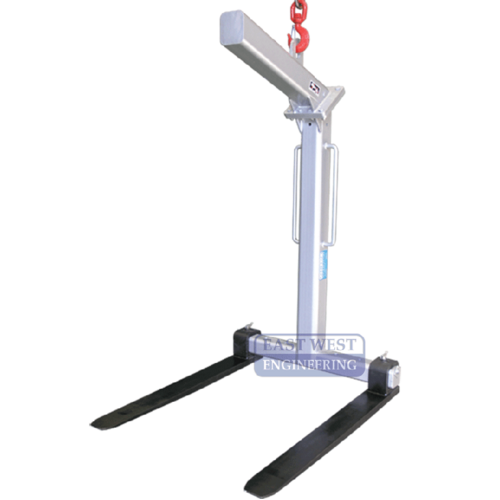

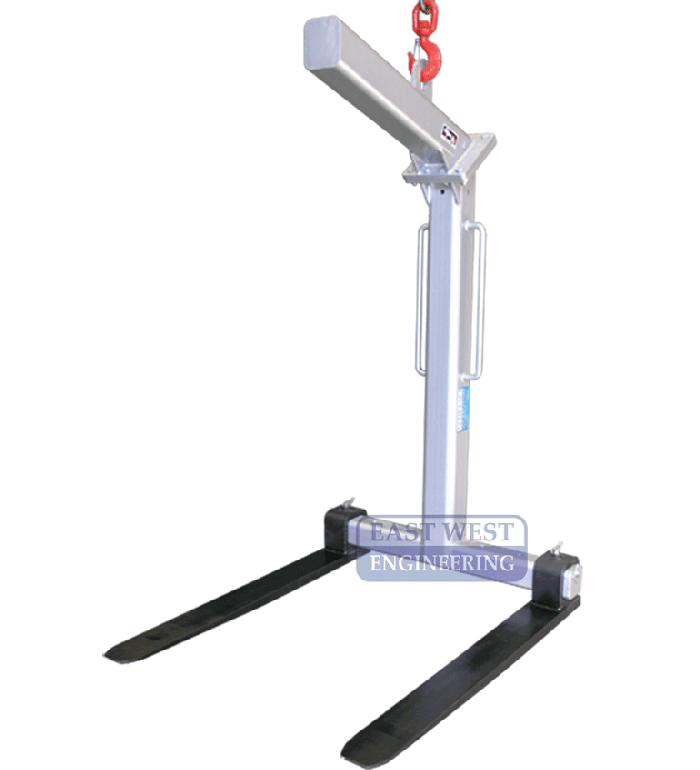

Self Levelling Pallet Hook (2t WLL) - 100 x 45 x 1055mm

SKU: PHA2000

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The PHA2000 Self Levelling Pallet Hook is designed & certified in accordance with Australian Standard AS 1418.1 to safely handle palletised goods when being lifted by overhead crane. The unit self balances when loaded with an internal spring mechanism that keeps the fork tines horizontal. This eliminates the need to balance the pallet hook manually.

FEATURES:

  • Adjustable body height and fork tine width
  • Suits loads exceeding 250kg only
  • Self-levelling for ease in operation between loaded or unloaded positions
  • Internal spring mechanism ensures the lifting eye automatically positions
  • Enclosed frame protects the operator from moving parts
  • Made with high tensile steel for maximum strength
  • Ideal for the transport and construction industry
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)      2000kg
 Load Centre  600mm
 Clear Length Fork Tines  100 x 45 x 1055mm
 Adjustable Fork Tines  315, 595, or 875 centres
 Unit Weight  196kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(PHA2000)

SKU PHA2000
Brand East West Engineering
Shipping Weight 1030.0000kg
Shipping Width 1.200m
Shipping Height 2.150m
Shipping Length 1.200m
