SeeSnake MicroDrain Inspection Camera - 20m x 22mm

SKU: 37513

POA

Share:
  • Dispatch in: 5-7 days

Minimum Order Quantity 1

Calculate Shipping

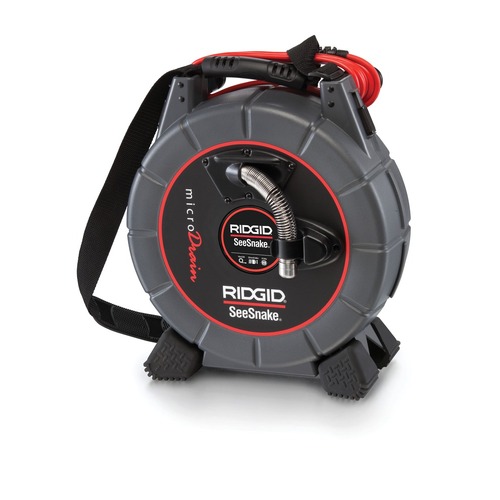

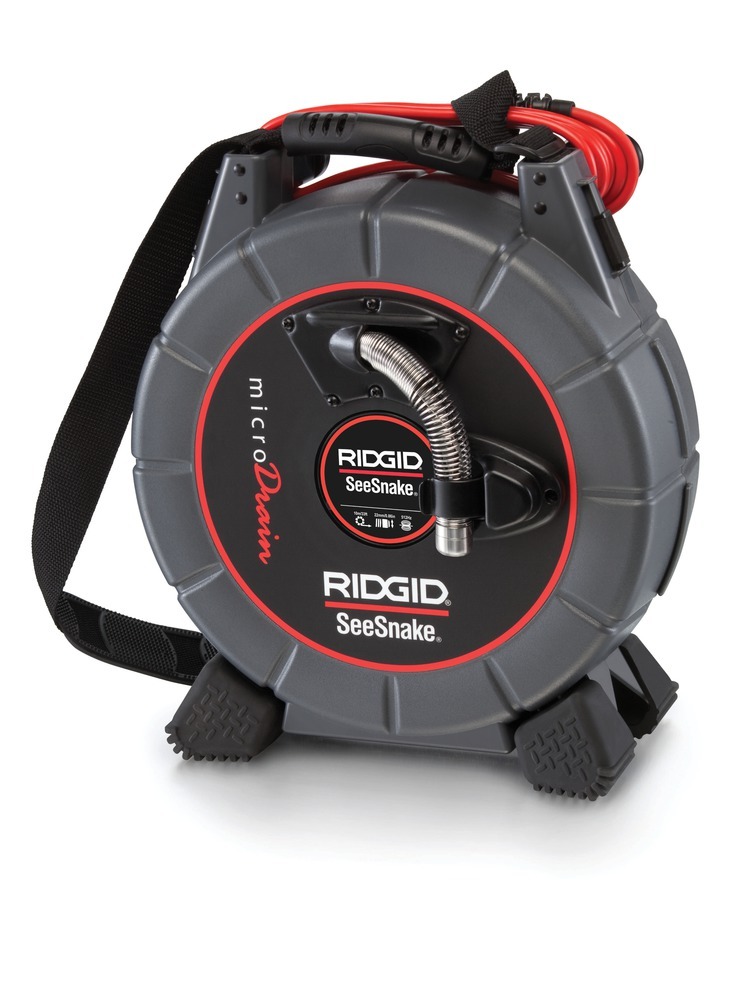

SeeSnake® microDRAIN® Video Inspection System

1¼" to 3 / 4" (32 - 75 to 100 mm)* lines up to 65' (20 m). Passes multiple 90° bends in most 1.5" (40 mm) drain lines.

microDRAIN® video inspection system provides small size and maneuverability for small diameter and tight-turn radius inspections.

* 3" (75 mm) when used with a micro CA-350 inspection camera. 4" (100 mm) when used with a SeeSnake® monitor.

Features

  • Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
  • Multi-monitor compatibility with existing SeeSnake monitors, or the micro CA-350 digital inspection camera.
  • Durable and reliable construction with hardened stainless steel camera head spring assembly for a long service life as well as long lasting high-intensity lights for exceptional viewing.
  • Ideal for inspections with tight turns such as toilet traps and P-traps.
  • L100/L100C - 1 1⁄2" to 5" (40 - 125 mm) lines with a stiffer push cable allowing you to inspect lines up to 100' (30 m)
  • D30 and D65S - Small diameter with tight turns, 1 1⁄2" to 4" (40 - 100 mm) P-traps, toilet traps, pool lines up to 65' (20 m)
  • N85S - Ultra small diameter lines 1" to 2" (25 - 50 mm) with tight turns for specialized applications

Specifications

  • Camera Head: 0.86" (22 mm)
  • Cable Length: 65' (20 m)
  • Cable Diameter: 0.33" (8,3 mm)
  • Line Capacity: 1¼" to 3 / 4" (32 - 75 or 100 mm)
  • Weight: 8.6 lbs. (3,9 kg) or 9.8 lbs. (4,4 kg)
  • Size: Length 13.25" (33.7 cm), Width 6.6" (16.8 cm), Height 14.2" (36.1 cm)
  • Resolution: 656 x 492 NTSC
  • Ball Guide: 2 included
  • Sonde: Standard with 65" (20m) microDrain, 512 Hz
  • Counter: Counter available when paired with the SeeSnake® CS or CSx Series monitors, but does not display counter when paired with the CA-350.

(37513)

SKU 37513
Barcode # 95691375131
Brand Ridgid
Shipping Weight 6.8000kg
Shipping Width 0.203m
Shipping Height 0.356m
Shipping Length 0.305m
