Roll Dispenser (WLL 1250kg) - 3000-6000mm

SKU: RDB1.25X6

POA

Share:
  • Ready to Dispatch


Calculate Shipping

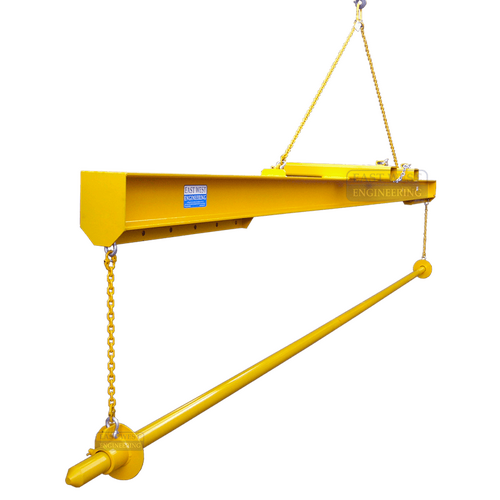

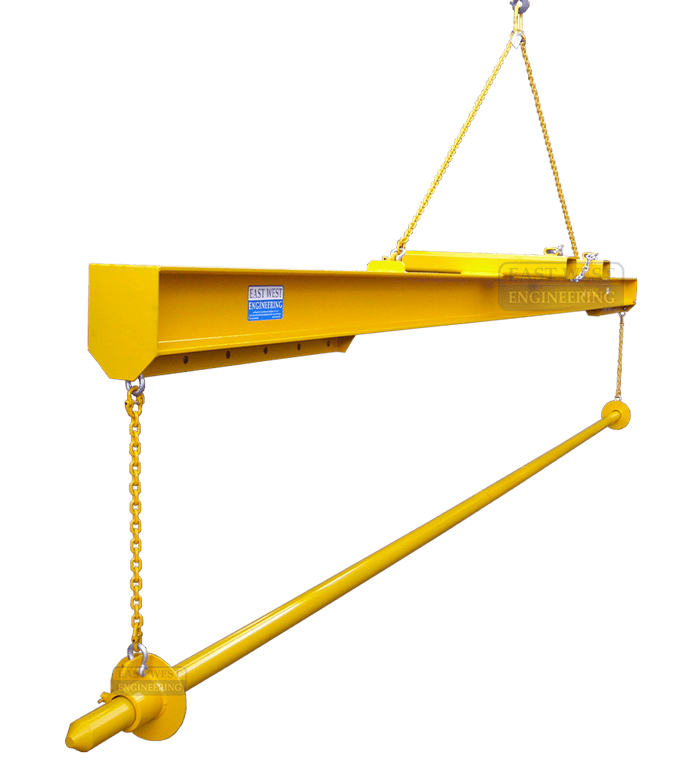

The RDB Roll Dispenser Beam is a spreader beam designed to safely lift and lay rolls and liners such as those used in ground preparation work in construction, landscaping and farming applications. This unit improves operational productivity and reduces manual handling of long, heavy rolls during installation.

FEATURES:

  • Suitable for dispensing rolled materials such as geotextiles
  • 6 adjustable lift positions on each end
  • Beam to spindle link chain supplied
  • 2 leg chain sling supplied standard
  • Fork pockets fitted
  • Customised units to suit application available on request
  • Enamel paint finish

SPECIFICATIONS:

              Model

Working
 Load Limit
(kg)
Min. Roll
Width
(mm)
 Max. Roll
Width
(mm)
Max. Roll
Diameter
 (mm)
Min. Roll
Hole Diameter
 (mm)
Axle
Weight
 (kg)
Unit
Weight
 (kg)
 RDB1.25X6  1250 4000 6000 2000 80 69 460
 RDB2X2 2000 600 2000 2000 80 29 110
 RDB2X6 2000 4000 6000 2000 110 95 490
 RDB3X3 3000 700 3000 2000 110 55 170



(RDB1.25X6-0)

SKU RDB1.25X6-0
Brand East West Engineering
