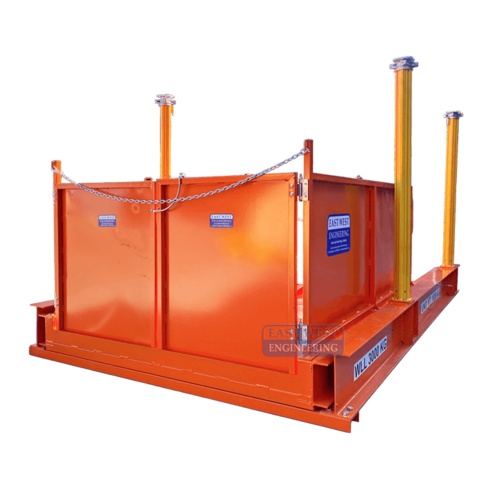

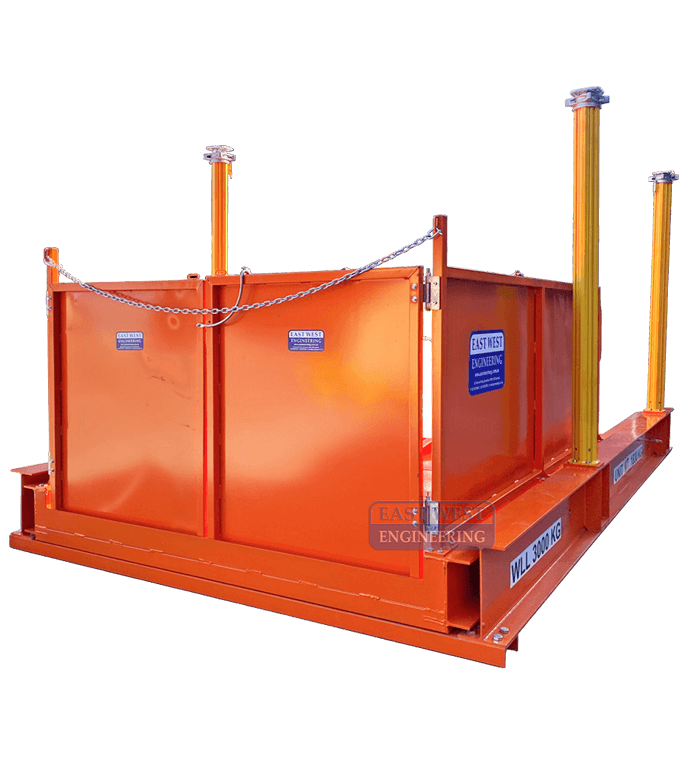

Retractable Crane Loading Deck (3t WLL) - 4765 x 2500 x 1610mm

SKU: CCLP30-RD

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The CCLP30-RD Retractable Crane Loading Deck is a safe, convenient and cost effective access solution for loading and unloading materials at multi-storey and high rise projects by crane.  Designed to suit smaller construction or demolition projects with limited or constrained space and lighter material loads, this temporary platform helps increase site safety and productivity, while reducing labour time and costs.

FEATURES:

  • Allows materials and equipment to be loaded on or off different levels by cranes during construction
  • Retractable design allows vertical stacking of decks
  • Retracts almost flush with building (150mm protrusion) increasing usable loading space when using multiple decks
  • Lightweight unit easily rolls in and out for loading by one operator
  • 3 Tonne WLL
  • Quick & easy installation
  • Simple locking system
  • 4 adjustable aluminium support props supplied
  • Front and rear safety chains for added safety
  • Stackable for storage and transport ease
  • Enamel paint finish

SPECIFICATIONS:

 Working Load Limit (WLL)      3000kg (uniformly distributed load)
 Concentrated Load  2000kg over 1 square metre
 Overall Platform Dimensions - retracted*  4765(l) x 2500(w) x 1610(h) mm
 Overall Platform Dimensions - extended*  4765(l) x 2500(w) x 1610(h) mm
 Outboard Dimensions  2800(l) x 2435(w) mm
 Internal Clearance  2850(l) x 1900(w) mm
 Inboard Dimensions (inside building space)          4616(l) x 2500(w) mm
 Adjustable Height (as supplied std)  2206 - 3756mm
 Unit Weight  1830kg

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CCLP30-RD)

SKU CCLP30-RD
Brand East West Engineering
Shipping Weight 1830.0000kg
Shipping Width 2.500m
Shipping Height 0.370m
Shipping Length 4.770m
