TradeQuip Air/Hydraulic Pump- 10,000psi

SKU: 2054T

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

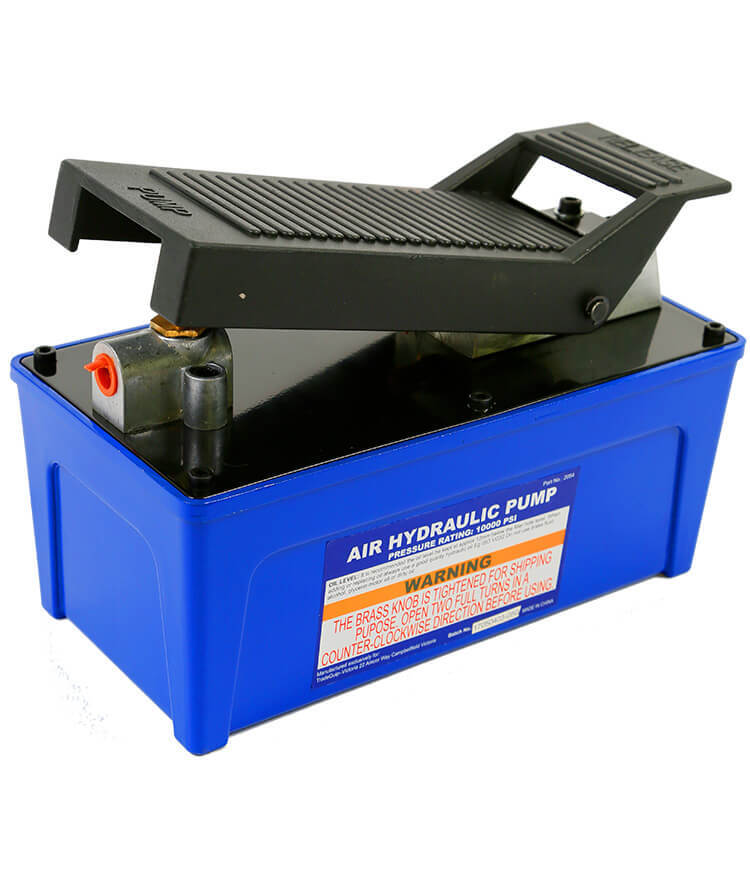

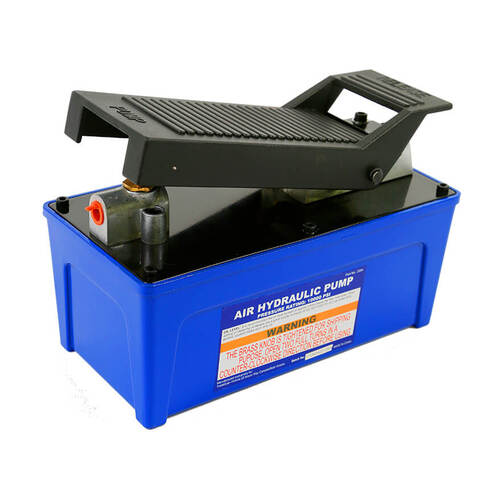

This "TradeQuip Made for the Trade" hand or foot hydraulic air pump is designed to operate pneumatically. It is an ideal power source for various body, frame and alignment applications and can be used with different ram kits, shop presses and hydraulic pullers (not included) that operate with a hydraulic oil pressure requirement of up to 10,000 psi. Constructed for safety, durability and high-flow oil delivery, this air hydraulic pump will deliver high-quality performance in addition to fine metering capabilities that provide more precise control.
This heavy duty TradeQuip Air-hydraulic Pump connects via a 1/4" NPT air nipple and a 3/8" NPT hydraulic hose adaptor. Hydraulic hose and adaptor kit not included.
Available separately use Product Code: 2054-H

Features:
  • Durable light-weight corrosion-free aluminium
  • Built-in overload system prevents pump from being used beyond its safety capacity
  • Ergonomic hand/foot activation lever
  • Air/oil filters minimize contaminants in hydraulic system
  • Perfect for porta power rams and bead breakers
  • Compact design fits in service truck storage boxes
  • Air exhaust muffler for quiet operation
Specifications:
  • Maximum Output Pressure: 10,000psi
  • Usable Hydraulic Fluid Capacity: 2.25 Litres
  • Operating Air Pressure: 90-145 psi
  • Air Consumption: 7.5CFM @ 100 psi
  • Oil Delivery with No Load: 49.5 cu.in/min
  • Oil Delivery with Load: 7.6 cu.in/min
  • Input (Air) port thread: 1/4" -18 NPT
  • Output (Oil) port thread: 3/8" -18 NPT
  • Weight: 8kg
  • Carton: 300 x 170 x 205mm

Hydraulic hose and adaptor kit not included - Available separately use Product Code: 2054-H

Intended Use

For medium duty applications when compressed air is used in conjunction with a good quality manual hydraulic pump.

(2054T)

SKU 2054T
Barcode # 9332105000243
Brand TradeQuip
Shipping Weight 8.8000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.400m
Shipping Cubic 0.016000000m3
