Plastic Barrel Drum Rotator (Handle Driven) - 350kg WLL

SKU: DER40H-PBO

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

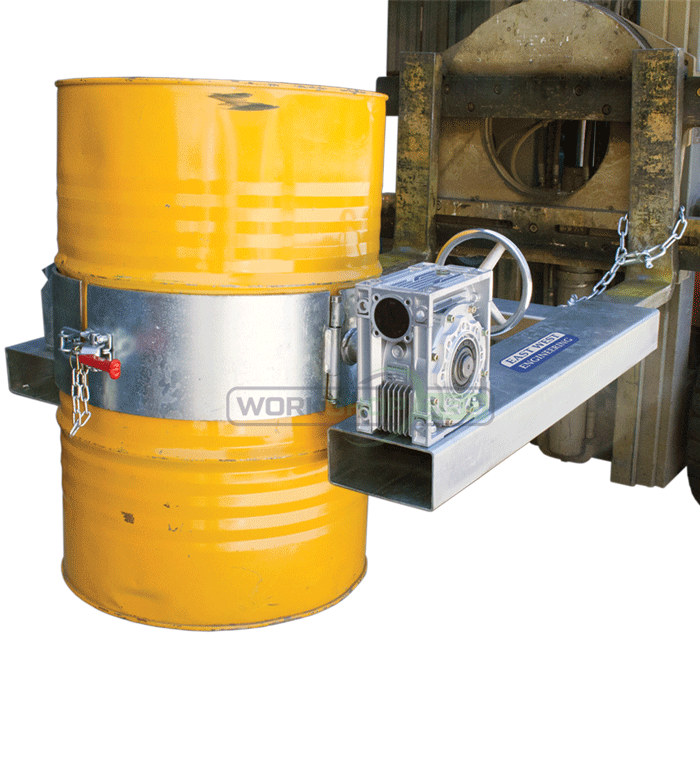

The DER40H Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops turning the handle, preventing dangerous and uncontrolled movements.

FEATURES:

  • Empties a standard 205 litre drums with minimal effortSuitable for drum rotation when raised up to chest height
  • Rotation carried out via a hand wheel
  • Belly strap and eccentric lock secures drum in position
  • Locking pin prevents accidental release
  • Slip-on attachment allows quick connection to a forklift
  • Can be coupled with the PBO Plastic Barrel Option
  • Zinc finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

SPECIFICATIONS:

 Model



  Rotation



Working
  Load Limit
(kg)
  Fork Pocket
Size
(mm)
  Fork Pocket
Centres
(mm)
Load
  Centres
 (mm)
Unit
  Weight
 (kg)
 DER40H 360° 400 185 x 60mm 840 940 92
  DER40H-PBO   360° 350 185 x 60mm 840 940 102

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(DER40H-PBO)

SKU DER40H-PBO
Brand East West Engineering
Shipping Weight 102.0000kg
Shipping Width 1.200m
Shipping Height 0.650m
Shipping Length 1.340m
