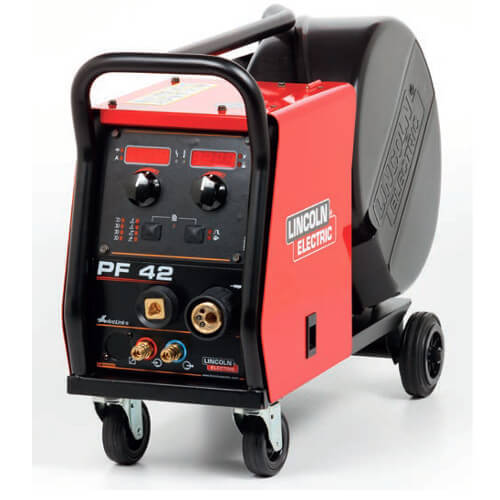

Lincoln Electric Air/Water Cooled Digital Wire Feeder

SKU: K14107-1

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Top Features

Small rugged and easy-to-handle feeders; with bright digital meters (PF40 excl.).

Utilises ArcLink®—the leading digital communication protocol for welding, making it the best choice for seamless, time-critical integration with the power source

Four roll drive system with a powerful motor

Hot/Soft start Crater Run (PF40 excl.) and all standard features.

Easy-to-understand user interface panels make it easy to set weld parameters.

Designed to work with digital power sources

The Power Feed wire feeder range is designed to combine easy handling and control by the welder with perfect wire feeding. Dependent on your application, the PF feeders are supplied as standard with a standard undercarriage but are available to be hung from a boom or placed on a special heavy-duty undercarriage to be used in tough industrial conditions. The basic model PF-40 supports only CV MIG mode (5) but the rest of the range (PF42/44/46) supports all modes installed on multi-process or the advanced digital (ArcLink®) Lincoln power sources. The feeders are differentiated by User Interface (UI) and functions installed. The basic UI “U0” provides just control of Voltage and WFS whereas the more advanced “U2” is equipped with bright digital meters, Trim function, mode selector, and main starting/ending functions. The UI group “U4” & “U6” utilizes TFT colour display with intuitive icon language and a variety of special functions. Top class feeder PF46 with UI “U6” combines all functions with USB connection, Dual Procedure, Memory, Limits, and also Light Switch inside the feeders which supports wire installation in dark, industrial conditions. All Power Feed 4X series can be optionally equipped with a gas flow-meter, heavy-duty undercarriage, or lifting eye.

  • Small rugged and easy-to-handle feeders with bright digital meters (PF40 excl.).
  • Utilizes ArcLink® - the leading digital communication protocol for welding, making it the best choice for seamless, time-critical integration with the power source.
  • Four roll drive system with a powerful motor.
  • Remote control on the gun (PF46 & option for PF44).
  • Easy-to-understand user interface panels make it easy to set weld parameters
  • Features push-pull capability for great performance on aluminum (PF46 & option for PF44).
  • Equipped with wheels as standard.
Solid Wire Size Range
  • 0.8 - 1.6 mm

Cored Wire Size Range

  • 1.0 - 1.6 mm

Wire Speed Range IPM (M/MIN)

  • 0.1-22 m/min
Dimensions (H X W X D) 460 mm x 300 mm x 640 mm
Net Weight 18 kg

(K14107-1)

SKU K14107-1
Brand Lincoln Electric
Shipping Weight 28.0000kg
Shipping Width 0.400m
Shipping Height 0.700m
Shipping Length 0.400m
