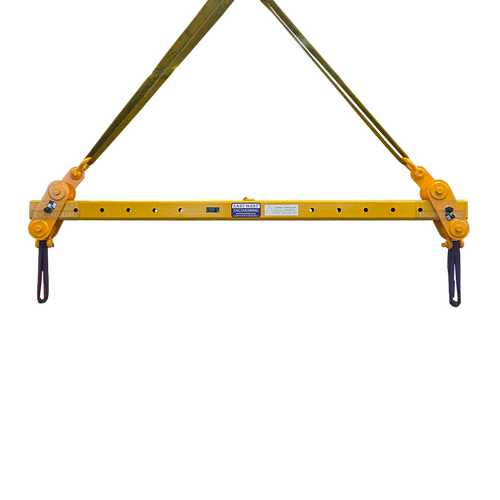

Multi Position Spreader Bar [WLL 20T x 3.3m Length]

SKU: CSMP20X3.3

POA

Share:
  • Ready to Dispatch


Calculate Shipping

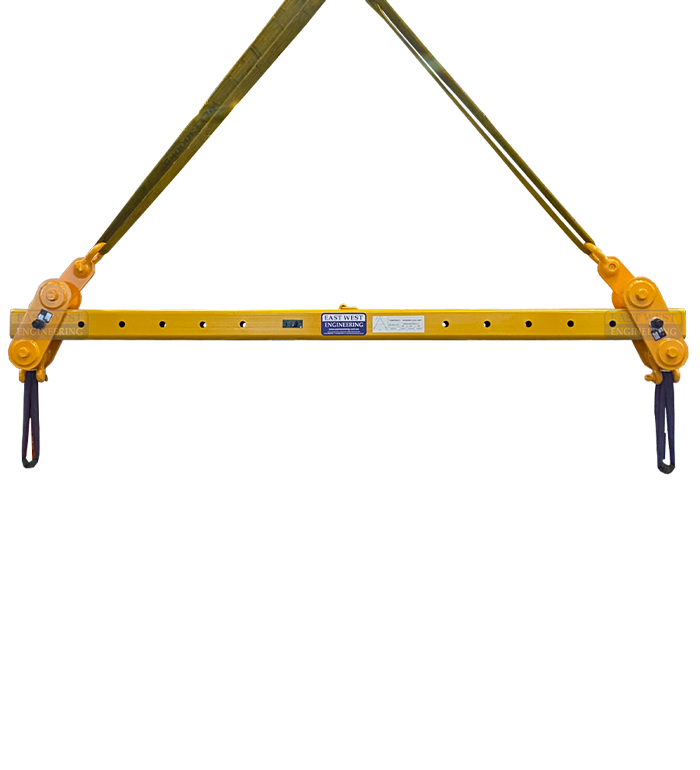

The CSMP Multi Position Spreader Bar is designed to provide support, stability and minimising lateral forces during lifting operations by crane, to ensure heavy loads are safely transported and placed onsite.


FEATURES:
• Multiple lifting positions
• 20, 48 & 100 tonne capacity models available
• Available in 3 standard bar lengths 3.3, 6 or 8m
• Other lengths and capacities available on request
• Shackles supplied
• Certified to the relevant Australian Standards
• Enamel paint finish

Supplied standard as flatpack (for on-site assembly)

 Model


Working
 Load Limit
(kg)
 Length

(mm)
 No. of Lift
Positions

Min.
 Lift Centre
(mm)
Max.
 Lift Centre
(mm)
Unit
 Weight
(kg)
 CSMP20X3.3  20,000 3300 6 1000 3000 261
 CSMP20X6 20,000 6000 8 1500 5700 359
 CSMP20X8 20,000 8000 11 1700 7700 434
 CSMP48X3.3 48,000 3300 6 1000 3000 520
 CSMP48X6 48,000 6000 8 1500 5700 658
 CSMP48X8 48,000 8000 11 1700  7700 760
 CSMP100X3.3   100,000 3300 6 1000 3000 1235
 CSMP100X6 100,000 6000 8 1500  5700 1525
 CSMP100X8 100,000 8000 11 1700 7700 1740



NOTE: Working load limit has been calculated on a 60° chain angle setup.

(CSMP20X3.3)

SKU CSMP20X3.3
Brand East West Engineering
