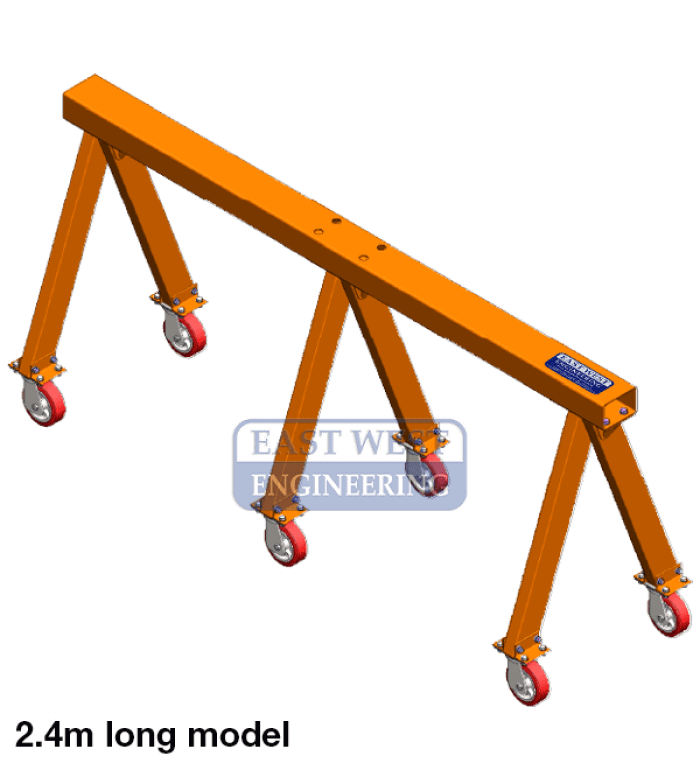

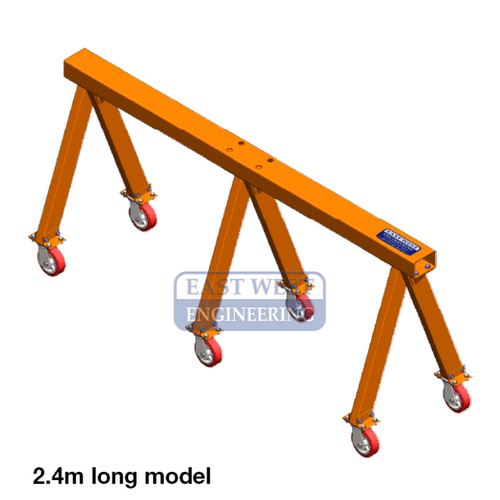

Mobile Support Trestle (Flat Pack) w/Wheels - 900 x 2400mm

SKU: ATSW90-240

POA

Share:
  • Ready to Dispatch


Calculate Shipping

The ATSW Support Trestle with lockable wheels is designed to safely support industrial loads around the workplace or construction site.  These heavy duty steel units come in a range of sizes to suit various applications.

Features:
• Heavy duty steel construction for maximum load support
• Optional rubber profiles (ATR120) protect the load from damage and help prevent movement
• Lockable wheels allow manoeuvrability around the workplace
• Available in standard models (ATS) without wheels
• Available in models with adjustable height (ATSJ)
• Available in models with adjustable height and lockable wheels (ATSJW) for complete flexibility
• Easy to assemble
• Ideal for industrial or construction applications
• Design & engineered to relevant Australian Standards
• Enamel paint finish

Supplied standard as flatpack (for on-site assembly)

Model


 Distributed
Load
(kg)
 Length
(mm)


 Height
(mm)


 No. of
 Legs


Unit
 Weight
(kg)
 ATSW90-120  2000 1200 900 2 54
 ATSW110-120  2000 1200 1100 2 64
 ATSW90-240  3000 2400 900 3 89
 ATSW110-240  3000 2400 1100 3 104

(ATSW90-240)

SKU ATSW90-240
Brand East West Engineering
Shipping Weight 89.0000kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 2.400m
