TradeQuip Hydraulic Long Ram to Suit Engine Crane - 8,000Kg

SKU: 2008

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

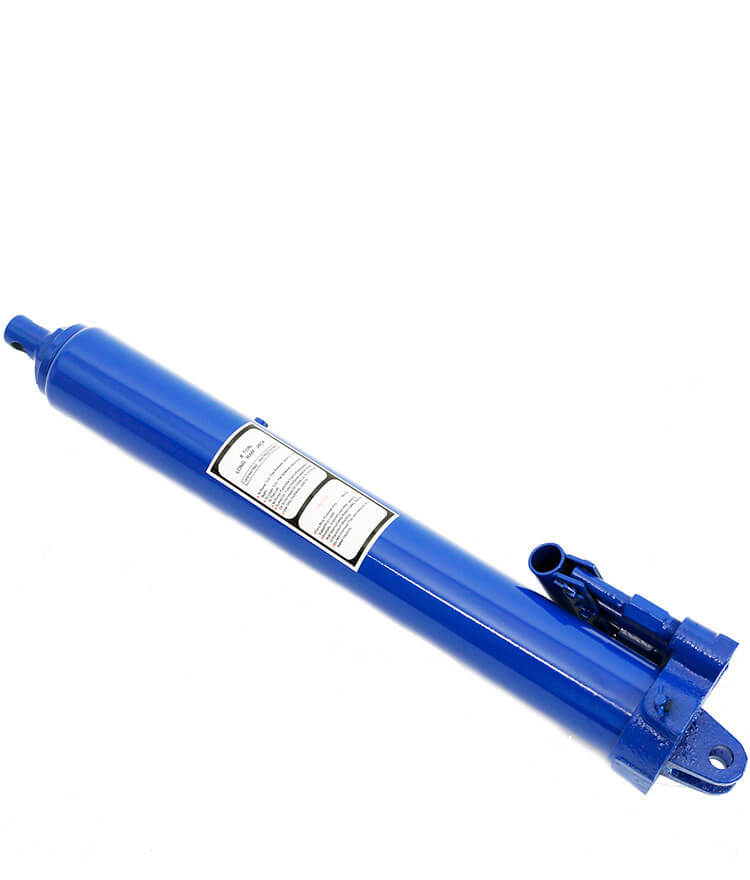

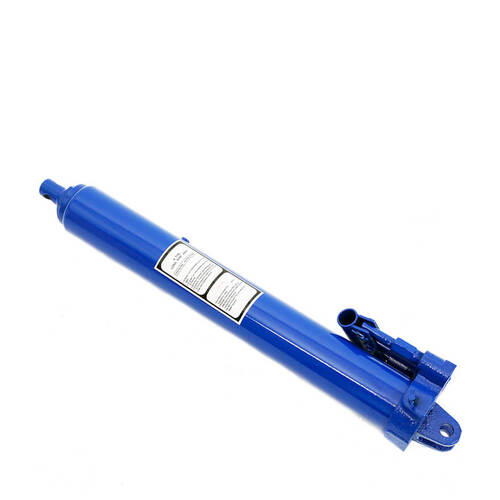

This twin piston TradeQuip "Made for the Trade" 8,000kg Long Hydraulic Ram is the ideal replacement jack for use on TradeQuip hydraulic engine cranes. Mounts directly onto the engine crane and features a slow release function while providing a long 630–1135mm lift range. High quality large diameter twin cylinder hydraulic pump unit results in Quick Lift action, lower oil pressure needed to raise the load, which reduces wear and extends service life. 100% factory vertical load tested for reliability and safety. For vertical use only.

Replacement long hydraulic ram. Suitable replacement for TradeQuip 1001 engine crane.

Features

  • Double action "Quick Lift" design for quick positioning without load
  • Built in 'Overload Protection'
  • Constructed of high grade steel to exacting specifications for strength and durability
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to prevent rust
  • Paint is oil, grease and dirt resistant
  • Factory filled with high quality hydraulic jack oil, which offers better corrosion resistance and high/low temperature flexibility
  • Includes lift handle for easy operation

Specifications

  • Safe Working Capacity: 8,000kg
  • Minimum Length: 630mm
  • Maximum Length: 1135mm
  • Ram Pin Hole: 16mm dia.  35mm Outside Ram
  • Ram Diameter: 80mm
  • Clevis Base Pin Hole: 16mm dia
  • Clevis Base:  25mm Inside  -  45mm Outside
  • Base Width: 129mm
  • Nett Weight: 10.5kg
  • Carton: 700 x 170 x 150mm
  • Gross Weight: 11.5kg

Intended Use

As a direct replacement for the hydraulic unit on a 1001T TradeQuip 1200kg Engine Crane.

(2008)

SKU 2008
Barcode # 9332105002087
Brand TradeQuip
Shipping Weight 12.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.700m
Shipping Cubic 0.017850000m3
