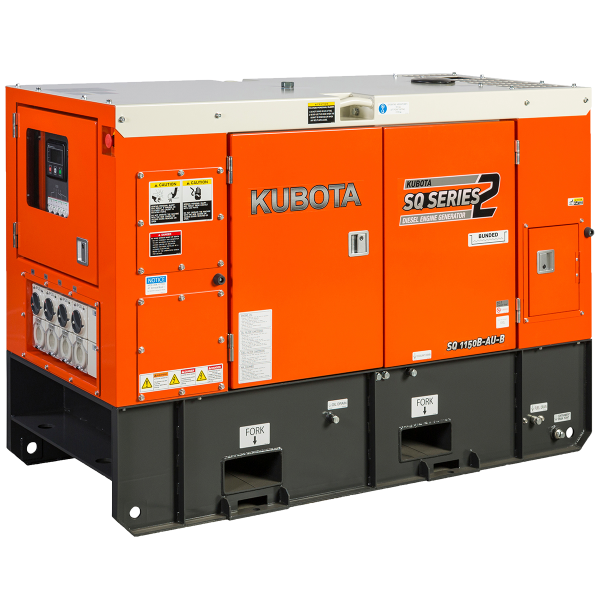

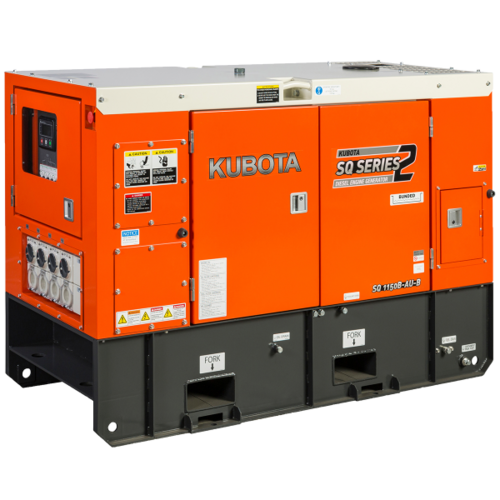

Kubota Diesel Generator 16kVA - Single Phase
SKU: SQ1150B-AU-B
SQ1150 DIESEL GENERATOR Single Phase
- The Kubota SQ-1150B-AU-B diesel generator is a single phase, four-pole, compact diesel generator with a capacity of 15kVA at 1500RPM and is available to work at 240 volts and runs a current (A) of 46.7 amps. With a 24-hour run time @ 75% load, full sound attenuation for super quiet operation, high fuel efficiency and low emissions, it’s a premium choice for a wide range of applications, including agriculture, tradespeople, hire, emergency services and the mining and construction industries.
- The SQ-1150B-AU-B comes with our world-renowned V2203 diesel engine, built to withstand Australia’s toughest conditions. It’s ready to plug in and get to work fast straight off the bat, and you can use it as your primary power source by plugging it straight into your meter box.
- Fully bunded for your peace of mind in case of engine failure or fuel leaks, it is factory fitted with digital controller and 2-wire auto start model for solar applications. Power when you need it.
Features:
- Brushless, self-exciting type alternator delivers reliable, high-quality power.
- Sound levels at full load and no load are minimised due to the quieter cooling fans, oversized muffler and noise absorbing ducts within the cabinets.
- Centre lifting lugs and fork lift slots ensure easy transportation.
- Single sided access for quick inspection and easy maintenance.
- All rotating parts enclosed in a sturdy lockable enclosure.
- Standard with manual key start and hard wire connection to output circuit breaker.
- Standard with Digital Control Panel- DSE4520.
Specifications:
| Set | Fuel | Diesel |
| Fuel Tank Capacity (L) | 62 | |
| Operating Hours | 9.7 @ Full Load | |
| Starting System | Electric | |
| Weight (kgs) | 730 | |
| Sound Levels | 63dBA @ 7m | |
| Dimensions (mm) | 1675 x 780 x 970 | |
| Engine | Model | V2203-EBG |
| Type | Vertical Water Cooled Diesel Engine | |
| Displacement (cc) | 2197 | |
| No of Cylinders | 4 | |
| Bore & Stroke (mm) | 87 x 92.4 | |
| Rated Output | 18.4kW @ 1500rpm | |
| Alternator | Type | Revolving Field |
| Max Output | 16.0kVA (16.0kW) | |
| Rated Output | 15.0kVA (15.0kW) | |
| Voltage | 240 | |
| Frequency | 50Hz | |
| Current | 62.5Amps | |
| Power Factor | 1 | |
| Poles | 4 | |
| Voltage Regulation | AVR |
---
If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.
Alternatively, get in touch with our friendly team via phone on 1300 378 900
Why is this product priced on application (POA)?
For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.
---
Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.
(SQ1150B-AU-B)
| SKU | SQ1150B-AU-B |
| Brand | Kubota |
| Shipping Weight | 915.0000kg |
| Shipping Width | 1.000m |
| Shipping Height | 0.400m |
| Shipping Length | 2.000m |
