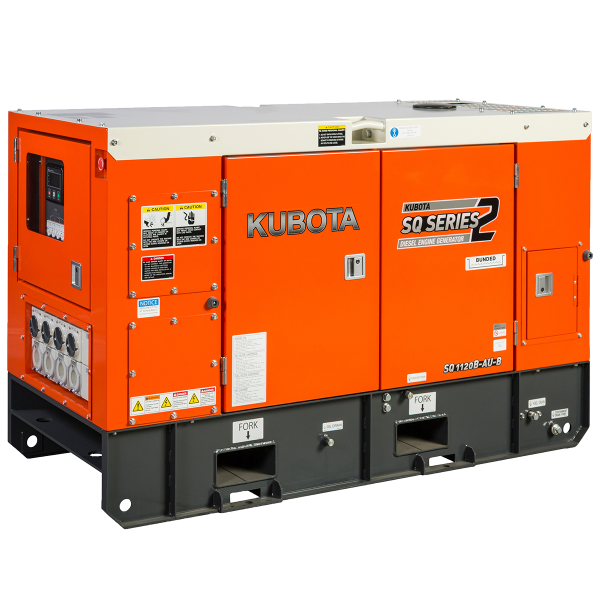

Kubota Diesel Generator 11.8kVA - Single Phase

SKU: SQ1120B-AU-B

POA

Share:
  • Dispatch in: 1-2 days


Calculate Shipping

SQ1120 DIESEL GENERATOR Single Phase

  • The Kubota SQ1120 is a premium compact single phase four pole diesel generator with a capacity of 11.2kVA at 1500RPM. Fully sound attenuated for a super quiet operation.

Features:

  • Brushless, self-exciting type alternator delivers reliable, high-quality power.
  • Sound levels at full load and no load are minimised due to the quieter cooling fans, oversized muffler and noise absorbing ducts within the cabinets.
  • Centre lifting lugs and fork lift slots ensure easy transportation.
  • Single sided access for quick inspection and easy maintenance.
  • All rotating parts enclosed in a sturdy lockable enclosure.
  • Standard with manual key start and hard wire connection to output circuit breaker.
  • Standard with Digital Control Panel- DSE4520.

Specifications:

     SQ1120
         Set Fuel Diesel
Fuel Tank Capacity (L)      62
Operating Hours 20.7 @ Full Load
Starting System Electric
Weight (kgs) 640
Sound Levels 61dBA @ 7m
Dimensions (mm) 1675 x 780 x 970
       Engine Model D1703-EBG
Type Vertical Water Cooled Diesel Engine
Displacement (cc) 1647
No of Cylinders 3
Bore & Stroke (mm) 87 x 92.4
Rated Output 13.6kW @ 1500rpm
    Alternator     Type Revolving Field
Max Output 11.8kVA (11.8kW)
Rated Output 11.2kVA (11.2kW)
Voltage 240
Frequency 50Hz
Current 46.7Amps
Power Factor 1
Poles 4
Voltage Regulation AVR

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.---

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(SQ1120B-AU-B)

SKU SQ1120B-AU-B
Brand Kubota
Shipping Weight 780.0000kg
Shipping Width 1.000m
Shipping Height 1.400m
Shipping Length 2.000m
