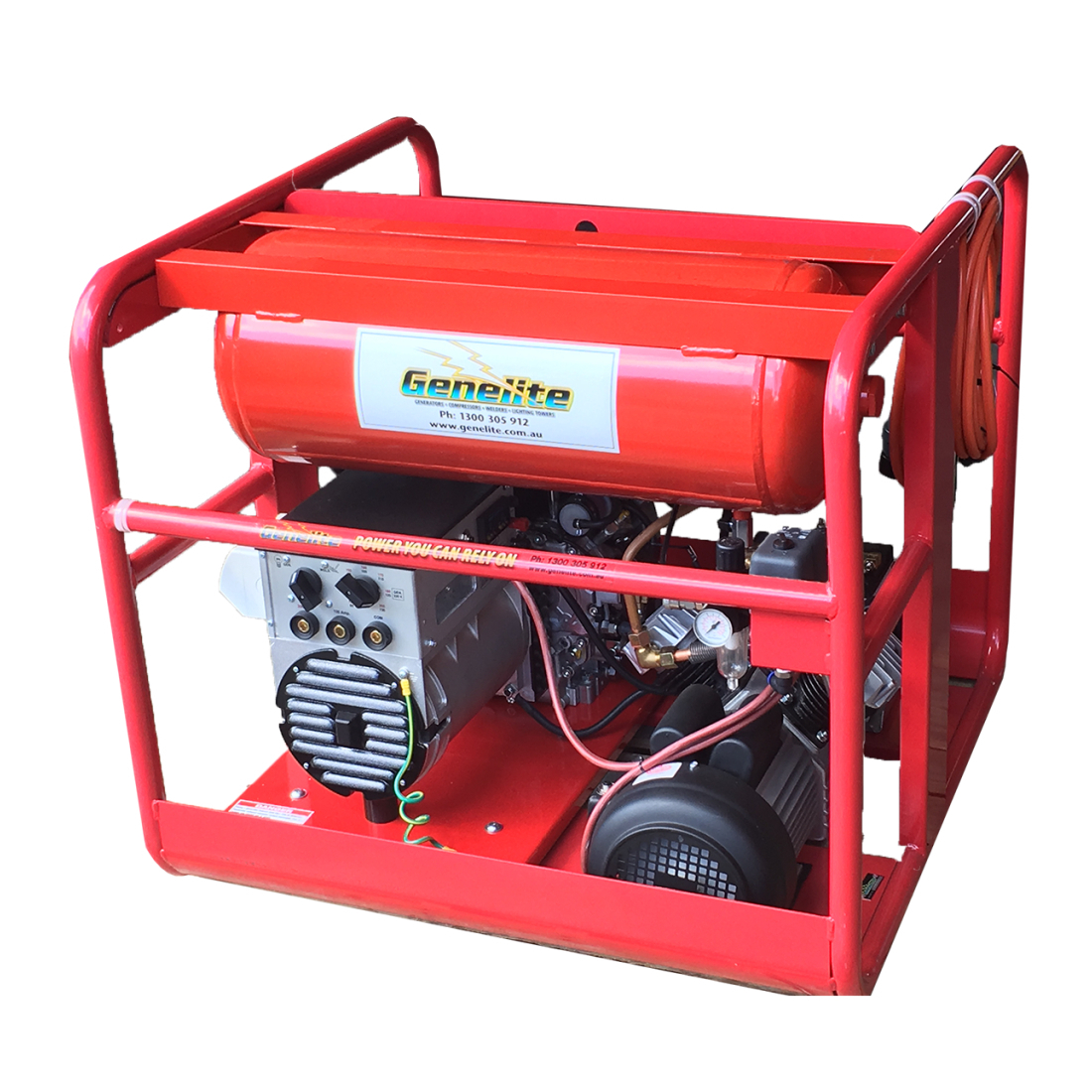

Kohler Powered Diesel 4 in 1 Workstations

SKU: GKDWS200E-HD

POA

Share:
  • Dispatch in: 1-2 days


Calculate Shipping
The Genelite range of heavy duty diesel welders and workstations are up for any job no matter how big or small. This 4-in-1 workstation is versatile. This model includes some heavy duty features including a powerful generator, compressor, welder and battery charger. Using the highest quality diesel Kohler engines, the Genelite range is Power You Can Rely ON!


Model: GKDWS200E/HD

  • Type: Portable
  • Speed: 3000 RPM
  • Phase/Voltage: 1/240
  • Frequency: 50 Hz
  • Power kVA / kW: 7.0kVA / 5.6kW
  • Welder Duty Cycle 35%: 200 amp AC
  • Welder Duty Cycle 60%: 180 amp AC
  • Strike Voltage: 75 V
  • Compressor: 218 L/M
  • Compressor Tank: Size 27-30 Litres
  • Battery Charger: 12 VDC 10 amp

Engine:

  • Manufacturer: Kohler
  • Engine Model: 15KD440
  • Type: O.H.V.
  • Starting: Electric with manual back up
  • Fuel: Diesel
  • Run Time: 2.7 hr
  • Consumption: 2.4 L/h
  • Tank Capacity: 5 L
  • HP 3600 rpm max: 10.9
  • Cubic Capacity: 442 Cm3
  • Oil Capacity: 1.5 L

Alternator:

  • Alternator Brand: Mecc Alte
  • Type: Brushless
  • Harmonic Distortion: Less than 5%
  • Protection Class:  IP 23
  • Insulation Class: Class H

Accessories:

  • Outlet: 10amp + 15amp switched with thermal overload
  • Leads: 5m welding leads with hand piece & earth clamp

Dimensions & Weight:

  • Length 900
  • Width 740
  • Height 750
  • Weight 120 Kg (average depending upon options)

Options:

  • Full mine spec fit out
  • Earth stake
  • Petrol or diesel engine
  • Battery isolator - IP66 safety kits
  • Starter isolator - ELCB
  • Fire extinguisher - Remote start
  • Emergency stop button - Long range fuel tank
  • Jump start receptacle - Hour meter
  • Numerous other options available
---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

 Width      176mm
 Opening Height     1350mm
 Lost Load  56mm
 Unit Weight  126kg
 Finish  White enamel paint

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information



(GKDWS200E-HD)

SKU GKDWS200E-HD
Brand Kohler
Shipping Weight 126.0000kg
Shipping Width 1.100m
Shipping Height 0.800m
Shipping Length 1.100m
Shipping Cubic 0.499500000m3
