Hydraulic Drum Grab/Rotator (1000kg WLL) w/ Hydraulic Power Pack

SKU: DC-GR2-HPP

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

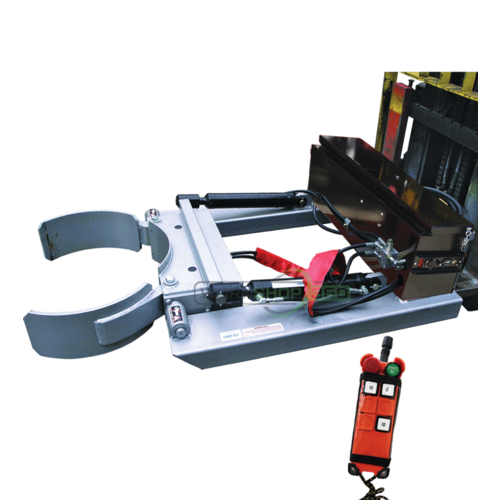

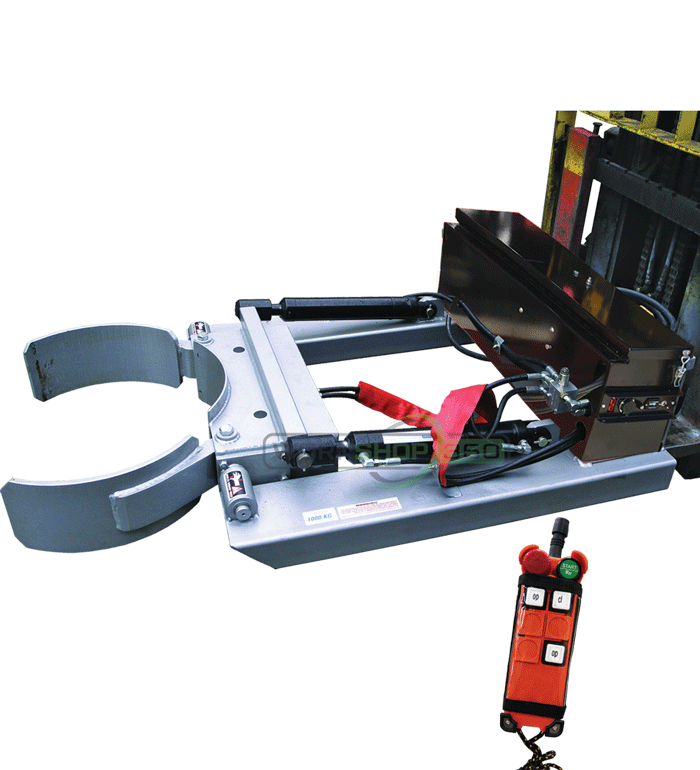

The DC-GR2-HPP Hydraulic Drum Rotator is fitted with a self contained battery/electric operated hydraulic power pack (HPP) to hydraulically grab, lift and rotate a 205 litre drum, allowing the safe and reliable emptying of drums without the need to connect to the forklift hydraulic system.  This unit can pick a single drum from a pallet of 4, without disturbing the other 3.

Features:

  • Use with existing forklift to grab, lift and rotate a drum 130 degrees, allowing for emptying of product
  • Allows safe transport of drums around the worksite
  • Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
  • Fitted hydraulic power pack eliminates the need to connect to forklifts hydraulic system
  • Operation of the attachment is via a remote controlled pendant
  • Slip-on attachment allows quick connection to a forklift
  • Commonly used in the food processing, recycling and mining industry
  • Enamel paint finish

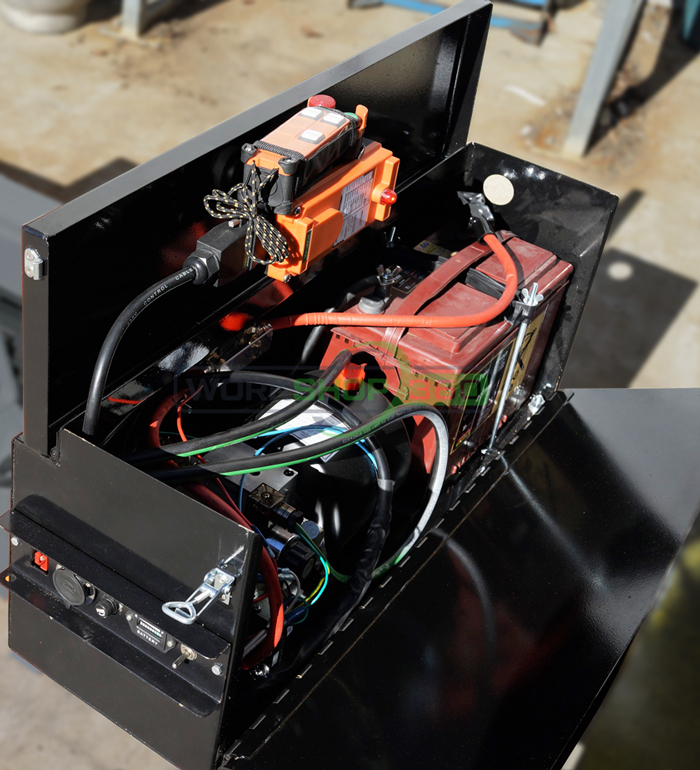

Hydraulic Power Pack (HPP) Features:

  • Remotely controlled pendant (50m distance range) with spare pendant supplied
  • 12-Volt DC Hydraulic Pump
  • Battery & battery charger
  • Robust cabinet box protects all components
  • Quality hydraulic components
  • Incorporated safety features include a two-button opening function and emergency stop
  • 180 AMP fuse protects the electrical circuit whilst a secondary 10 AMP fuse adds further protection to the remote control system & solenoid coils

Specifications:

 Working Load Limit (WLL)    1000kg
 Load Centre  1300mm
 Rotation  130°
 Unit Weight  295kg
 Fork Pocket Size  185 x 65mm
 Fork Pocket Centres  874mm

---

If you would like to request pricing for this product, simply click the 'Request Quote' button above and leave your name and contact details. Our team will aim to get back to as soon as possible (often within the same day), with the best prices and shipping solutions available.

Alternatively, get in touch with our friendly team via phone on 1300 378 900

Why is this product priced on application (POA)?

For our higher value products, we want to ensure that you are getting the best deal possible when it comes to product pricing, shipping, and warranty. We offer a range of payment options and have the knowledge to guide you on your purchase if/when required.

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(DC-GR2-HPP)

SKU DC-GR2-HPP
Brand East West Engineering
Shipping Weight 345.0000kg
Shipping Width 1.200m
Shipping Height 0.600m
Shipping Length 1.570m
Shipping Cubic 0.678000000m3
