Hydraulic Drum Rotator (PBO) - 10t

SKU: DC-R2PBO

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

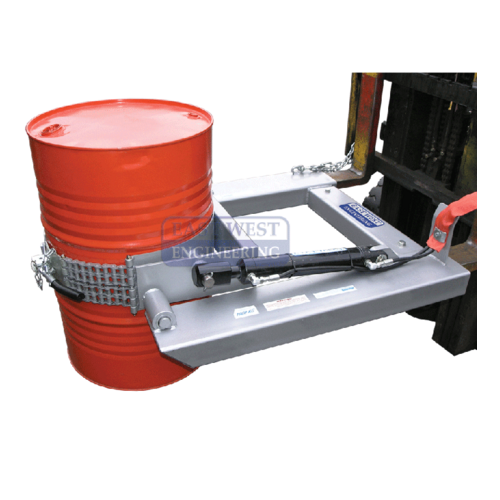

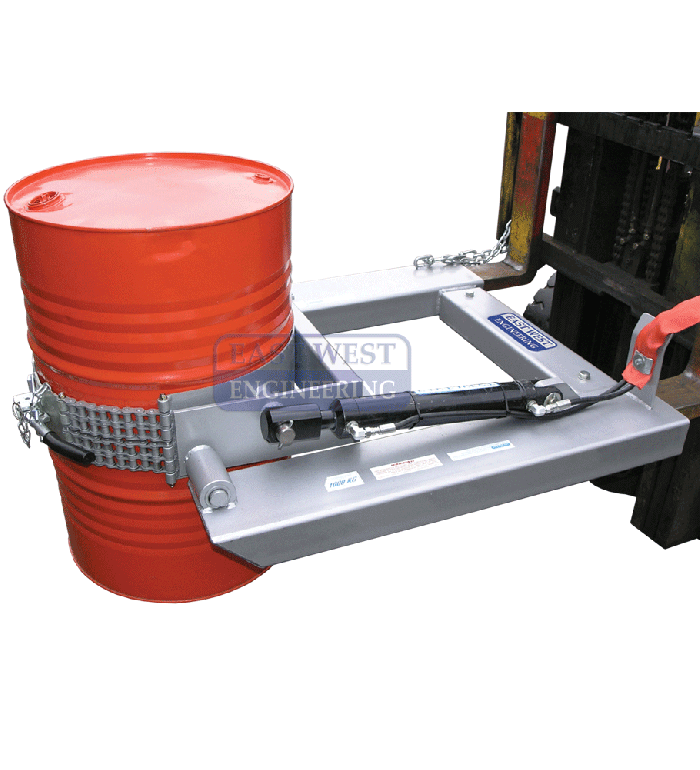

The DC-R2 Hydraulic Drum Rotator is a heavy-duty 205 litre drum lifter with hydraulic rotation ability, allowing the safe and reliable emptying of drums.

FEATURES:

  • Use with existing forklift to lift and rotate a drum 130 degrees, allowing for emptying of product
  • Allows safe transport of drums around the worksite
  • Heavy lift capacity suits a 205 litre drum weighing up to 1000kg
  • Belly strap and eccentric lock secures drum in position
  • Rotation provided by forklift hydraulics and controlled by the 3rd function lever
  • Slip-on attachment and quick connect hydraulic couplings allows quick connection to a forklift
  • Commonly used in the food processing, recycling and mining industry
  • Enamel paint finish

Plastic Barrel Option (PBO)
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

SPECIFICATIONS:

 Working Load Limit (WLL)    1000kg
 Load Centre  1050mm
 Rotation  130°
 Unit Weight  135kg
 Fork Pocket Size  185 x 65mm
 Fork Pocket Centres  874mm

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(DC-R2PBO)

SKU DC-R2PBO
Brand East West Engineering
Shipping Weight 274.0000kg
Shipping Width 1.200m
Shipping Height 0.600m
Shipping Length 1.400m
