Glass A Frame - 1800 x 1150 x 1620mm

Current lead time is 2-3 weeks

SKU: AFT115-120

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

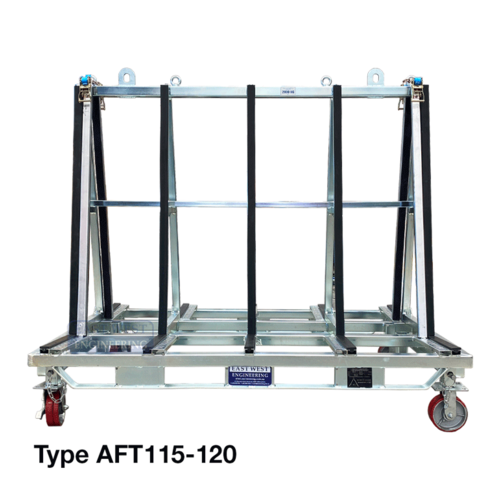

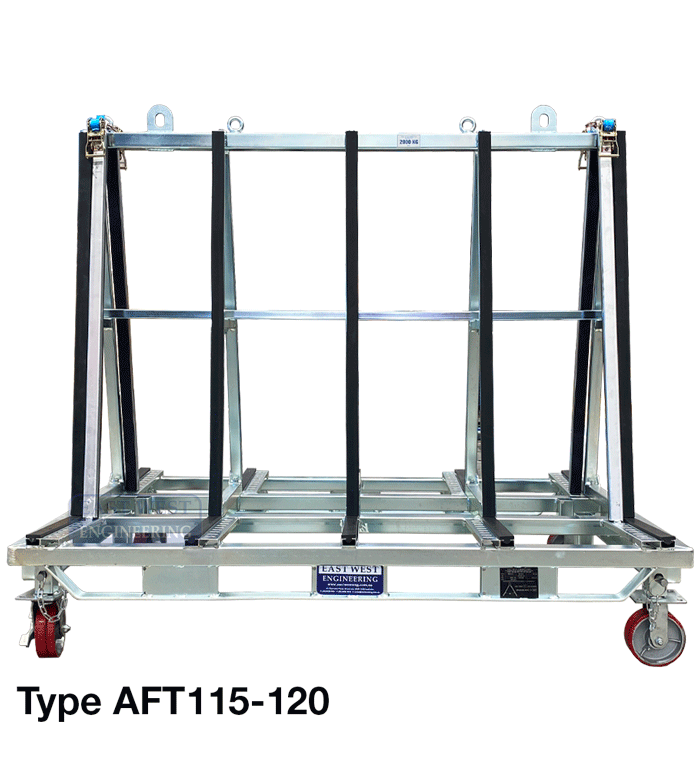

The AFT Glass A Frame is designed for storing and transporting glass, stone and other sheet materials by forklift, crane or wheeled manually.

FEATURES:

  • Suitable for storing and transporting glass, stone and other sheet materials
  • Ideal for use in the factory and when transporting materials to site
  • Load is secured by 4 adjustable clamp bars
  • Detachable ratchet straps supplied
  • Rubber profiles protect the load from damage and help prevent movement
  • Heavy duty A Frame construction for maximum stability
  • 4-way fork access and crane lugs fitted for transport by forklift or crane
  • 150mm poly wheels with brakes allow easy manoeuvering around the worksite
  • Wheel kit is designed for quick release with a provision for storage when not in use
  • Frame can be loaded onto the back of a truck by forklift or crane
  • High load carrying capacity (1500 & 2000kg models available)
  • AFT80-120 base is sized (800mm) to use less space on a ute tray and fit through a standard doorway
  • AFT115-120 base is designed with racking locators to suit storage in highbay racking
  • Zinc finish

Supplied standard as flatpack (for on-site assembly).

SPECIFICATIONS:

 Model  Working Overall Maximum Front Front Unit
  Load Dimensions Load Pocket Pocket Weight
  Limit W x D x H* Width** Size Centres (kg)
   (kg) (mm) (mm) (mm) (mm)
 AFT115-120 2000 1800 x 1150 x 1620 340 250 x 80 450 130

* Height includes wheels
** Maximum width of load that can be stored on each side of trolley

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(AFT115-120)

SKU AFT115-120
Brand East West Engineering
Shipping Weight 345.0000kg
Shipping Width 1.150m
Shipping Height 0.500m
Shipping Length 1.800m
