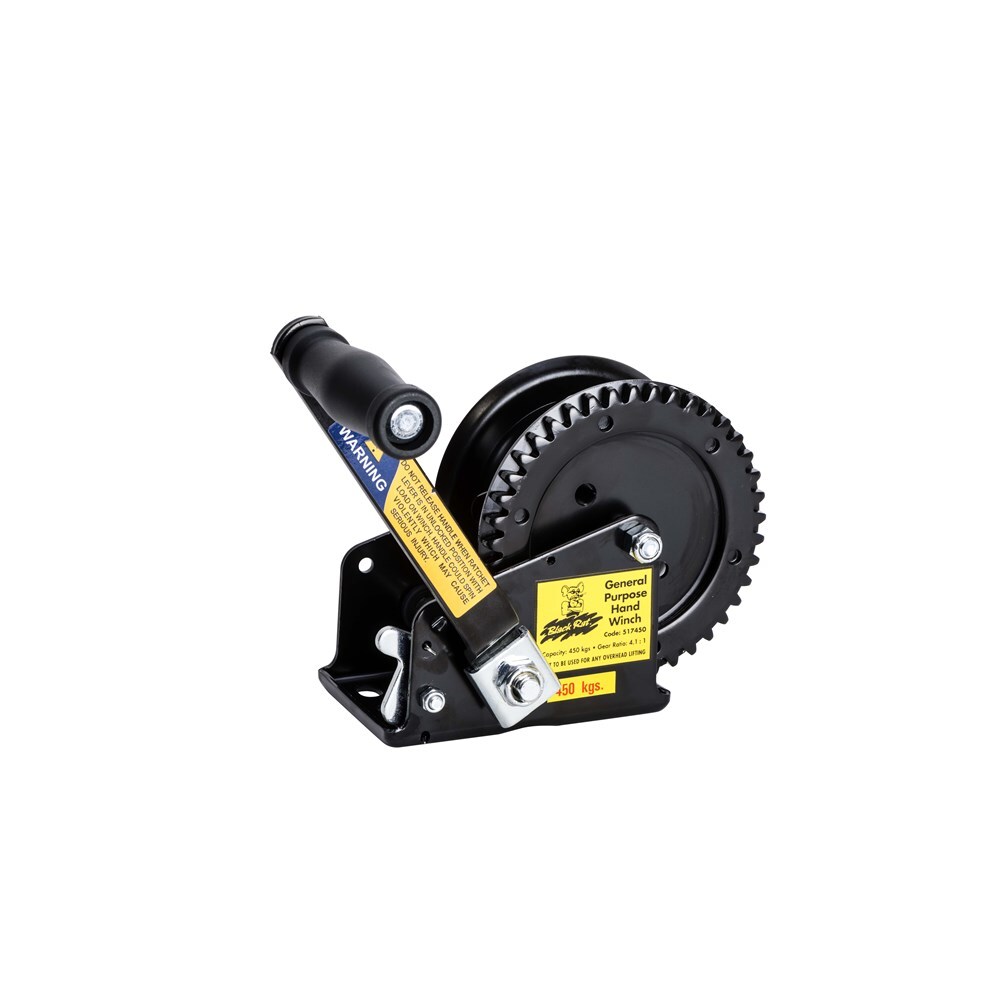

General Purpose Hand Winch - 1.25t

SKU: 517125

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

This general purpose hand winch is manufactured by Beaver.



Specifications:

Model No - Bare 517360 517450 517630 517900 517125
Rated Capacity - Pulling 360kg 450kg 630kg 900kg 1250kg
Type of Brake Gear Gear Gear Gear Gear
Max Hand Force Req. 120kg 150kg 210kg 300kg 375kg
Gear Ratio 3.2:1 4.1:1 4.1:1 4.1:1 + 10:1 5.1:1 + 12.2:1
Hub Diameter 18mm 18mm 18mm 24mm 24mm
Handle Length 150mm 186.5mm 186.5mm 251.5mm 251.5mm
Unit Weight - Bare 2.23kg 2.7kg 2.9kg 6.3kg 7.6kg
Wire Rope Diameter 5mm 5mm 5mm 5mm 6mm
Wire Rope Construction 7x19 7x19 7x19 7x19 7x19
Grade of Wire 1770-2070 1770-2070 1770-2070 1770-2070 1770-2070
Wire Rope Finish   Hot Dipped Galvanised     Hot Dipped Galvanised     Hot Dipped Galvanised     Hot Dipped Galvanised     Hot Dipped Galvanised
Wire Rope Storage Capacity   10m 20m 20m 20m 25m

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(5171250)

SKU 5171250
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
