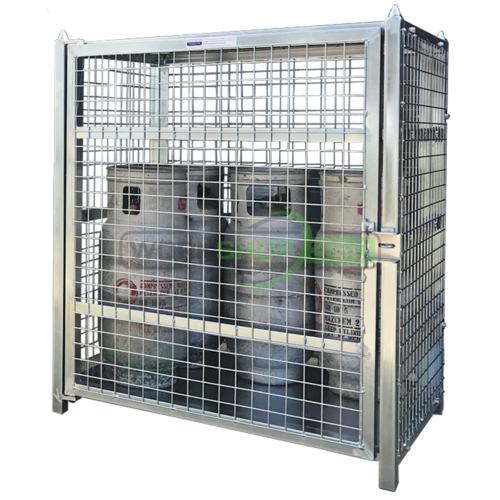

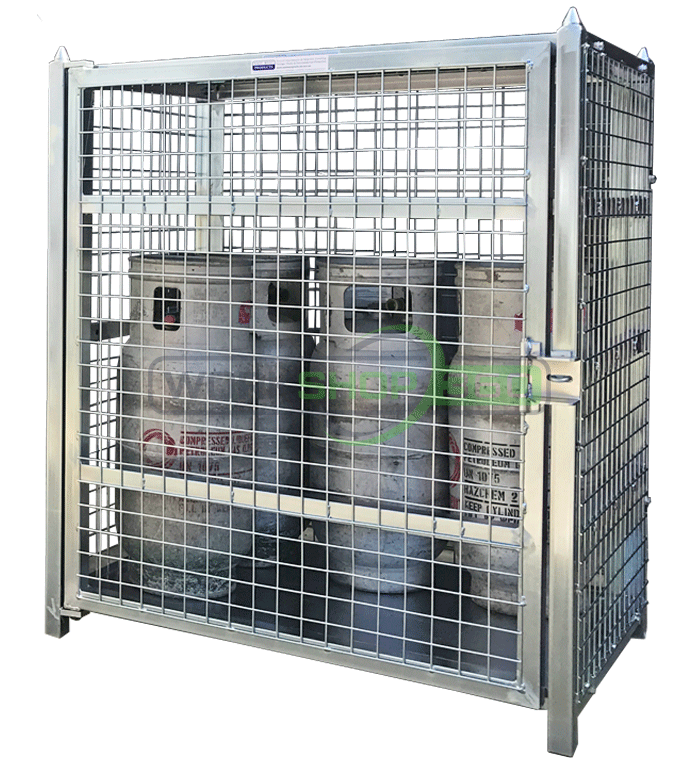

Gas Cylinder Cage (12 x 9kg Bottles) - 1080 x 760 x 1285mm

Current lead time is 2-3 weeks

SKU: SGB129

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

The SGB129 Gas Cylinder Storage Cage is a heavy duty lockable cage ideally suited for storage of up to 12 x 9kg BBQ gas bottles.  The bolted centre shelf and vertical supports can be excluded during construction for storage of up to 6 x forklift gas cylinders.  This stoage cage is also suitable for other uses like firewood storage in service stations where easy access and excellent security is a requirment.

FEATURES:

  • Stores up to 12 x 9kg BBQ gas bottles
  • Stores up to 6 x 18kg forklift gas bottles when mid shelf is excluded
  • Tamper-proof lock guard prevents cutting of the padlock by bolt cutters, along with anti-tamper gate hinges
  • Sturdy construction with bump rails to protect the high visibility mesh sides
  • Stack 3 high when empty and 2 high when fully loaded
  • Sheet metal shelves allow easy sliding of cylinders to the back of the cage
  • Sheet metal roof provides weather protection
  • Forklift provision is provided under the cage for transport around the worksite
  • Optional wheel kit available on request
  • Zinc finish for long life corrosion protection

SPECIFICATIONS:

 No. of Bottles (with mid shelf)  12 x 9kg
 No. of Bottles (mid shelf excluded)    6 x 18kg
 Working Load Limit (WLL)     250kg
 Overall Dimensions  1080 x 760 x 1285mm
 Unit Weight  106kg



Supplied 'flatpack' (SGB129) for on-site assembly or may be supplied 'fully assembled' (SGB129A).

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(SGB129)

SKU SGB129
Brand East West Engineering
Shipping Weight 115.0000kg
Shipping Width 0.760m
Shipping Height 0.550m
Shipping Length 1.300m
Shipping Cubic 0.488000000m3
