Fixed Jib (Long) - 10t

Current lead time is 2-3 weeks

SKU: SFJCL100

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

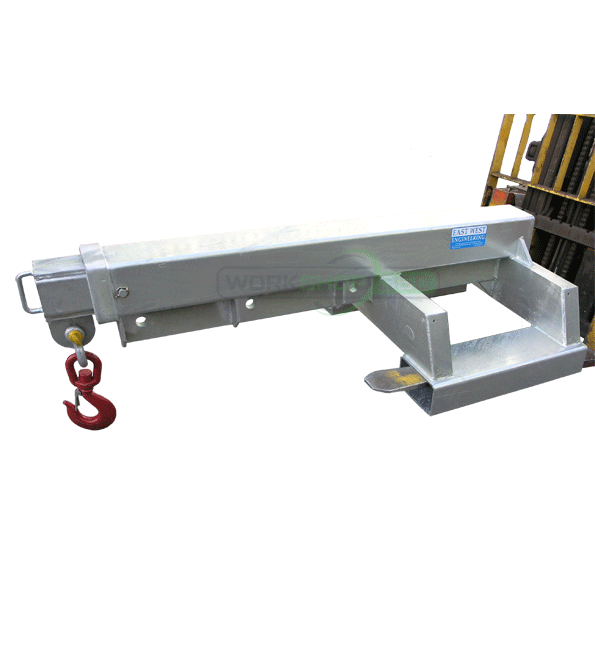

The SFJCL100 Telescopic Jib is an affordable 10 tonne general purpose long reach forklift jib designed to suit most lifting and maintenance requirements of larger forklifts.

FEATURES:

  • 3.56m reach when fully extended allowing for long reach lifts
  • 2.19m overall length when retracted
  • Wide pockets suit forklifts with hydraulic tine positioners
  • Supplied with safety swivel hook and shackle
  • Slip-on attachment and safety chain allows quick connection to a forklift
  • Zinc finish

SPECIFICATIONS:

 Working Load Limit (WLL)      10,000kg
 Load Centre  920mm
 Unit Weight  515kg
 Fork Pocket Size  230 x 110mm
 Fork Pocket Centres  875mm



Working Load Limit (WLL) per Position

 Position

1

2

3

4

5

6

7

8

  Extension

920

1380 1805 2045 2425 2805 3185   3565

WLL (kg)

  10000

  8550     7600     6600     5000     2600     1520   960

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(SFJCL100)

SKU SFJCL100
Brand East West Engineering
Shipping Weight 515.0000kg
Shipping Width 1.200m
Shipping Height 0.600m
Shipping Length 2.200m
Shipping Cubic 1.485000000m3
