Filtration Unit - 1200 x 1200 x 1420mm

SKU: CSS115

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

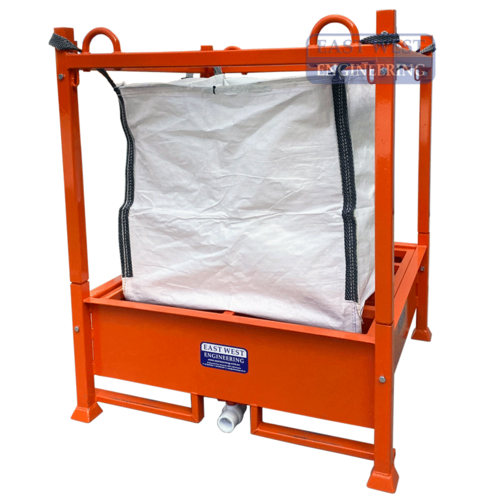

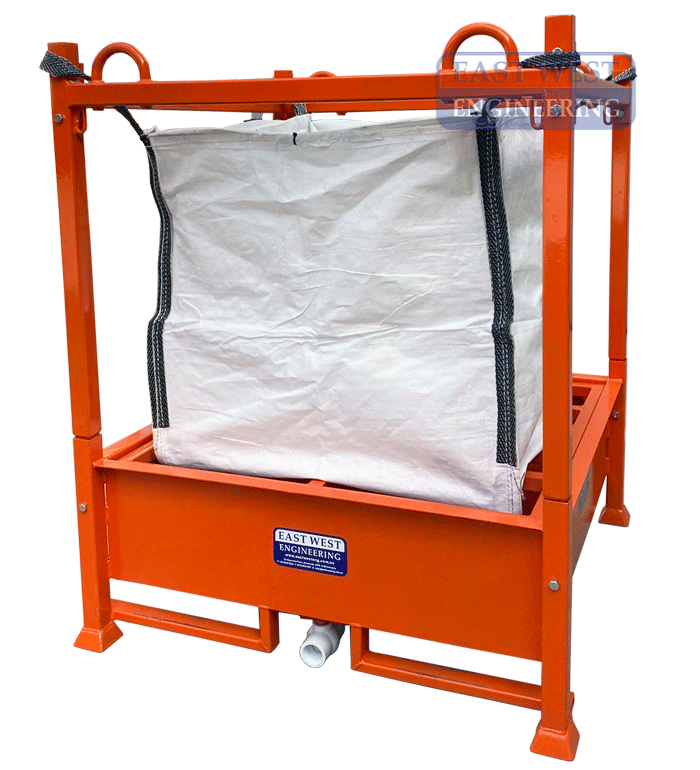

The CSS115 Filtration Unit is designed for the safe and convenient handling of concrete washwater by dealing with the harmful waste on site. The purpose constructed filtration bag is manufactured from a 300gsm, 900mm cube non-woven geotextile fabric inner layer with a bulk bag protective external. Sand, gravel and suspended concrete particles as fine as 80 microns are separated from the concrete slurry generated from the washout of concrete trucks and other equipment onsite and from saw cutting, core drilling, grinding and grooving concrete. Excess water passes through the filter bag and is captured in the holding tank below for testing and treatment.  This unit can also be used as a dewatering station for filtering sediment laden water on sites that need to control the amount of sediment or pollution runoff.

FEATURES:

  • Allows best practice and EPA compliance for handling concrete slurry onsite
  • Suits concrete slurry from truck & equip washout, concrete cutting, coring & grinding
  • Can be used for pumping and filtering sediment from silt laden water
  • Filters and separates washout particles to 80 microns from slurry water
  • Filter bag is suspended from frame for easy removal when full by crane or forklift
  • Washout up to 80 trucks before replacing the supplied filter bag (CSS115FB)
  • Wastewater in tank can be tested and treated without the need for off-site processing
  • 50mm valve fitted standard
  • Fork guides and crane lugs fitted for easy relocation around the site
  • Enamel paint finish

SPECIFICATIONS:

 Working Load Limit (WLL)      1500kg
 Sump Capacity  0.3 cu.m
 Bag Capacity  0.73 cu.m
 Overall Dimensions  1200 x 1200 x 1420mm
 Unit Weight  140kg

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(CSS115)

SKU CSS115
Brand East West Engineering
Shipping Weight 264.0000kg
Shipping Width 1.200m
Shipping Height 0.550m
Shipping Length 1.200m
