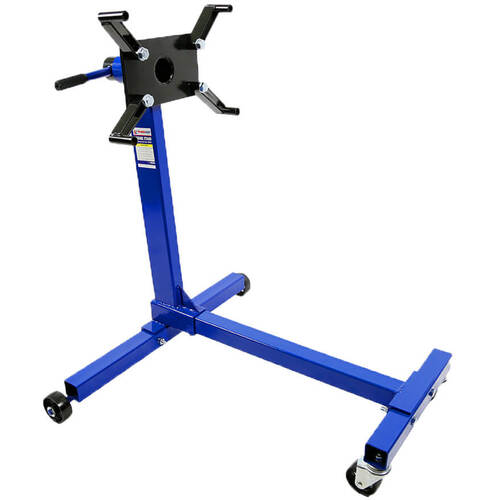

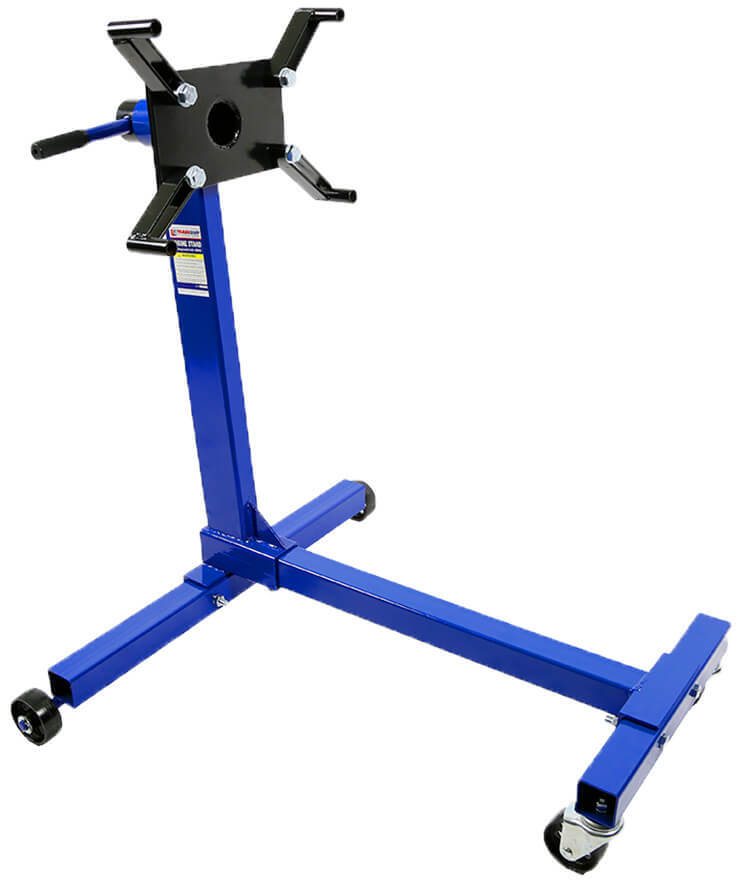

TradeQuip Engine Stand - 450kg

TradeQuip "Made for the Trade" 450kg Engine Stand has a 4-leg design featuring a rugged frame with a 4-hole mounting head that rotates 360°, making the unit ideal for 4,6&8 cylinder engines. When you've got an engine repair job that can’t be completed while the engine block is in the vehicle, this engine stand provides a sturdy support structure to secure the removed engine in mid-air, so you can access any part of it. Use an engine crane to remove the engine from the vehicle, then mount it to the faceplate on this engine stand.

Features:

• Rugged tubular steel frame with attractive durable finish
• 360 degree rotating head that locks in 8 positions
• Slotted mounting head for full adjustment
• Extra wide base for stability and safety
• Easy knockdown and quick assembly design for storing and transporting
• Large diameter wheels and castors for smooth manoeuvring
• Suitable for cast iron/alloy block 4 and 6 cylinder engines and alloy block 8 cylinder engines

 Specifications:

• Safe Working Capacity: 450kg
• Centre Height: 780mm
• Width @fixed wheels: 750mm
• Width @swivel castors: 400mm
• Dimensions: 760(L) x 750(W) x 860(H) mm
• Weight: 21kg
• Carton: 910 x 210 x 180mm

Intended Use:

For safe handling and positioning of most 4 and 6 cylinder passenger car engines during dismantling and re-assembly.
