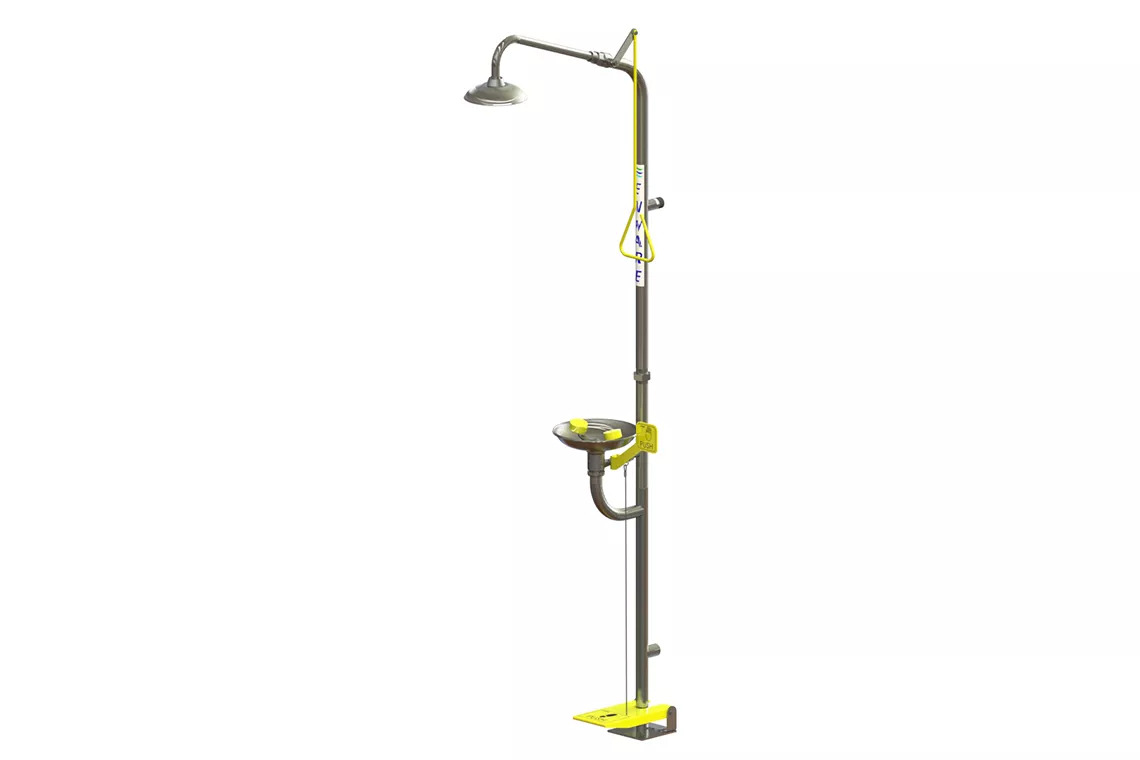

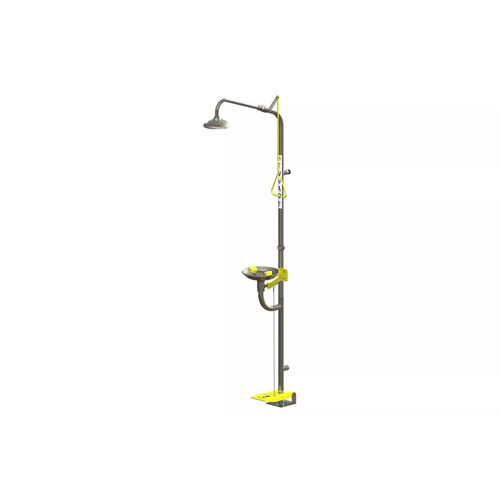

Emergency Stainless Steel Combination Shower with Hand/Foot Operated Eye/Face Wash - Brushed Stainless Finish

SKU: ECE270

POA

Share:
  • Ready to Dispatch


Calculate Shipping

Enware’s emergency safety showers assist in the rapid flushing of contaminants from the body with a deluge of flushing fluid and eye/face wash units help to flush contaminants and irritants from eyes and facial area.

Designed and manufactured in Australia. Stainless steel construction provides superior durability and reliability.

  • Independently tested for compliance to ANSI Z358.1 and AS4775
  • Freestanding for stand-alone operation 316 stainless steel pipe work & stay-open ball valve
  • 316 Stainless steel 200mm (8”) shower head assembly
  • 316 Stainless steel handle with high visibility yellow powder coating
  • Push and foot activated eye/face wash with integral auto-open dust covers
  • Self-draining design reduces Legionella risk, particularly in tepid water applications
  • Eye/face wash features “Vertech™ Technology” where dedicated eyewash and independently angled face wash streams deliver optimum coverage
  • Zero velocity apex point provides more comfort & control of eyes for effective cleansing
  • Solid stainless, low angle foot pedal for easy activation of eye/face wash
  • High visibility yellow powder coated push handle and foot pedal
  • Balanced simultaneous operation

Inlet & Outlet

Inlet Connection: 25 mm (1" BSP)
Waste Water Outlet Size: 38 mm (1-1/2") OD

Water Supply

Water Supply Line Size: Must be hydraulically sized to meet requirements

Flow Rate

Minimum Performance Requirements – Min Working Pressure: 210 kPa Caution should be taken when pressure exceeds 550 kPa (80 psi)kPa

Minimum Performance Requirements – Min Flow Requirements: Shower: 76 lpm (20 US gpm), Eye/ face wash: 26 lpm (6.9 US gpm)

Mounting

Mounting Base Plate: Size: 150 x 150 mm (5 9/10” x 5 9/10”) with 4 Bolt Holes 11 mm (7/16”)

Shipping

Shipping: Weight: approx. 12.7 kg, Dimensions: 1160 x 300 x 250 mm

(ECE270)

SKU ECE270
Brand Enware
Shipping Weight 13.0000kg
Shipping Width 0.280m
Shipping Height 0.250m
Shipping Length 1.180m
