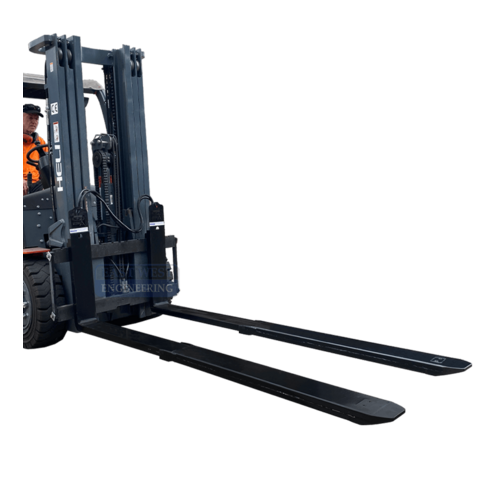

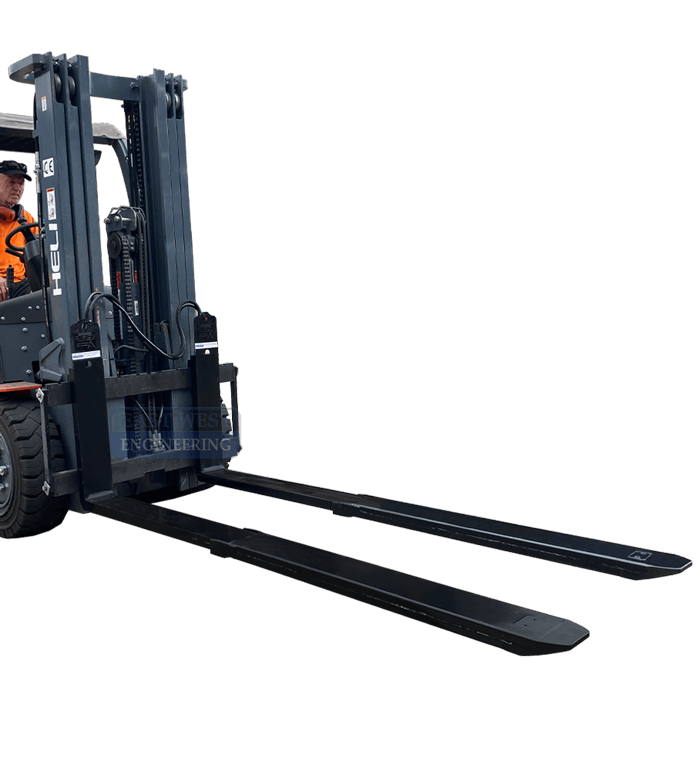

Dual Cylinder Telescopic Forks (3.5t WLL) - 1350mm

Current lead time is 2-3 weeks

SKU: TF4351350-1000

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

Hydraulic TeleFORKS hydraulically extend and retract for double deep stacking and one-sided loading/unloading. These forks help reduce loading times, increase warehouse storage capacity and vastly improve safety.  One-sided loading/unloading eliminates the need to turn the vehicle or drive forklift to the opposite side making the operation safer. Double deep stacking can increase warehouse capacity by up to 30% compared to single deep warehouse operation..

FEATURES:

  • Allows ‘double deep stacking’, increasing warehouse capacity
  • Allows one-sided loading and unloading, saving time and increasing driver safety
  • Phasing cylinders keep fork motion in sync
  • Reinforced heel gives less deflection
  • Easy connection of the forks onto the fork carrier
  • Dual cylinder models provides greater push/pull power, ideal for performing under demanding circumstances
  • Requires one additional hydraulic function
  • Local technical support and spare parts
  • Optional Pallet Stops prevent forks from protruding through to the rear pallet

SPECIFICATIONS:

 Model   Class   WLL @   Cylinders     Length     Extension     Section   Lost  Weight
       600mm LC   per (mm) (mm) w x h   Load     per pair
     (kg)   fork          (mm) (mm)  (kg)
 TF2251200-850 II 2500 single 1200 850 132 x 57 45 162
 TF2251350-1000 II 2500 single 1350 1000 132 x 57 45 177
 TF4251200-850 II 2500 dual 1200 850 162 x 57 45 192
 TF4251350-1000 II 2500 dual 1350 1000 162 x 57 45 212
 TF4351200-850 III 3500 dual 1200 850 162 x 57 45 205
 TF4351350-1000 III 3500 dual 1350 1000 162 x 57 45 225

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(TF4351350-1000)

SKU TF4351350-1000
Brand East West Engineering
Shipping Weight 312.0000kg
Shipping Width 0.900m
Shipping Height 0.800m
Shipping Length 1.300m
