Drum Rotator (Chain Driven) - 400kg WLL

SKU: DER40C

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

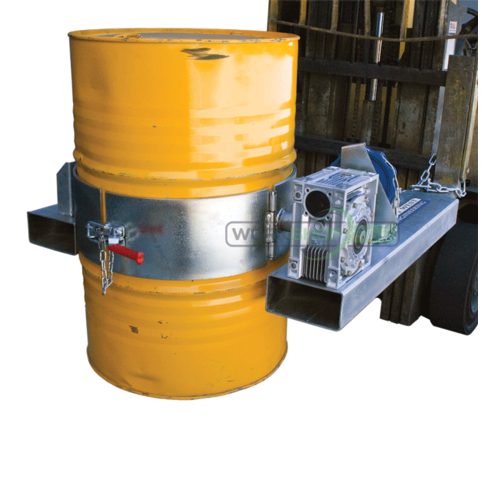

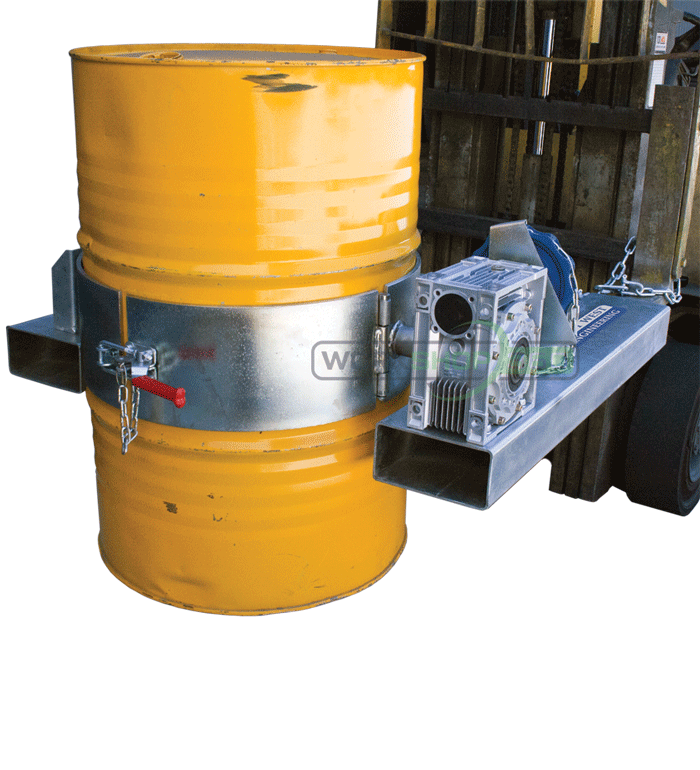

The DER40C Drum Rotator is designed as a fast and economical solution to lift and rotate a 205 litre drum 360 degrees. Rotation of the drum is fully controlled via a large worm-drive gear box which locks the drum in position when operator stops pulling the hand chain, preventing dangerous and uncontrolled movements.

FEATURES:

  • Empties a standard 205 litre drums with minimal effort
  • Suitable for drum rotation up to 3m above ground
  • Rotation carried out via a hand chain
  • Belly strap and eccentric lock secures drum in position
  • Locking pin prevents accidental release
  • Slip-on attachment allows quick connection to a forklift
  • Can be coupled with the PBO Plastic Barrel Option
  • Zinc finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

SPECIFICATIONS:

 Model



  Rotation



Working
  Load Limit
(kg)
  Fork Pocket
Size
(mm)
  Fork Pocket
Centres
(mm)
Load
  Centres
 (mm)
Unit
  Weight
 (kg)
 DER40C 360° 400 185 x 60mm 840 940 90
   DER40C-PBO    360° 350 185 x 60mm 840 940 100

 ---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(DER40C)

SKU DER40C
Brand East West Engineering
Shipping Weight 186.0000kg
Shipping Width 1.200m
Shipping Height 0.400m
Shipping Length 1.340m
Shipping Cubic 0.557000000m3
