Donaghys Winchline Rope - 12mm

SKU: D4BRS12WAM

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 2 Minimum Order Quantity 2

Calculate Shipping

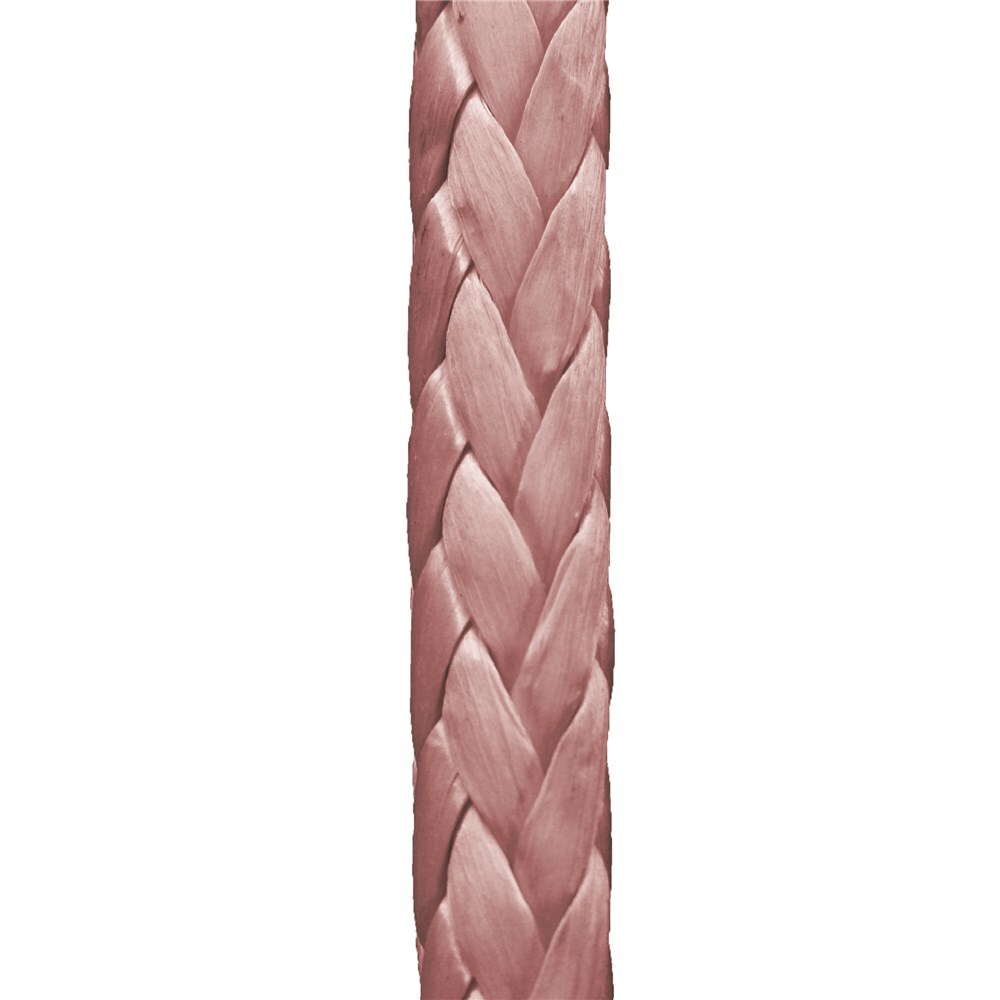

Donaghys winchline is made from high strength UHMwPE (Ultra high molecular weight polyethylene) fibres which have a very low elongation of 4% at break, and a tenacity of up to 15 times that of steel rope.

This winchline is 8 times lighter and 70% stronger than steel wire rope. Coated with Donaghys Armorcoat, this winchline rope braid has high abrasion resistance and can be customised with covers and fittings to suit specific applications. Its very light density allows the rope to float and it is very easy to handle in comparison to wire alternatives.

Product Features:

  • Unique pink colour for safety
  • High UV resistance
  • Floats and does not absorb water
  • High internal and external abrasion resistance
  • Non rotational

Applications:

  • Vehicle rescule line or winchline
  • Logging
  • Towing line
  • Pulling/stringing lines
Diameter Break Force Max Length kg/100m
9mm 9.7t 1025m 4kg/100m
12mm 17.5t 3050m 7.8kg/100m
14mm 21.2t 2250m 10.5kg/100m
16mm 26t 1720m 12kg/100m
18mm 33t 1360m 17kg/100m
20mm 38.8t 1100m 20kg/100m
22mm 47t 904m 25kg/100m
24mm 55t 760m 29kg/100m
26mm 64.5t 650m 34kg/100m
32mm 84.6t 1189m 52kg/100m
36mm 106t 939m 60kg/100m
44mm 157t 629m 81kg/100m

(D4BRS12WAM)

SKU D4BRS12WAM
Brand Beaver Brands
Shipping Weight 4.5000kg
Shipping Width 0.300m
Shipping Height 0.200m
Shipping Length 0.300m
