Crane Drum Rotator (PBO) 350kg WLL - 360 Degree Rotation

SKU: DBR40H-PBO

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

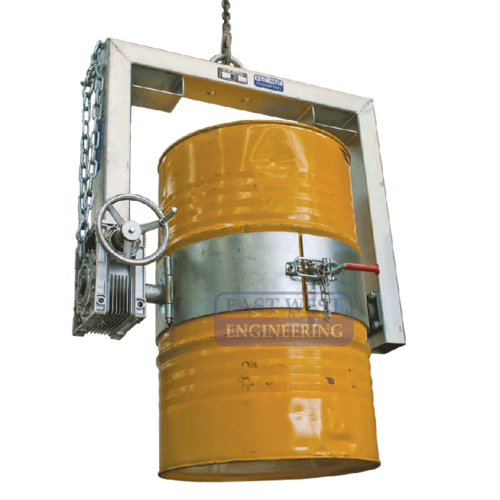

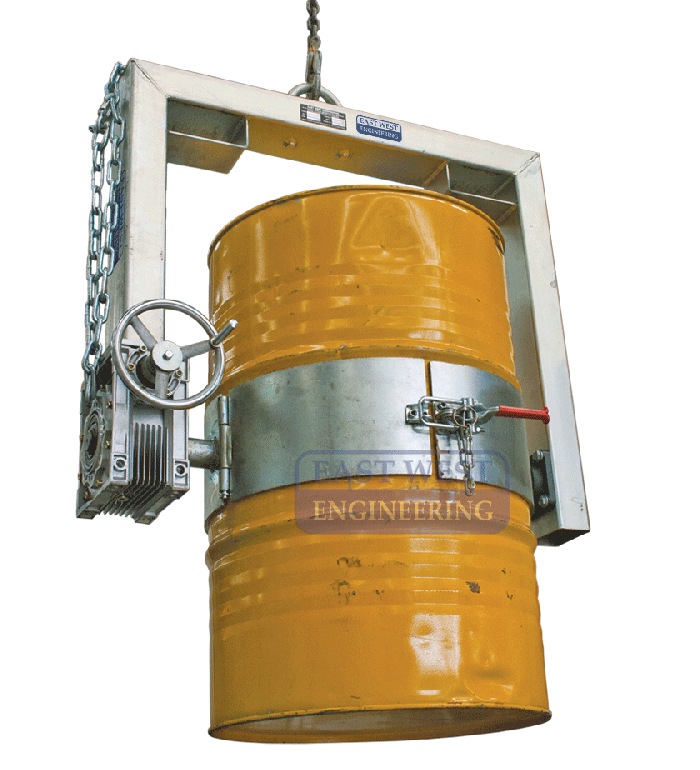

The DBR40H Drum Rotator is designed to lift and rotate a 205 litre steel drum 360° by overhead crane or forklift. Rotation of the drum is controlled throughout the operation by the handle driven gearbox which locks the drum in position when the operator stops turning the handle, preventing dangerous and uncontrolled movements.

FEATURES:

  • Empties a standard 205 litre drums with minimal effort
  • For use with either overhead crane of forklift
  • Suitable for drum rotation up to chest height
  • Rotation carried out via a hand wheel
  • Belly strap and eccentric lock secures drum in position
  • Locking pin prevents accidental release during tipping cycle
  • Large worm drive gearbox provides automatic braking
  • Can be coupled with the PBO Plastic Barrel Option
  • Zinc finish

Plastic Barrel Option (PBO):
By replacing the standard belly strap, the PBO option allows for plastic drums and barrels, as well as standard steel drums to be handled. The dual woven and chain combination belly straps hold the drum or barrel firmly in position.  The PBO option is suitable for a maximum load of 350kg

SPECIFICATIONS:

 Model



Working
   Load Limit
(kg)
   Rotation



Rotation
    Shaft CL to
Lifting Eye
    Fork Pocket
Size
(mm)
   Fork Pocket
Centres
(mm)
Unit
    Weight
 (kg)
 DBR40H 400 360° 810mm 160 x 65mm 615 70
    DBR40H-PBO     350 360°   160 x 65mm 615 80

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(DBR40H-PBO)

SKU DBR40H-PBO
Brand East West Engineering
Shipping Weight 260.0000kg
Shipping Width 1.200m
Shipping Height 0.450m
Shipping Length 1.350m
