Concrete Mould Stacking Kit - 199 x 230 x 85mm

SKU: CMHX90-SK

POA

Share:
  • Dispatch in: 7-10 days


Calculate Shipping

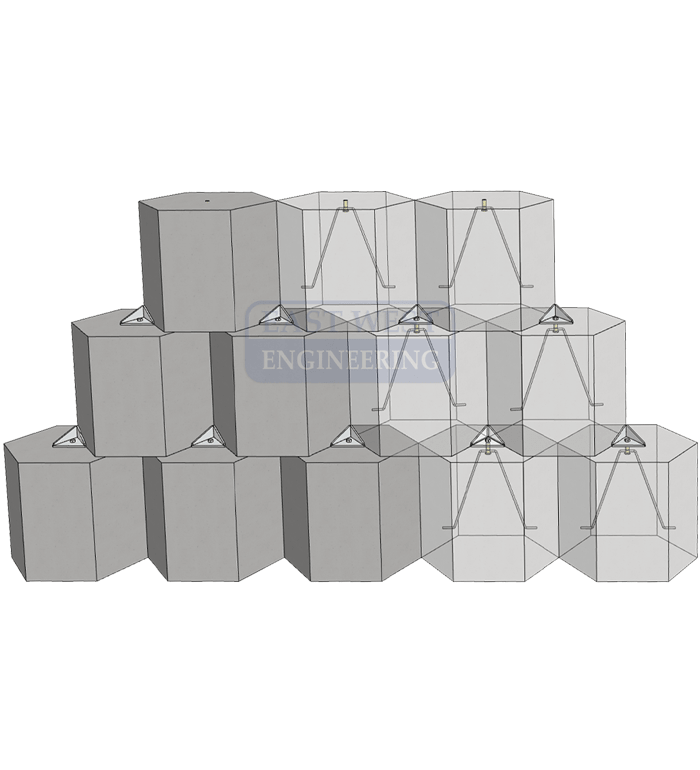

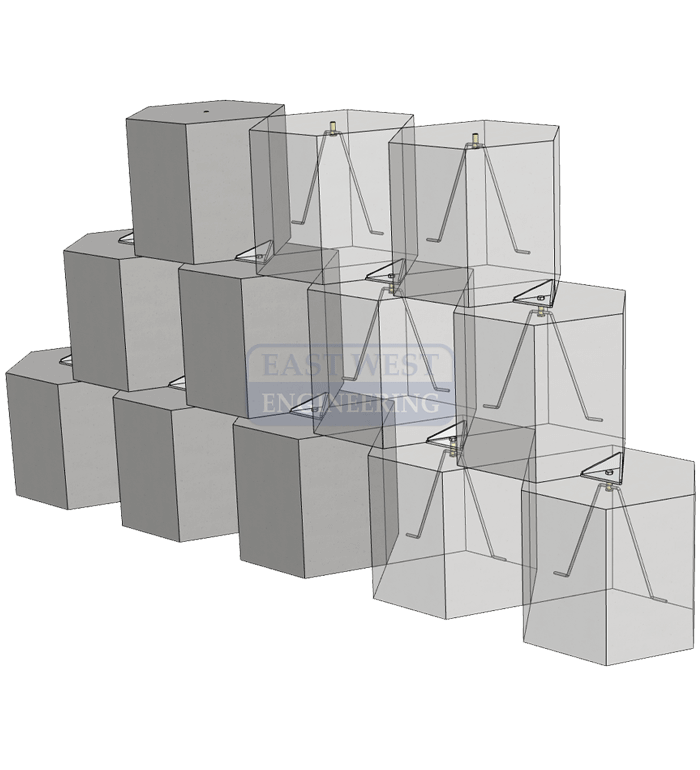

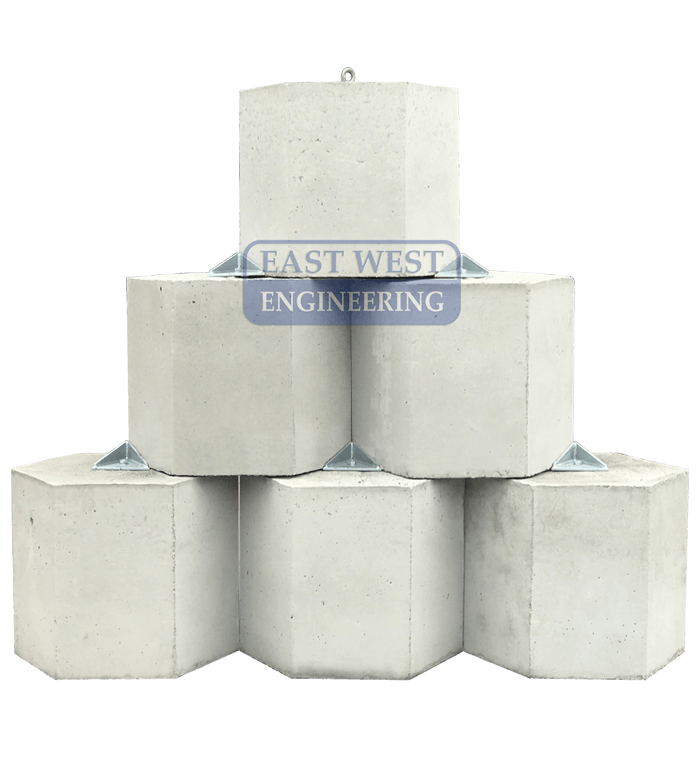

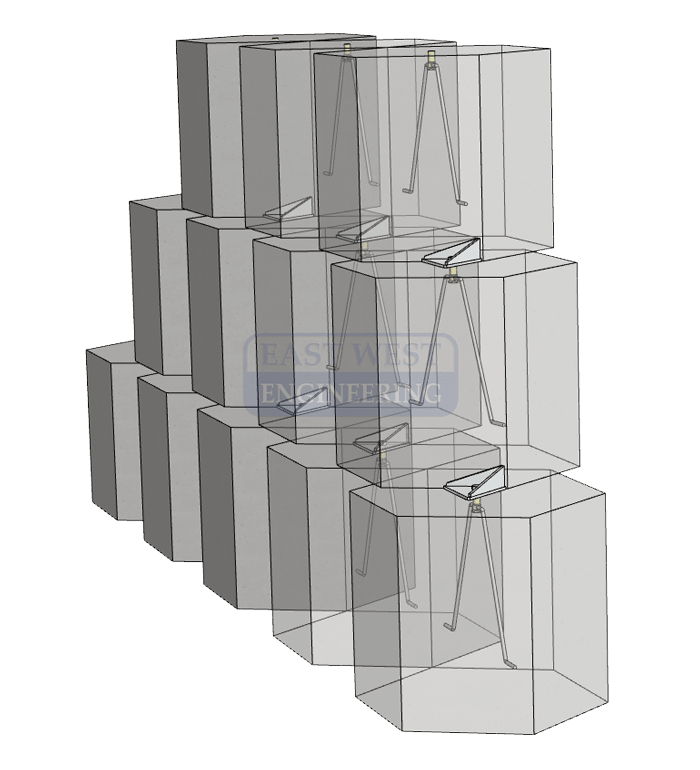

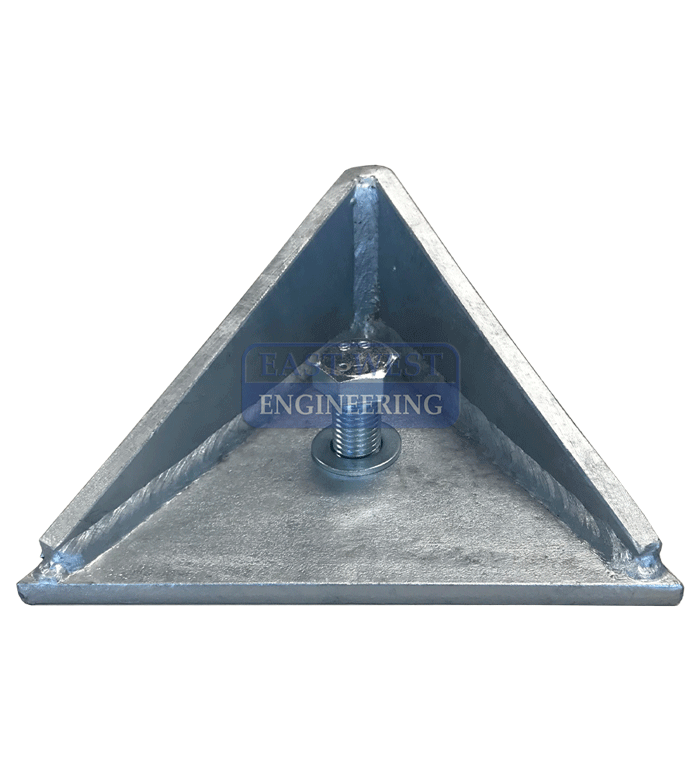

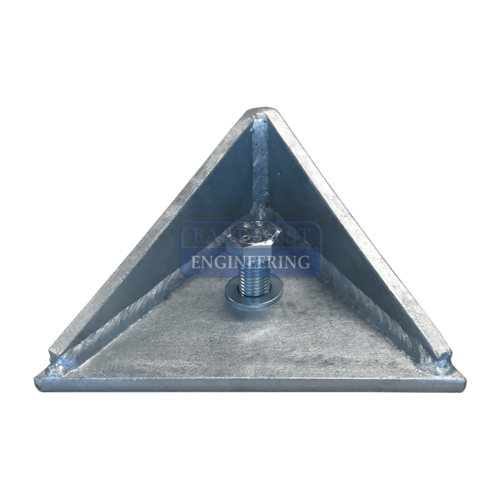

The CMHX90-SK Stacking Kit provides controlled spacing of the concrete blocks casted by CMHX90 Concrete Mould. Stacked concrete blocks will form a 9 inclined wall with 120mm set-back of each of the layers from its bottom one. The concrete blocks need to be fitted with a CMHX90-FK Ferrule Kit which provide a thread for mounting the spacing kit. The kit include an M20 bolt to be fastened against the thread of the CMHX90-FK Ferrule Kit.

FEATURES:

  • For use with CMHX90 Concrete Mould
  • Allows stacking of concrete blocks into an inclined wall with 120mm set-back
  • M20 bolt supplied

SPECIFICATIONS:

 Dimensions            199(l) x 230(w) x 85(h) mm
 Unit Weight  3kg



(CMHX90-SK)

SKU CMHX90-SK
Brand East West Engineering
Shipping Weight 3.0000kg
Shipping Width 0.220m
Shipping Height 0.090m
Shipping Length 0.230m
