Big Haul Winch - 0.85t

SKU: 518508

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 1 Minimum Order Quantity 1

Calculate Shipping

Beaver Bighaul Wire Rope Hoists

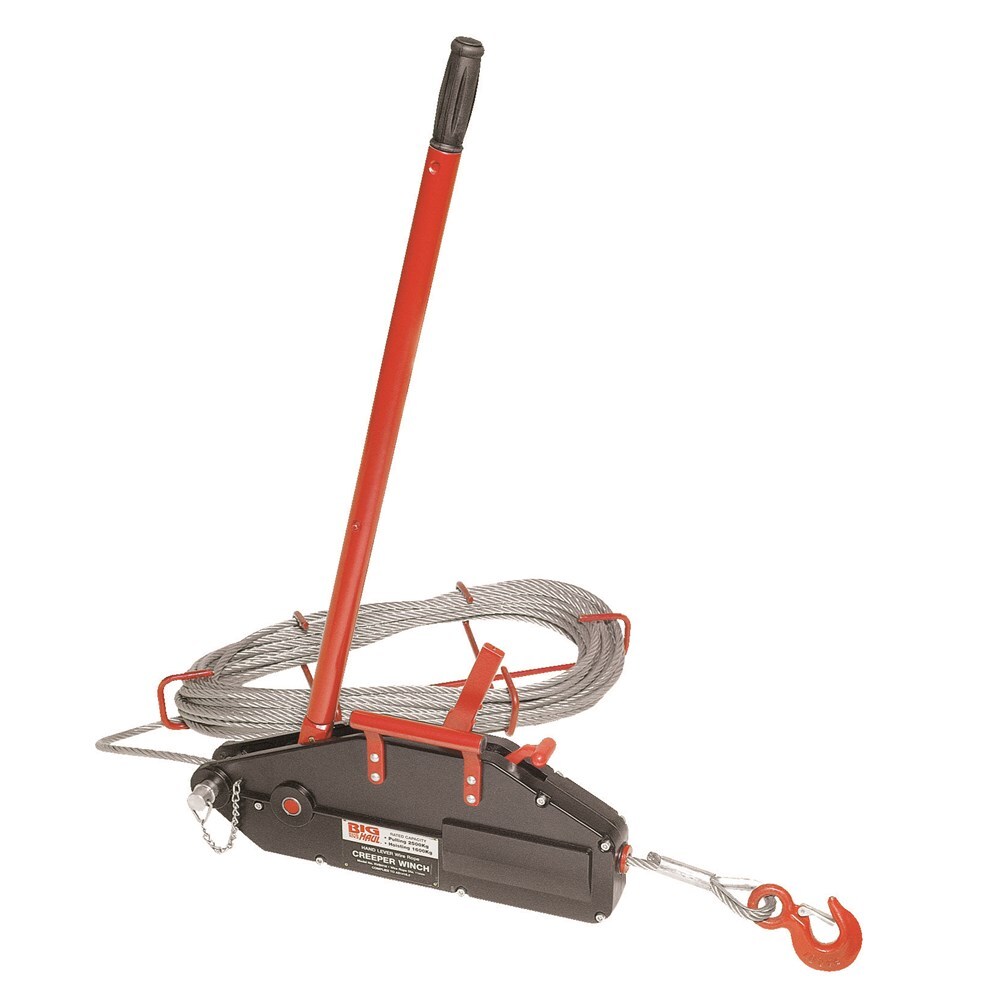

A versatile, portable, and compact creeper winch for pulling, lifting, lowering, spanning, 4WD recovering, and securing loads over large distances. The Bighaul creeper winch comes complete with an operating lever, and 20m of wire rope mounted on a reel for all models. The wire rope is fitted with a safety latch hook at one end and is tapered at the other end for wasy insertion into the unit.

Specifications:

 Product Code   518508     518532
 Rated Lifting Capacity 0.8t 3.2t
 Rated Pulling Capacity 1.25t 5t
 Wire Rope Diameter 8.3mm 16mm
 Std Rope Length 20m 20m
 Rope Advanced per Full Stroke Cycle 60mm 40mm
 Effot on Handling at Rated Lifting Capacity; Forward Operation    284kN 441kN
 Nett Weight 7.5kg 13kg


This model complies to AS 1418.2 and comes with an overload protection system built in, with a shear pin in the forward lever, which will shear when approximately 25% overloaded. These winches are tested and have individual serial numbers for easy traceability to a test certificate.


  Product Code     Rated Lifting Capacity   A B C D E F
518508 0.8t   430mm     165mm     230mm   60mm   800mm   -
518532 3.2t 660mm 220mm 330mm   110mm   790mm 1200mm

---

Please note: this item may incur additional shipping fee’s when shipped to a residential address. Please refer to our shipping policy for more information.



(5185080)

SKU 5185080
Brand Beaver Brands
Shipping Weight 31.2500kg
Shipping Width 0.500m
Shipping Height 0.500m
Shipping Length 0.500m
