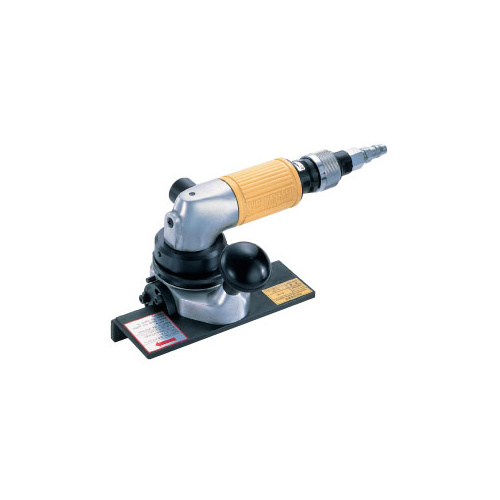

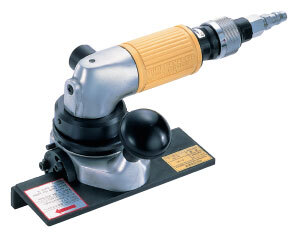

Stainless Steel Mini Beveller (Model AMB-0307)

SKU: NTAMB0307

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping
Description

           NOW A SMALL AIR BEVELER DOES THE BIG JOBS, TOO
Features

  • Application to stainless steel and mild steel beveling
  • Bevels up to 7mm C mild steel, 3mm C in stainless steel
  • Radius beveling up to 4mm (R4)
  • Beveling angle can be adjusted from 15 Deg. to 45 Deg.
  • Simple to adjust beveling depth
  • Super solid inserts with 4-sided blade
  • Pipe outer edge can also be processed with standard accessories
Applications

  • For Steel and Stainless Steel beveling
Standard Accessories

  • 3mm / 4mm Hex Socket Screw Key : Each 1 pc.
  • 8mm x 25mm Hex Socket Set Screw for Pipe Beveling minimum of 200mm diameter: 2 pcs.
  • 4mm x 7mm Insert Set Screw : 1 pc.
  • Hex Nut M8 : 2 pcs.
Optional Accessories

  • TA9A896 : insert 12.7 with hole Ass'y : 10 pcs. per set
  • TB01159 : Insert 12.7 with hole Ass'y : 10 pcs. per set
  • TB01791 : Insert 12.7 Ass'y R2 : 10 pcs. per set
  • TB01651 : Insert 12.7 Ass'y R3 : 10 pcs. per set
  • TB01790 : Insert 12.7 Ass'y R4 : 10 pcs. per set
  • TB02539 : Attachment for small dia. pipe : 1 set (80mm to 200mm diameter)
  • TQ01683 : Spanner T-15D : 1 pc.
  •
Model AMB-0307
Rated Air Pressure 6 psi
Air Consumption (no Load) 0.9 cfm
No Load Speed 14,000 rpm
Chamfer Capacity Mild Steel OC~7C, 2R, 3R, 4R
Chamfer Capacity Stainless Steel OC~3C, 2R, 3R, 4R
Chamfer Angle 15 Deg. - 45 Deg.
Mass (Weight) 2.9 kg

(NTAMB0307)

SKU NTAMB0307
Barcode # 9340000000000
Brand Nitto
Shipping Weight 2.9000kg
