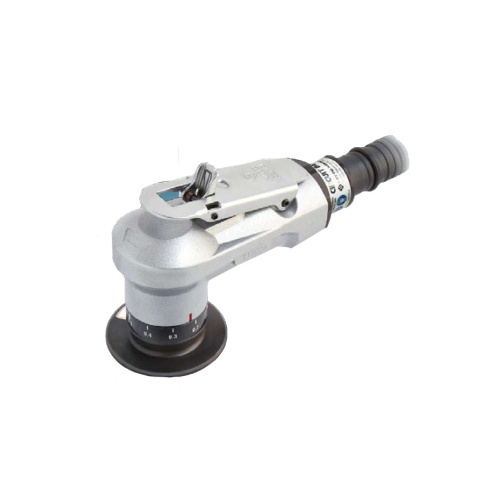

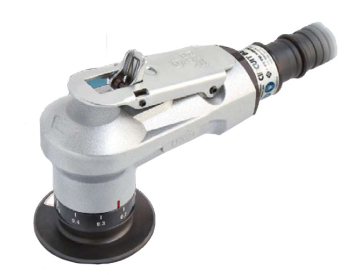

Nitto Circuit Beveller - Pneumatic Chamfering Tool (Model CB-01)

SKU: NTCB01

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping
Description

           Ideally suited for chamfering machine and mold component parts.
Features

  • Bevels 0-1mm C 45 degrees
  • Bevels either inner or outer edges
  • Chamfers down to 6.8mm diameter holes
  • Indexable inserts 2pcs
  • Minimum plate thickness 1.5mm
Applications

  • General steel bevelling
Standard Accessories

  • Indexable insert : 2 pcs (installed)
  • Indexable insert set screw : 2 pcs (installed)
  • Indexable insert set screw : 2 pcs (a back up supply)
  • Hex key 2 for chamfering adjustmants ; 1 pc
  • T-6F wrench for cutter set screw : 1 pc
  • Bushing R 1/4 x NPT 1/4 : 1pc
Optional Accessories

  • TB09097-0 Indexable insert (10pcs/set)
  • TB09140-0 Guide plate 78 Assembly
  • TB09143-0 Plate Assembly for straight edge use
    *Requires use of TB09140-0 Guide Plate 78 Assembly*
  •
Model CB-01
Rated Air Pressure 90 psi
Air Consumption (no Load) 0.15m3/min
No Load Speed 28,000prm
Chamfer Capacity Mild Steel 0C - 1C 2R
Chamfer Angle 45 Deg
Weight 0.5 Kg

(NTCB01)

SKU NTCB01
Barcode # 9340000000000
Brand Nitto
Shipping Weight 0.5000kg
