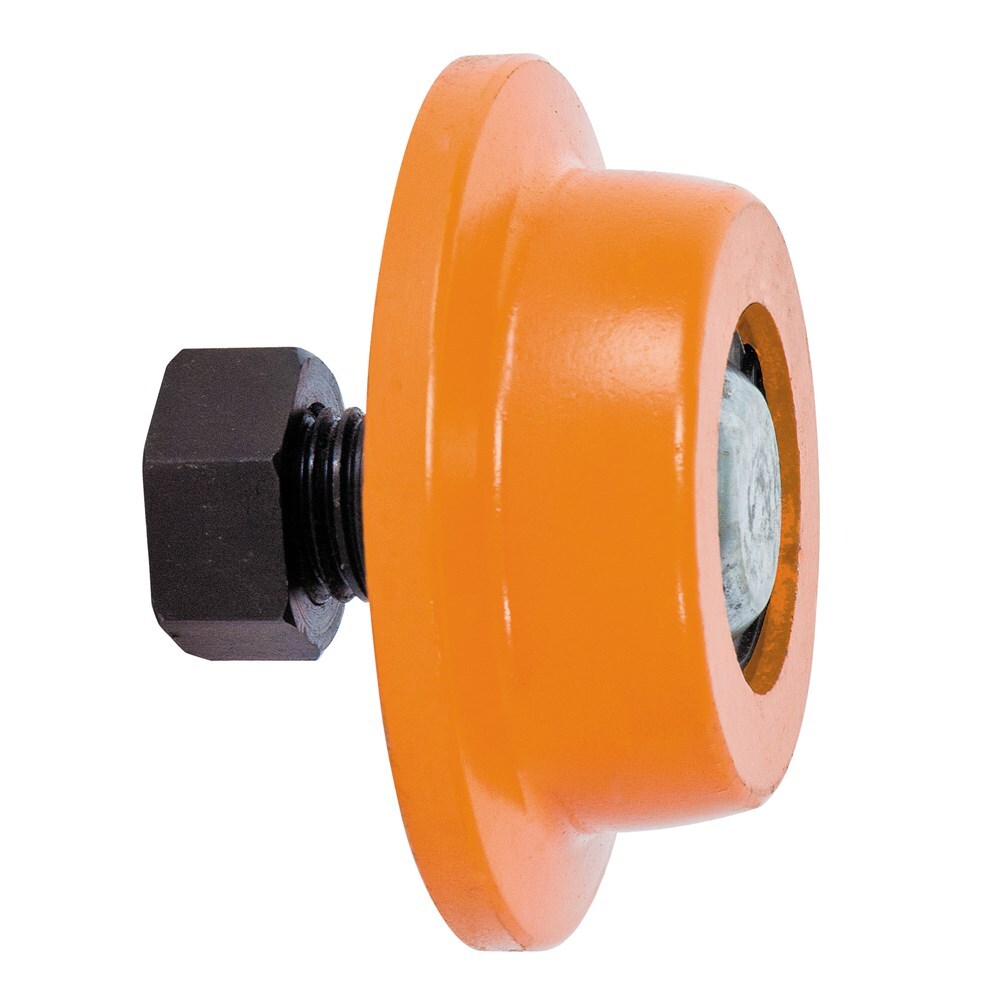

Plain Trolley Wheel - 0.5t WLL

SKU: 525005S

POA

Share:
  • Dispatch in: 3-4 days


Calculate Shipping

Beaver Single Flange Steel Plain Trolley Wheels are ideally suited for general machinery production, crane building, platforms, carriages and rail systems. They are available in capacities ranging from 5kg to 10 tonnes, and compatible with both parallel and tapered flanges.

Features:

  • Precision ball bearing trolley wheels
  • Steel construction
  • Created to fit Beaver Push and Geared Girder Trolleys

Technical Specifications:

Product Code WLL L H i S d1 M D P G W Weight
525005S 0.5t 52.5mm 27mm 23mm 6mm 24mm 16mm 55mm 79mm 16mm 17.6mm 1.8kg
525010S 1t 60mm 30mm 27mm 8mm 27mm 18mm 68mm 95mm 19mm 20.6mm 2kg
525020S 2t 72mm 34mm 34mm 10mm 35mm 24mm 80mm 108mm 25mm 27mm 2.8kg
525030S 3t 83mm 39mm 41mm 12mm 42mm 30mm 100mm 131mm 35mm 32mm 4kg
525050S 5t 102mm 50mm 49mm 16mm 45mm 36mm 110mm 144mm 35mm 38.5mm 4.8kg
525100S 10t 129.5mm 58mm 68mm 30mm 60mm 42mm 136mm 176mm 48mm 52mm 6.2kg



Do you require more information? Talk to our customer service team via our chat feature or contact us form. Alternatively, feel free to get in touch over the phone on 1300 378 900.
