Lifting Collard Eyebolt w/ UNC Thread (2.5t WLL) - 1in

SKU: 360025

POA

Share:
  • Dispatch in: 3-4 days

Order In Lots Of 5 Minimum Order Quantity 5

Calculate Shipping

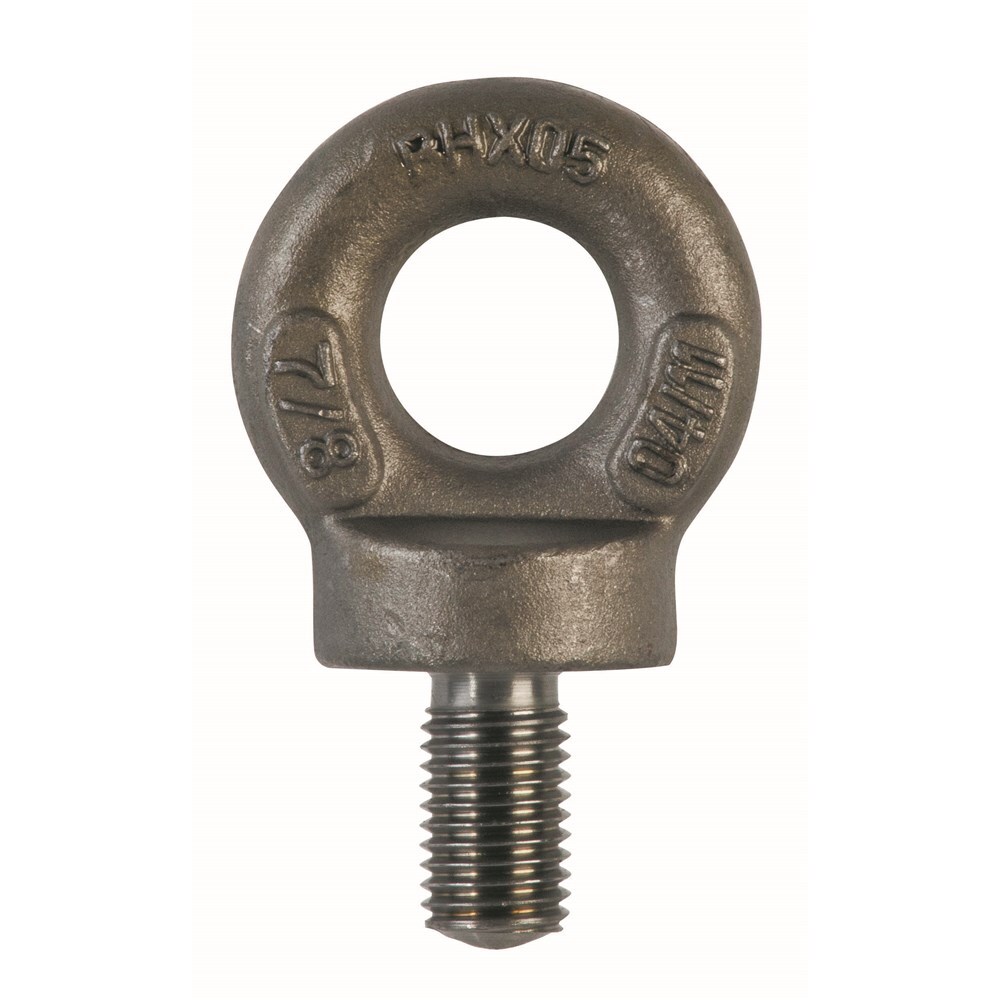

Beaver lifting eyebolts and eyenuts come in a range of threads, including BSW, UNC, and Metric, and are predominately used for lifting applications. This collared eyebolt complies to AS 2317.


Product Code Thread Size WLL Transverse Load Tonne Finish Weight
360010 3/8" 0.25t 0/06 Self Colour 0.06kg
360012 1/2" 0.4t 0.1 Self Colour 0.15kg
360016 5/8" 0.8t 0.2 Self Colour 0.27kg
360019 3/4" 1.4t 0.3 Self Colour 0.54kg
360022 7/8" 2t 0.5 Self Colour 0.85kg
360025 1" 2.5t 0.62 Self Colour 1.13kg
360032 1-1/4" 5t 1.25 Self Colour 2.37kg
360038 1-1/42" 7t 1.75 Self Colour 3.12kg


It is recommended that all eyebolts used for lifting be of forged steel, and be equipped with shoulders, or collars. The plain or shouderless eyebolt is fine for vertical loading but as soon as it is loaded at an angle it is subjected to bending and the load it can safely carry is reduced.


Product Code Thread Size W H1 H2 D1 D2 D3 D4
360010 3/8" 33 9 36 15 9.53 9 22
360012 1/2" 44 11 48 2 12.7 11 28
360016 5/8" 52 14 58 24 15.88 14 36
360019 3/4" 66 17 73 3 19.05 18 45
360022 7/8" 77 20 84 35 22.23 21 52
360025 1" 85 22 94 39 25.4 23 58
360032 1-1/4" 106 28 117 48 31.75 29 72
360038 1-1/2" 118 33 131 54 38.1 32 81

(360025)

SKU 360025
Brand Beaver Brands
Shipping Weight 1.1300kg
Shipping Width 0.058m
Shipping Height 0.094m
Shipping Length 0.085m
